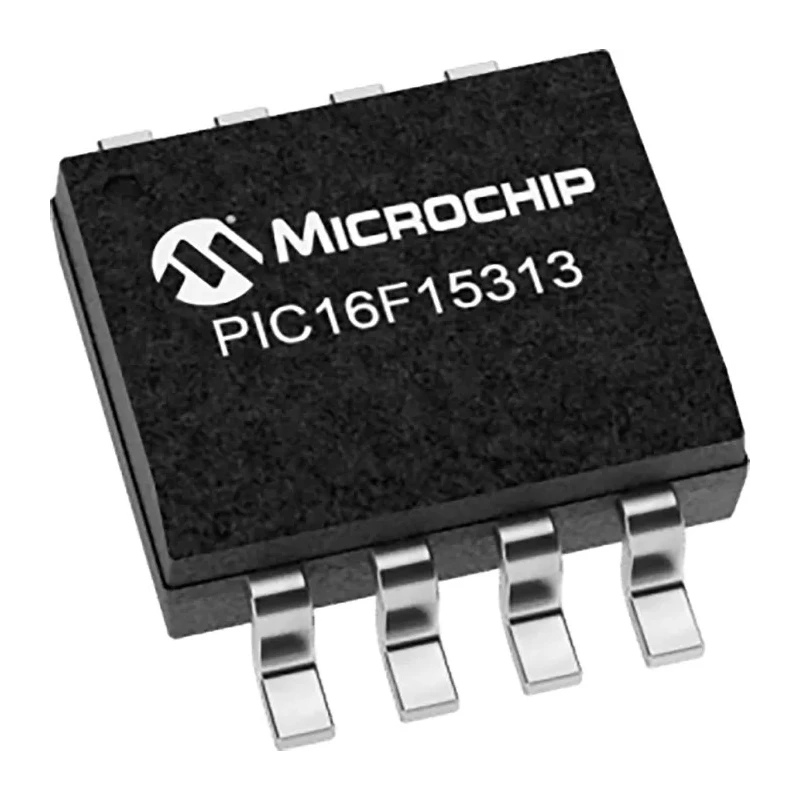

Microchip 8-bit PIC16F Microcontroller 3.5kB FLASH, 32 MHz, 8-Pin SOIC PIC16F15313-I/SN

Microchip PIC16F15313-I/SN is an 8-bit PIC microcontroller designed for a wide range of low-power embedded applications. It features a 3.5kB FLASH program memory and operates at a maximum clock frequency of 32 MHz. Packaged in an 8-pin SOIC form factor, it offers a compact solution ideal for space-constrained designs.

The microcontroller integrates an enhanced mid-range core architecture with 49 instruction sets and maintains 16 stack levels, offering efficient processing power while supporting eXtreme Low-Power (XLP) operating modes such as IDLE and DOZE. This enables significant power savings in battery-operated or energy-sensitive applications.

For versatile interfacing, the PIC16F15313-I/SN provides multiple communication protocols including SPI, I2C, and EUSART, alongside 6 programmable I/O pins. Analog features include a 24 channel 10-bit analog-to-digital converter (ADC) with voltage reference and a 5-bit digital-to-analog converter (DAC), enabling mixed signal designs.

The device supports various peripheral modules such as complementary waveform generator, numerically controlled oscillator, 4 configurable logic controllers, and provides 2 timers (one 8-bit and two 16-bit timers) to cater to timing and waveform generation needs. It also includes 1 analog comparator and operates across a wide temperature range from -40°C to 85°C and voltage range from 2.3V to 5.5V.

Designed with automotive compliance through AEC-Q100 certification and RoHS adherence, this microcontroller is reliable and environmentally friendly. The compact SOIC package measures 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height, making it ideal for embedded system integration.

Ideal usage scenarios include embedded control, sensor interfaces, automotive electronics, industrial automation, and low-power portable devices. It supports in-circuit serial programming (ICSP) allowing efficient and flexible firmware updates.

Utilizes an enhanced mid-range core with 49 instructions and 16 stack levels. Includes eXtreme Low-Power (XLP) modes such as IDLE and DOZE for efficient energy consumption. Equipped with 6 programmable I/O pins and multiple communication interfaces including SPI, I2C, and EUSART.

Features a 24 channel 10-bit ADC with voltage reference and 1 x 5-bit DAC for versatile analog functionality. Operates on a voltage range of 2.3V to 5.5V, suitable for low power embedded applications. Complies with RoHS standards and automotive AEC-Q100 qualification for reliability.

Dimensions optimized at 4.9mm length, 3.9mm width, and 1.5mm height in SOIC package. Supports 2 timers and has an operating temperature range from -40°C to 85°C. Peripheral support includes complementary waveform generator, numerically controlled oscillator, and configurable logic controller.

Facilitates in-circuit serial programming (ICSP) for flexible development processes. Explore and source Microchip Microcontrollers and embedded system components at EnvMart for your industrial, automotive, and commercial applications.
