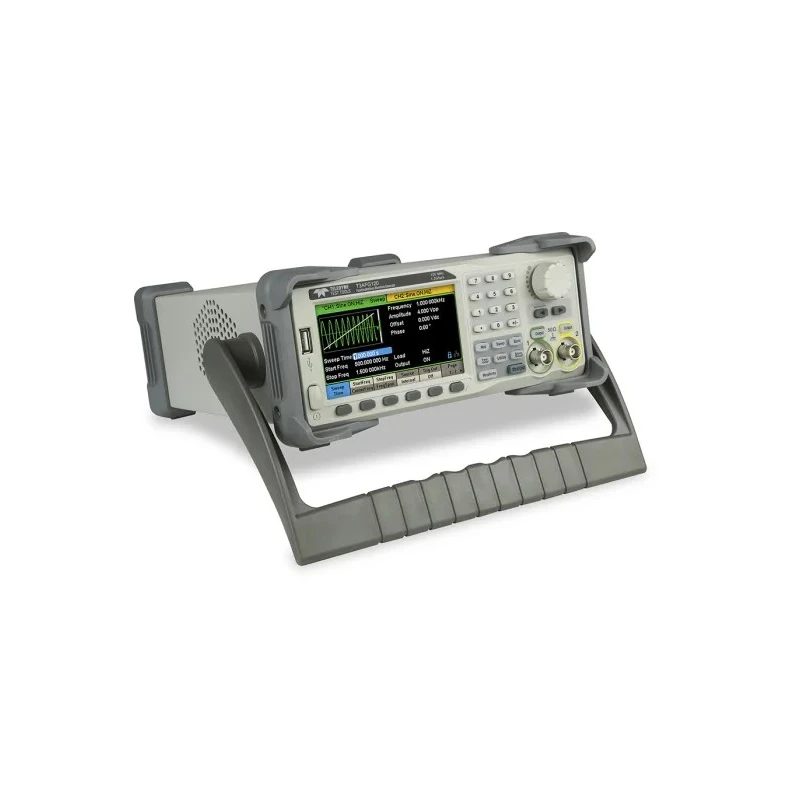

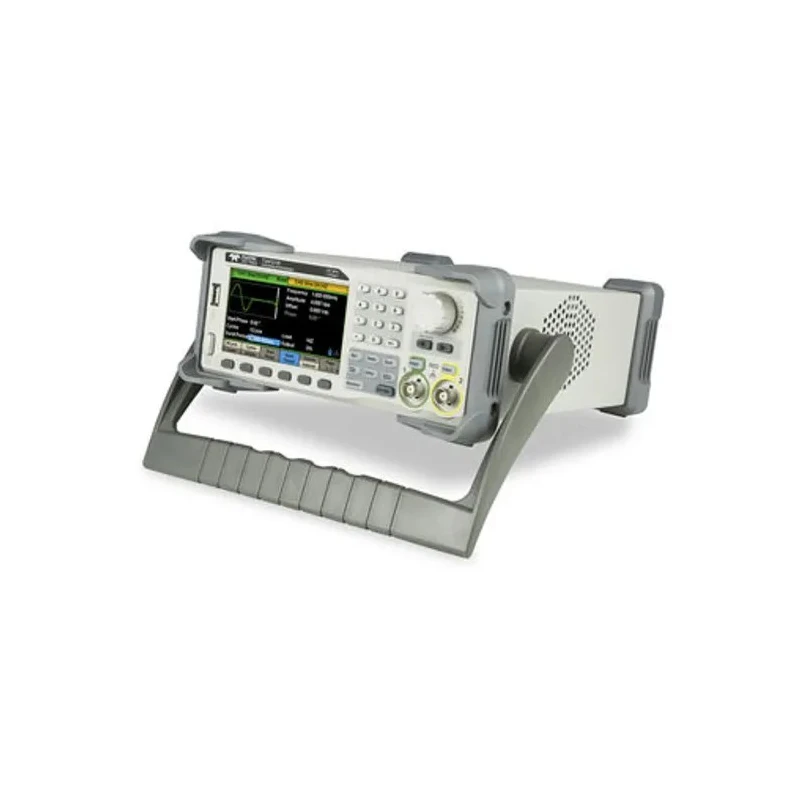

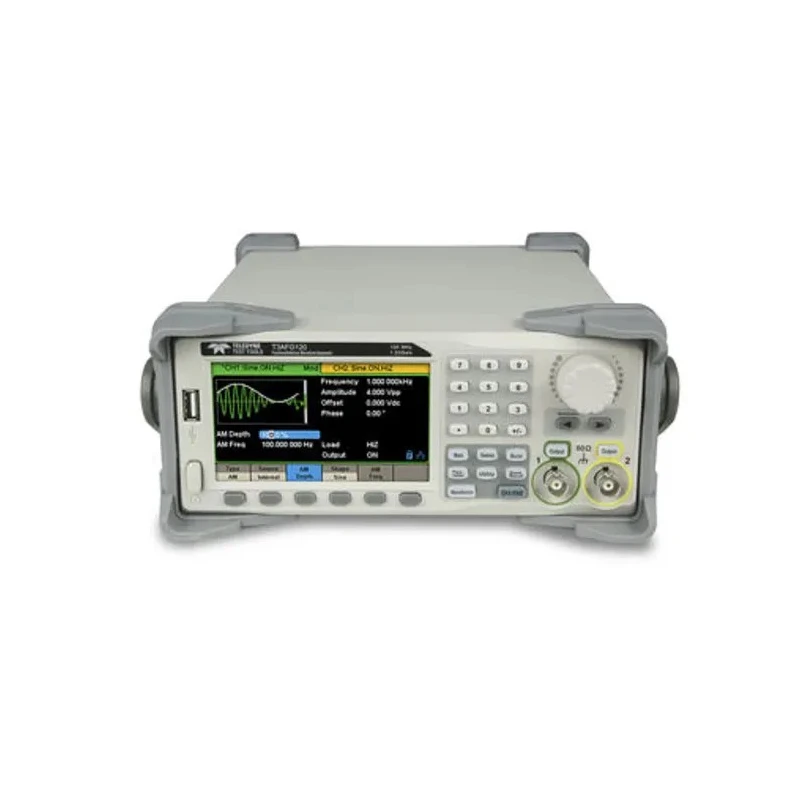

Teledyne LeCroy Waveform Generator 80 MHz Max, 2-Channel, 1 Hz Min T3AFG80
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 1 μHz |
| Display Type | LCD |
| Display | 4.3" Display |
| Brand | Teledyne LeCroy |
| Height | 295.7mm |
| Length | 260.3mm |
| Model | T3AFG80 |
| Connector Type | USB |
| Gross Weight | 3.4kg |
| Width | 107.2mm |
| Sampling rate | 1 |
| Maximum Operating Temperature | 40°C |
| Inputs | Trigger, Gate |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB for mass storage |
| Number Of Channels | 2 |
| Sweep | Linear |
| Interface Type | USB Host, USB, LAN |
| Maximum Output Amplitude | 20V Pk-Pk |
| Maximum Frequency | 80MHz |
| Minimum Frequency | 1Hz |
| Maximum Frequency Triangle Ramps | 1MHz |
| Rise - Fall Time | 9ns |
| Teledyne LeCroy Waveform Generator 120 MHz Max, 2-Channel, 1 Hz MinBrand | Teledyne LeCroy |
| Maximum Pulse Train Repetition Rate | 13.3ns |
| Minimum Pulse Train Repetition Rate | 16.3ns |
| RS PRO Arbitrary Waveform Generator 80 MHz Max, 2-Channel, 1 Hz MinRS Stock No. | 123-6461Brand: RS PRO |
| RS PRO Arbitrary Waveform Generator 80 MHz Max, 2-Channel, 1 Hz MinBrand | RS PRO |
Key Features
- Maximum frequency of 80 MHz provides high-bandwidth signal outputs.
- Two independent output channels allow versatile waveform generation.
- Maximum sampling rate up to 1.2 Gigasamples per second supports complex waveforms.
- Waveform types include sine, square, triangle, ramps, arbitrary, and DC signals.
- Interfaces include USB host, USB device, and LAN for remote control and data transfer.
- Equipped with a bright 4.3 inch LCD for clear waveform visualization.
- Lightweight at 3.4 kg with compact dimensions suitable for laboratory benchtop use.
- Operating temperature range from 0°C to 40°C ensures stable performance in controlled environments.
Product Description
Teledyne LeCroy T3AFG80 Waveform Generator is a precision arbitrary and function generator designed for professional testing, development, and electronic debugging applications. With a maximum frequency capability of 80 MHz and two independent output channels, it provides high fidelity signal generation for diverse test and measurement needs.
This model features direct digital synthesis (DDS) technology, enabling high resolution and accuracy with frequency steps as fine as 1 μHz. The 1.2 GS/s maximum sampling rate supports complex waveform outputs including sine, square, triangle, triangle ramps, and arbitrary waveforms, which can be user-defined or built-in to the unit.
The T3AFG80 includes multiple interface options such as USB host for mass storage, USB device, and LAN connectivity for remote control and data transfer, making it ideal for integration into automated test systems.
Designed for ease of use, it includes a large 4.3 inch LCD display for intuitive control and precise waveform visualization. Its ergonomic handle functions as a stand, enhancing usability on the bench.
Its construction complies with international standards EN 613261:2006, EN 6100033:2008, EN 610101:2010, and EN 6100032:2006 + A2:2009 which attest to the unit's quality and reliability.
Maximum frequency of 80 MHz for signal generation. Two output channels for complex and simultaneous waveform outputs. High sampling rate of 1.2 GS/s for fidelity. Supports multiple waveform types including arbitrary waveforms.
USB and LAN interfaces for data communication and remote control. 1 μHz frequency resolution for precise frequency generation. Ergonomic handle also serves as a stand for flexible usage. Lightweight (3.4 kg) and compact dimensions (260.3 x 107.2 x 295.7 mm) suitable for laboratory use.
Operating temperature range 0°C to 40°C ensures stable operation. Complies with key international safety and performance standards.
This waveform generator is suitable for use in educational demonstrations, engineering, electronics design, debugging, and automotive electronics testing. Its advanced features and reliability make it an essential instrument in laboratories, manufacturing, and research facilities.
Explore our selection of precision test instruments and waveform generators on EnvMart to find compatible accessories and complementary equipment for your measurement needs.
Explore more products in our Electrical Test Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum frequency of the T3AFG80 waveform generator is 80 MHz.
This model features two independent output channels for versatile waveform generation.
The minimum frequency that this waveform generator can produce is 1 Hz.
The maximum sampling rate of the T3AFG80 is 1.2 Gigasamples per second.
It can generate sine, square, triangle, triangle ramps, arbitrary waveforms, and DC signals.
The T3AFG80 is equipped with a 4.3 inch LCD display for clear waveform visualization.
The dimensions of this model are 260.3 mm in length, 107.2 mm in width, and 295.7 mm in height.
This unit weighs 3.4 kg, making it lightweight and suitable for laboratory benchtop use.
The operating temperature range for this waveform generator is from 0°C to 40°C.
It includes USB host, USB device, and LAN interfaces for remote control and data transfer.
The frequency resolution of this model is 1 μHz, allowing for precise frequency generation.
It complies with international standards EN 613261:2006, EN 6100033:2008, EN 610101:2010, and EN 6100032:2006 + A2:2009.
