Honeywell Technologies 914CE Series Plunger Limit Switch SPDT IP66 IP67 IP68 Die Cast Zinc Housing 250V AC 914CE1-3A
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Honeywell |
| Length | 40mm |
| Model | 914CE1-3A |
| Depth | 44mm |
| IP Rating | IP66, IP67, IP68 |
| Width | 16mm |
| Housing Material | Die Cast Zinc |
| Series | 914CE |
| Maximum Operating Temperature | 105°C |
| Mounting Orientation | Side |
| Contact Configuration | SPDT |
| Actuator Type | Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | 0°C |
| Terminal type | Cable |
| Standards/Approvals | CE, CSA, cURus, EN, IEC, RoHS, UL |
| Operating Force | 12.2N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 30V |
| Switching AC Voltage | 250V ac |
| Type 2 | Allows for indoor use and provides a degree of protection against access to hazardous parts. The enclosures provide a degree of protection against foreign objects (such as falling dirt) and the ingress of water (light dripping or splashing) |
| Type 1 | Allows for indoor use and offers a dregree of protection against access to harzardous parts by personnel. Enclosures that meet NEMA 1 also protect the enclosure against foreign solid obkects(such as indoor dirt) |
Key Features
- The switch offers snap action contacts for accurate and repeatable switching.
- It withstands switching AC voltage up to 250V and DC voltage up to 30V.
- Mechanical life expectancy of 10 million operations ensures durability.
- Operating temperature ranges from 0°C to 105°C, suitable for industrial applications.
- Side mounting orientation with cable terminal type allows easy integration into systems.
- Provides excellent protection against dust, water spray, and immersion.
- Designed for conveyor end-of-travel, automated machinery, valve position feedback, and door monitoring in industrial enclosures.
- Compact design with depth 44mm, length 40mm, and width 16mm.
Product Description

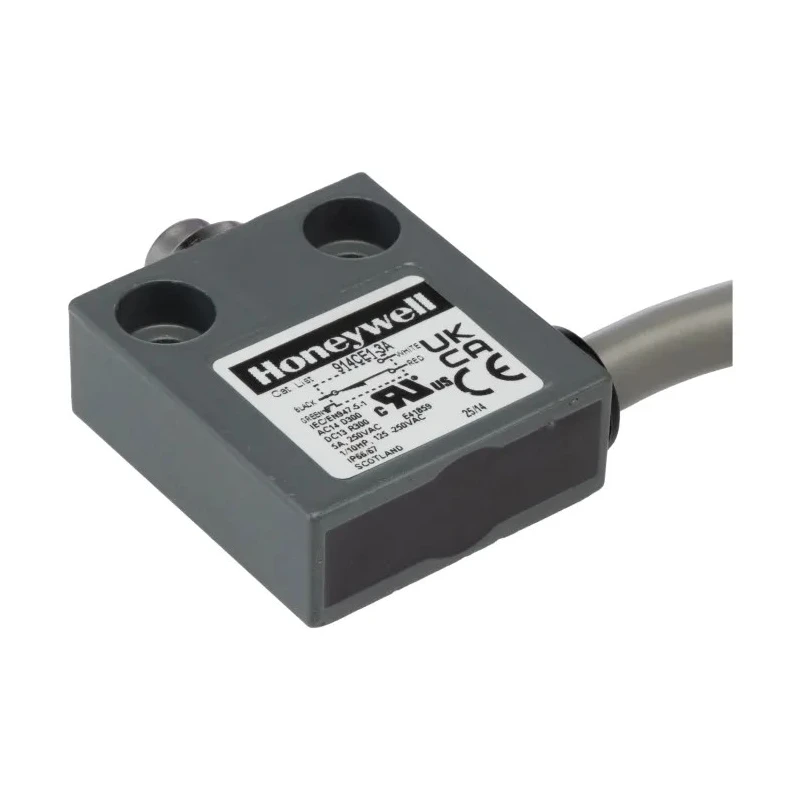

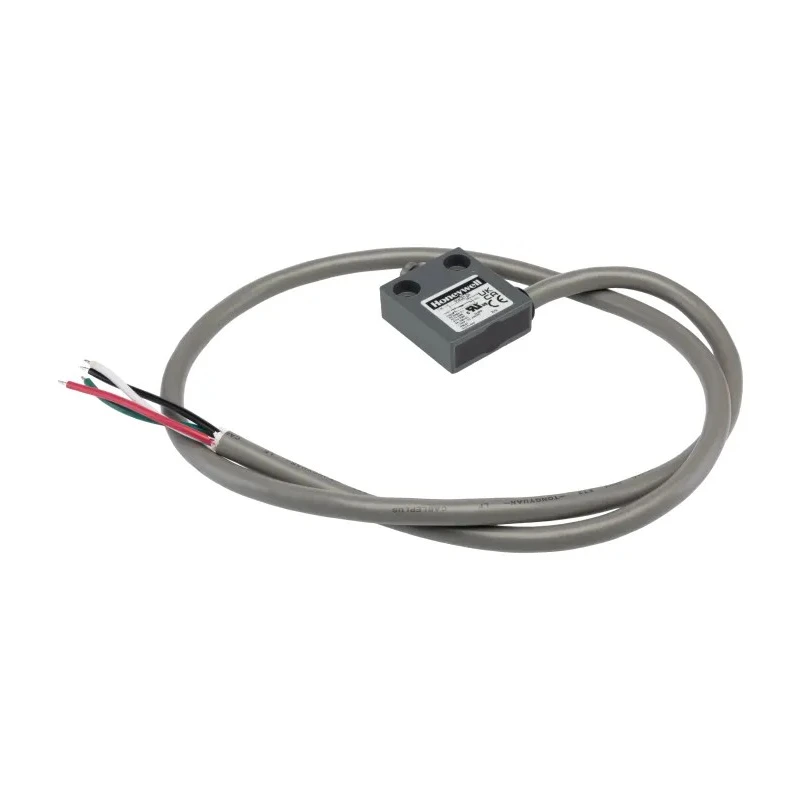

Honeywell 914CE1-3A plunger limit switch is a compact and rugged electromechanical device designed for position sensing and control in industrial automation systems. Featuring SPDT snap action contacts and housed in a die cast zinc enclosure, it offers IP66, IP67, and IP68 ingress protection, making it suited for use in harsh environments with dust, water spray, and temporary submersion.
The switch operates reliably across a temperature range of 0°C to 105°C and supports switching voltages up to 250V AC and 30V DC, making it compatible with a broad range of control circuits. Its long mechanical life of 10 million operations reduces maintenance requirements and improves system uptime.

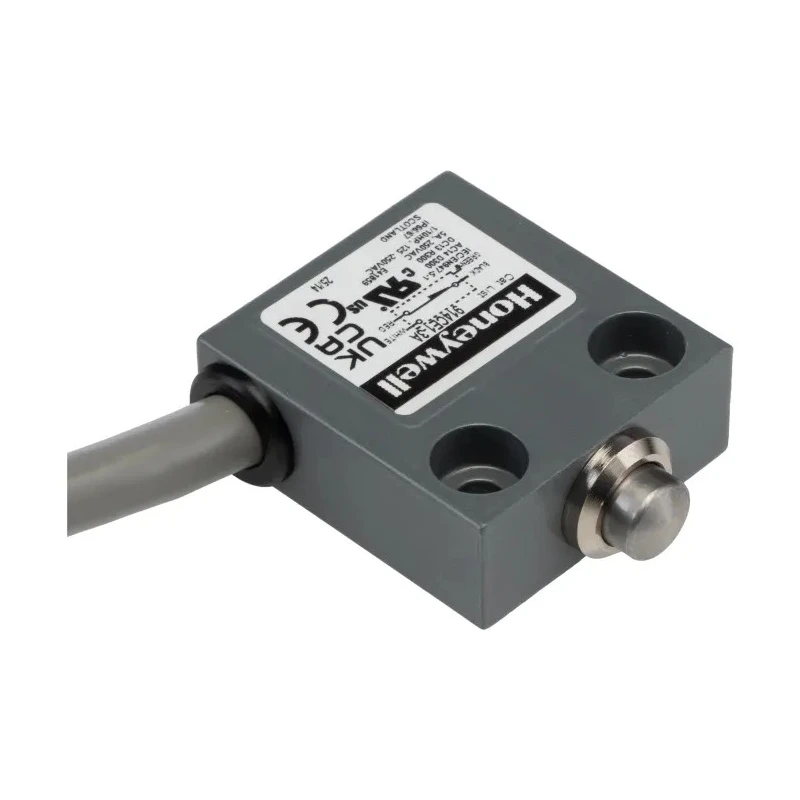

The robust plunger actuator requires a moderate operating force of 12.2N and supports side mounting orientation with cable terminal connections, enabling straightforward wiring into industrial panels and machinery.
Typical applications include conveyor end-of-travel detection in manufacturing lines, automated packaging machinery limit sensing, valve and actuator position feedback in process plants, industrial enclosure door monitoring, and simple control logic in switchgear panels.
The metal enclosure provides protection against harsh environmental factors including dust and water ingress according to IP66, IP67, and IP68 standards. Snap action contacts ensure crisp and reliable switching performance for safety and control operations.
The device supports a wide switching current range capable of handling varied electrical loads. High operating temperature tolerance enables use in heated industrial environments. Long mechanical life of 10 million operations enhances durability for repetitive actuation tasks.
Moderate operating force reliably activates the plunger actuator without excessive wear. Side mounting orientation and cable-type terminal simplify installation and integration.
Manufactured in the United Kingdom, the Honeywell 914CE1-3A limit switch complies with international standards including CE, CSA, cURus, EN, IEC, RoHS, and UL, ensuring quality and safety for industrial automation applications.
Explore more Limit Switch options and automation components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can handle a maximum switching voltage of 250V AC and 30V DC.
The operating temperature range is from 0°C to 105°C.
It features SPDT (Single Pole Double Throw) snap action contacts for reliable switching.
The dimensions are 40mm in length, 16mm in width, and 44mm in depth.
It has a mechanical life expectancy of 10 million operations.
The housing is made of die cast zinc, providing durability and protection.
It supports side mounting orientation, allowing for easy installation.
It complies with several standards including CE, CSA, cURus, EN, IEC, RoHS, and UL.
The required operating force is 12.2N.
This model has an IP66, IP67, and IP68 rating, offering protection against dust, water spray, and temporary immersion.
Typical applications include conveyor end-of-travel detection, automated machinery limit sensing, and valve position feedback.

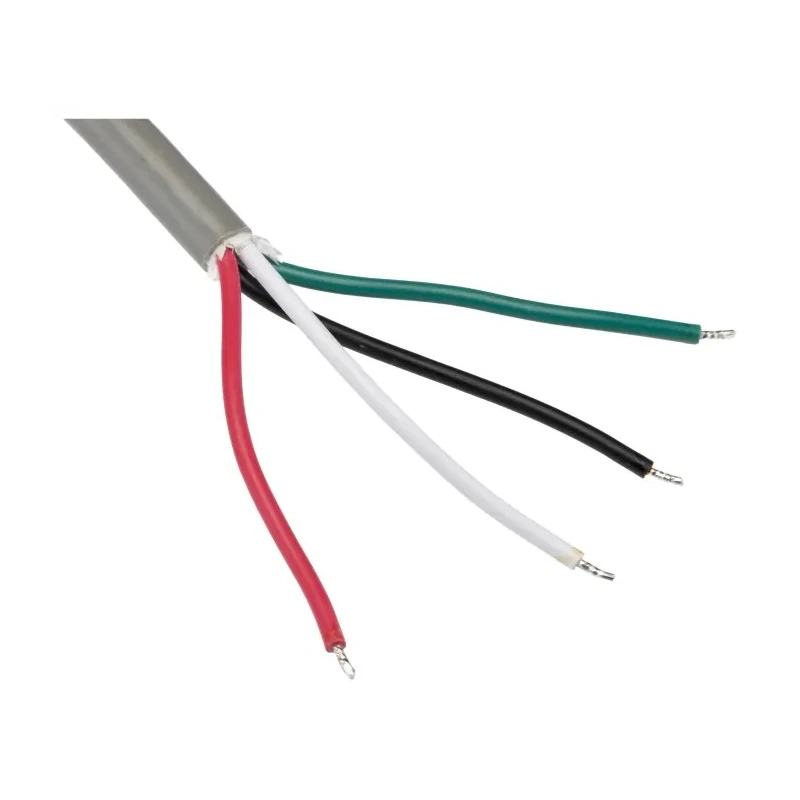

It uses cable terminal connections for straightforward wiring integration.
