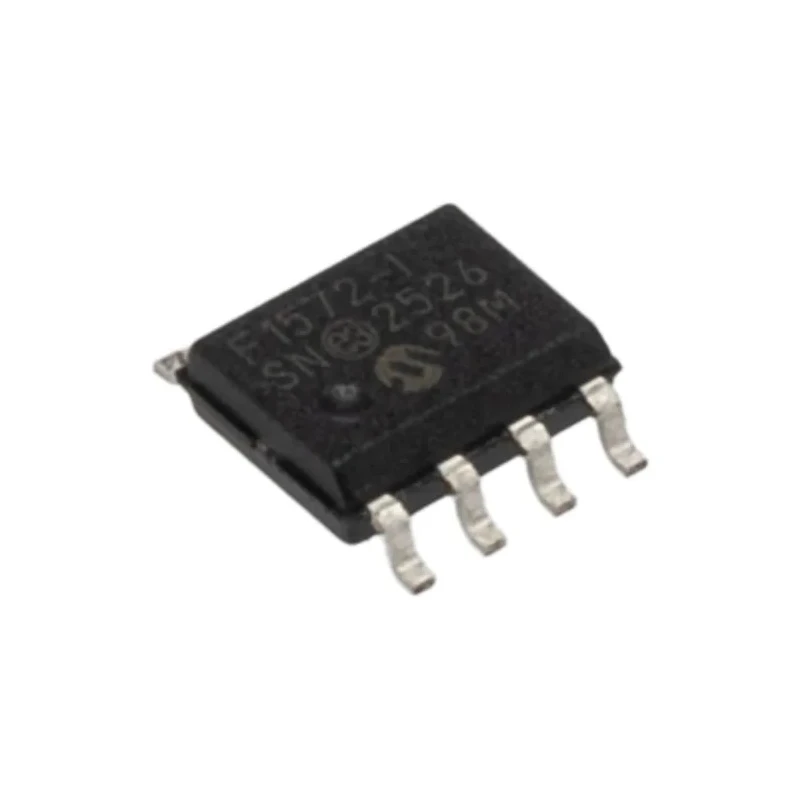

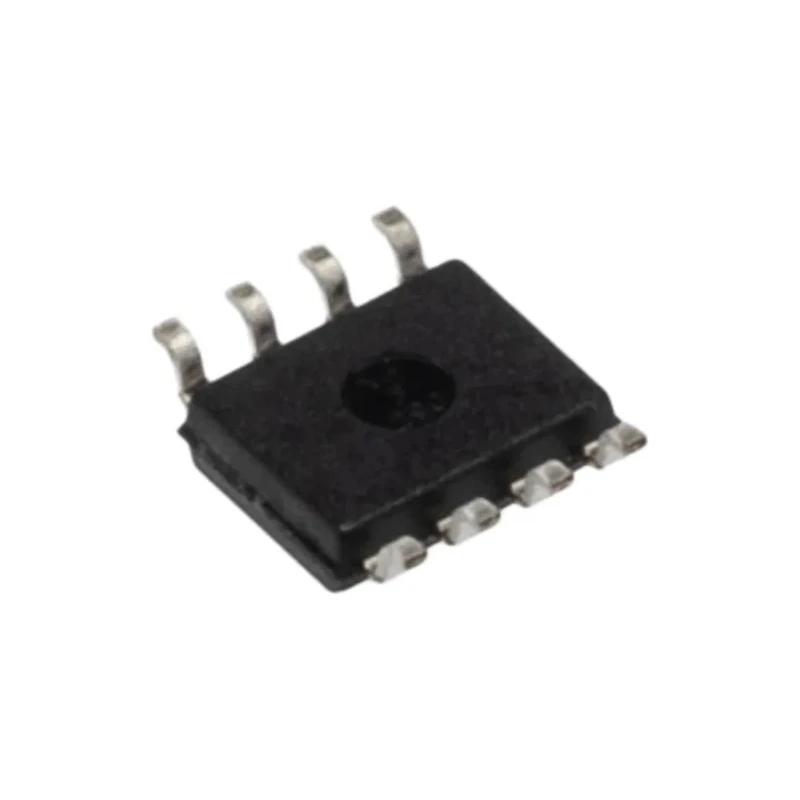

Microchip 8-bit PIC Microcontroller 16 MHz 3.5kB FLASH 8-Pin SOIC PIC12F1572-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | PIC12F1572-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | EUSART |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 1 |
| Number of Timers | 6 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
| Microchip, 8 bit PIC, PIC12F Microcontroller, 16 MHz FLASH, 8-Pin SOICBrand | Microchip |
Key Features
- Operates with a maximum supply voltage of 5.5 volts.
- Features 22 programmable I/O pins suitable for versatile applications.
- Includes a 16 MHz internal oscillator with selectable output range.
- Equipped with 4 x 10-bit ADC channels and a 5-bit DAC for analog signal processing.
- Offers six timers including two 8-bit and one 16-bit timer for precision timing.
- Designed to operate within temperatures ranging from -40°C to 85°C.
- Employs a RISC architecture for efficient instruction execution.
- Supports in-circuit serial programming for easy firmware updates.
Product Description
Microchip PIC12F1572-I/SN is a high-performance 8-bit PIC microcontroller featuring a compact 8-Pin SOIC package with 3.5kB of FLASH memory and an internal 16 MHz oscillator. Designed for embedded applications, it provides up to 8 MIPS processing speed with a versatile set of peripherals.
The microcontroller supports a wide supply voltage range of 2 V to 5.5 V and a power dissipation of 800 mW, making it suitable for battery-operated and low-power designs. It includes 22 programmable I/O pins, enhancing its flexibility for various interfacing tasks.
With six timers, including two 8-bit and one 16-bit timer, this controller can handle complex timing operations. The integrated analog-to-digital converters (four 10-bit ADC channels) and a 5-bit digital-to-analog converter enable precise analog signal processing and control.
Additional features include one analogue comparator, configurable logic cells, a numerically controlled oscillator, and complementary waveform generators, expanding its suitability across industrial, laboratory, automotive, and consumer electronics applications. The device complies with RoHS standards and the automotive ISO/TS 16949 standard, ensuring quality and reliability.
Maximum clock frequency of 16 MHz with selectable internal oscillator output. Memory architecture includes 3.5kB FLASH program memory and 256-bit RAM. ICSP support facilitates easy programming and debugging. Compact dimensions: length 4.9 mm, width 3.9 mm, height 1.5 mm for space-constrained designs.
Operates across temperatures from -40°C up to 85°C inclusive.
This microcontroller is ideal for embedded system developers requiring a robust, compact, and energy-efficient controller with rich peripheral features. It is commonly applied in consumer electronics, industrial control, automotive electronics, and smart devices.
Explore Microchip Microcontrollers and related products for advanced embedded design solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 16 MHz.
It operates within a temperature range of -40°C to 85°C.
This microcontroller features 22 programmable I/O pins.
The program memory size is 3.5kB FLASH.
It includes four 10-bit ADC channels and one 5-bit DAC for analog signal processing.
The maximum power dissipation is 800 mW.
This model comes in an 8-Pin SOIC package type.
It is equipped with six timers, including two 8-bit and one 16-bit timer.
The minimum supply voltage is 2V and the maximum supply voltage is 5.5V.
It complies with RoHS standards and the automotive ISO/TS 16949 standard.
The dimensions are 1.5 mm in height, 4.9 mm in length, and 3.9 mm in width.
It employs a RISC architecture for efficient instruction execution.
