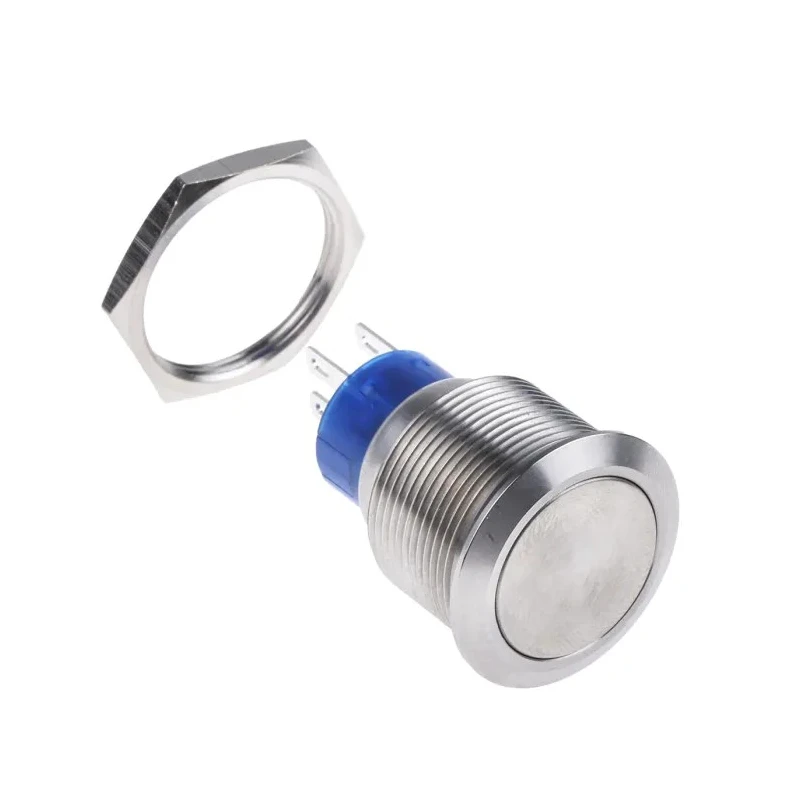

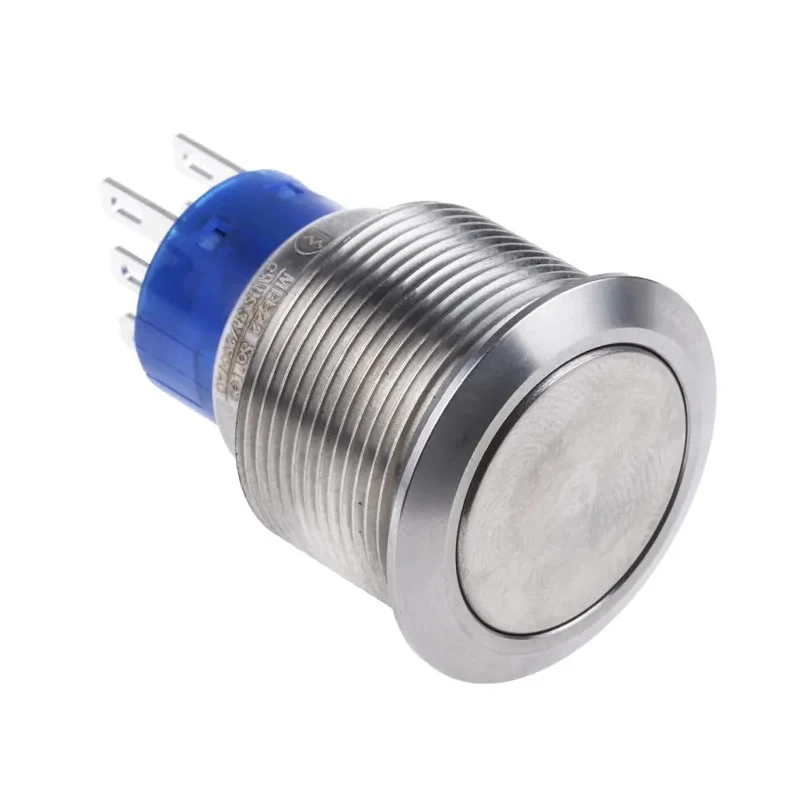

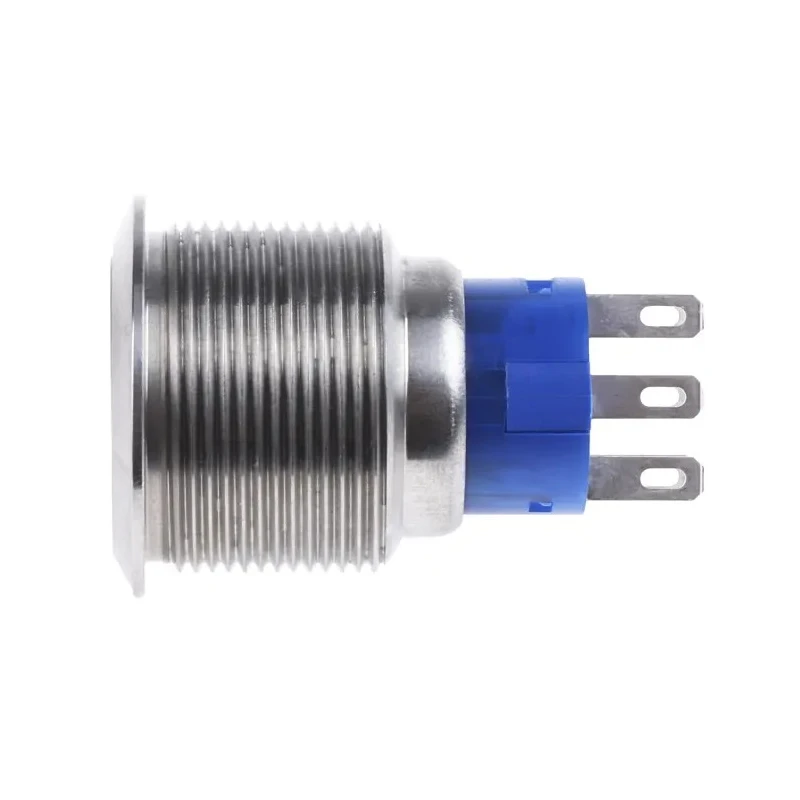

RS PRO Push Button Switch Momentary Panel Mount DPDT IP67 22.2 mm Cutout 250 V 3, 5A 175-9749

Name: RS PRO Push Button Switch Momentary Panel Mount DPDT IP67 22.2 mm Cutout 250 V 3, 5A 175-9749
Brand: RS PRO
SKU: 241519
Price: 3003.37 INR
Availability: InStock



Category Push Button Switches & Components Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	175-9749
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-20°C
Panel Cutout Size	22.2 mm

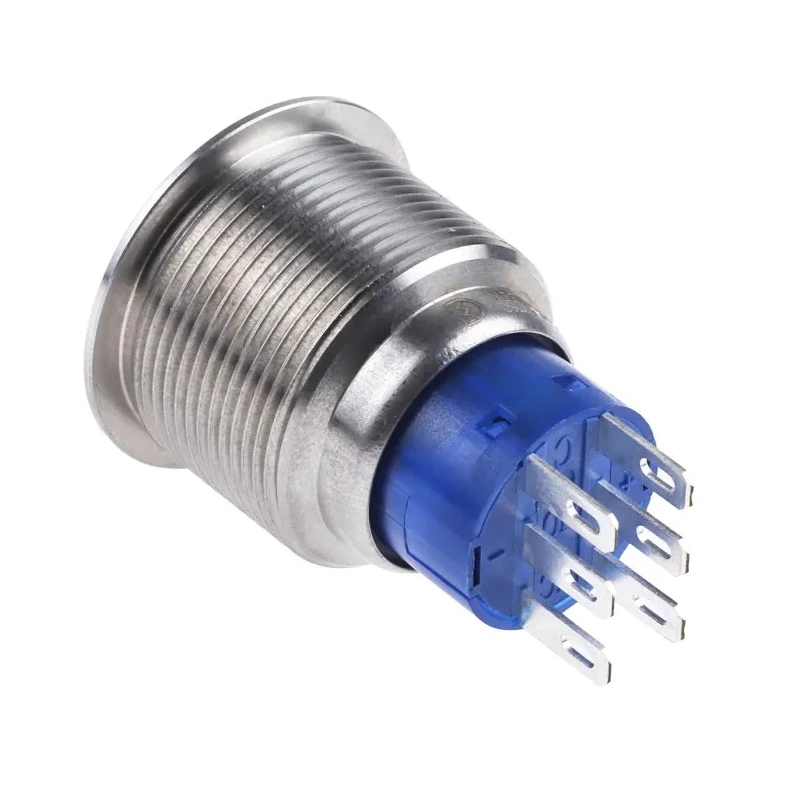

Terminal type	Solder
Standards/Approvals	cULus Recognized, EC18, EN18, UL 94 V-0, UL 94 V-2
Switch Operation	Momentary
Contact DC Voltage	250V

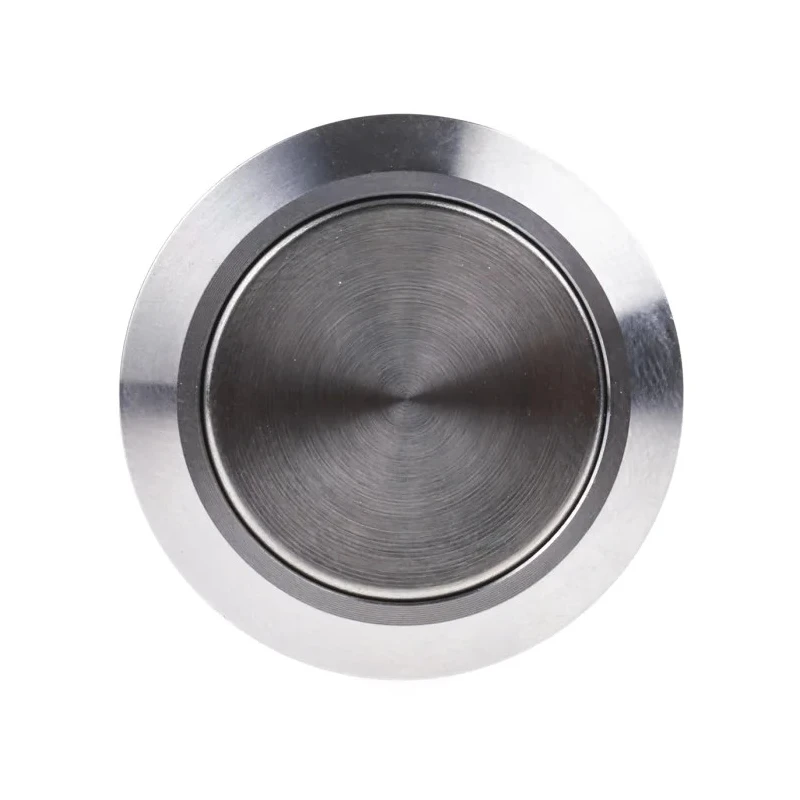

Actuator Style	Flat
Switch Contact Current	3, 5A
Contact AC Voltage	250V ac

Key Features

The switch features a flat actuator style suitable for panel mounting.
It has a high IP67 rating, ensuring robust protection against dust and water ingress.
Rated for 250 V AC and DC operation with a contact current of 3 and 5 amperes.
Constructed with a solder terminal type for reliable electrical connections.
Operates efficiently within a temperature range of -20°C to 70°C.
Complies with multiple international standards including cULus, EC18, EN18, and UL 94 V-0/-2 for material safety.
The switch is non-illuminated and comes from a trusted RS PRO series.
Manufactured in China, the switch is suitable for industrial control instruments, medical equipment, security monitoring, and more.

Product Description

The RS PRO 175-9749 push button switch is a momentary, double pole double throw (DPDT) switch designed for panel mounting with a precise 22.2 mm cutout. This switch offers reliable and robust performance in demanding industrial and commercial applications requiring vandal resistance and long service life.

Featuring an IP67 rating, it provides excellent protection against dust and water ingress, making it suitable for harsh environments. The switch supports a contact voltage of 250 V AC and DC and a contact current rating of 3 and 5 amperes, enabling compatibility with diverse electrical systems. It incorporates a flat actuator style for smooth operation and solder terminals for secure wiring.

With an operating temperature range from -20°C to 70°C, the switch maintains reliable functionality under varying environmental conditions. It meets stringent safety and performance standards including cULus recognition, EC18, EN18, and UL 94 V-0 and V-2 for high material safety and flame retardancy.

RS PRO's push button switch series is recognized for lightweight metal construction combined with high strength, corrosion resistance, and excellent heat dissipation. Ideal applications span across industrial control instruments, medical devices, security systems, vehicle peripherals, audiovisual equipment, and energy storage solutions.

The switch's momentary operation suits applications needing temporary activation. Panel mounting and compact 22.2 mm cutout optimize integration in control panels. Durable to IP67, ideal for industrial and outdoor uses. Flat actuator style supports ergonomic interaction.

Wide operating temperature range ensures versatility in environments. Compliance with multiple certifications guarantees quality and safety. Non-illuminated design is compatible with systems not requiring illumination. Solder terminal type for stable electrical connections.

This product is made in China and represents the RS PRO commitment to quality and performance in electrical switches. For industrial, laboratory, manufacturing, and commercial use, this push button switch offers a reliable solution.
