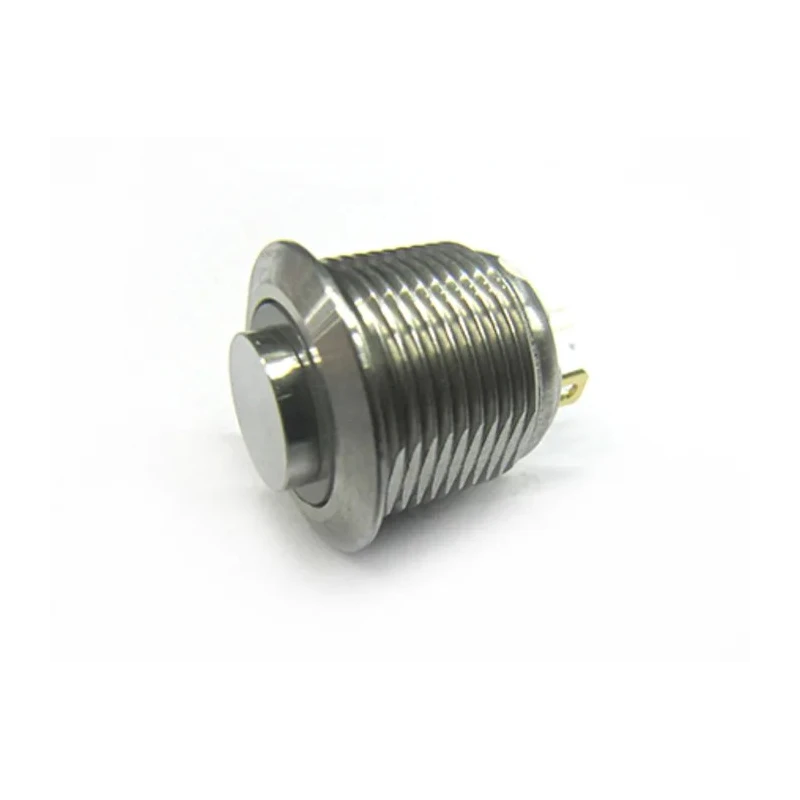

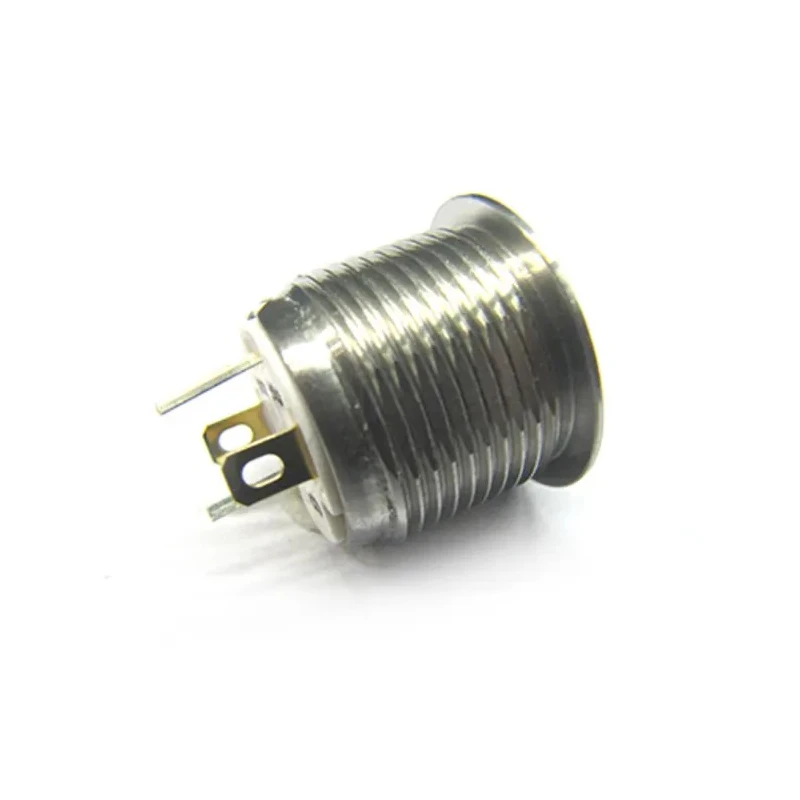

RS PRO Illuminated Momentary Panel Mount Push Button Switch, 16 mm Cutout, SPST RGB LED, IP67, 36 V dc 175-9213

Name: RS PRO Illuminated Momentary Panel Mount Push Button Switch, 16 mm Cutout, SPST RGB LED, IP67, 36 V dc 175-9213
Brand: RS PRO
SKU: 241406
Price: 2119.4 INR
Availability: InStock



Category Push Button Switches & Components Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	175-9213
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	16 mm
Terminal type	Solder
Standards/Approvals	UL 94 V-0, UL 94 V-2
LED Colour	Blue, Green, Red
Switch Operation	Momentary
Contact DC Voltage	36V dc
Actuator Style	Round
Switch Contact Current	2A

Key Features

Illuminated with RGB LED colors including Blue, Green, and Red for versatile visual indication.
IP67 rated for excellent protection against dust and water ingress.
Operates at a contact DC voltage of 36 V dc with a current rating of 2A.
Constructed with a round actuator style suitable for industrial and public settings requiring vandal resistance.
Temperature operating range from -20°C to 70°C ensures reliable performance in diverse environments.
Complies with UL 94 V-0 and UL 94 V-2 flammability standards for durability and safety.
Panel mounting type with solder terminal connections for secure installation.
Ideal for use in industrial control instruments, medical equipment, security monitoring, vehicle peripherals, and audio-visual equipment.

Product Description

RS PRO 175-9213 Illuminated Momentary Panel Mount Push Button Switch features a 16 mm cutout and SPST contact configuration, suitable for robust industrial applications requiring reliable and vandal-resistant switches.

The switch is illuminated with RGB LED lights in Blue, Green, and Red, providing clear visual indicators in control setups. It is rated IP67, ensuring excellent dust tightness and water immersion protection.

Designed with a round actuator style, the switch supports a contact DC voltage of 36 V dc and can handle a current of up to 2 amps. Its temperature range from -20°C to 70°C allows it to perform reliably in harsh industrial and outdoor environments.

The switch meets UL 94 V-0 and UL 94 V-2 standards, confirming its high flame retardance for safety and durability. The solder terminal type facilitates easy and secure mounting on panels.

This push button switch from RS PRO is widely applicable in industrial control instruments, medical devices, security monitoring equipment, vehicle peripherals, and audio-visual systems, offering a long life expectancy and a lightweight corrosion-resistant metal build that allows easy heat dissipation and durability.

Illuminated RGB LED with Blue, Green, and Red colors for versatile signaling. IP67 rated for protection against dust and water ingress. Supports 36 V dc contact voltage and 2A contact current rating. Momentary operation with SPST contact configuration.

Compliant with UL 94 V-0 and V-2 flammability standards. Round actuator style with panel mount and solder terminal type. Operating temperature range of -20°C to 70°C suitable for demanding environments. Ideal for industrial, medical, security, vehicle, and audio-visual applications.
