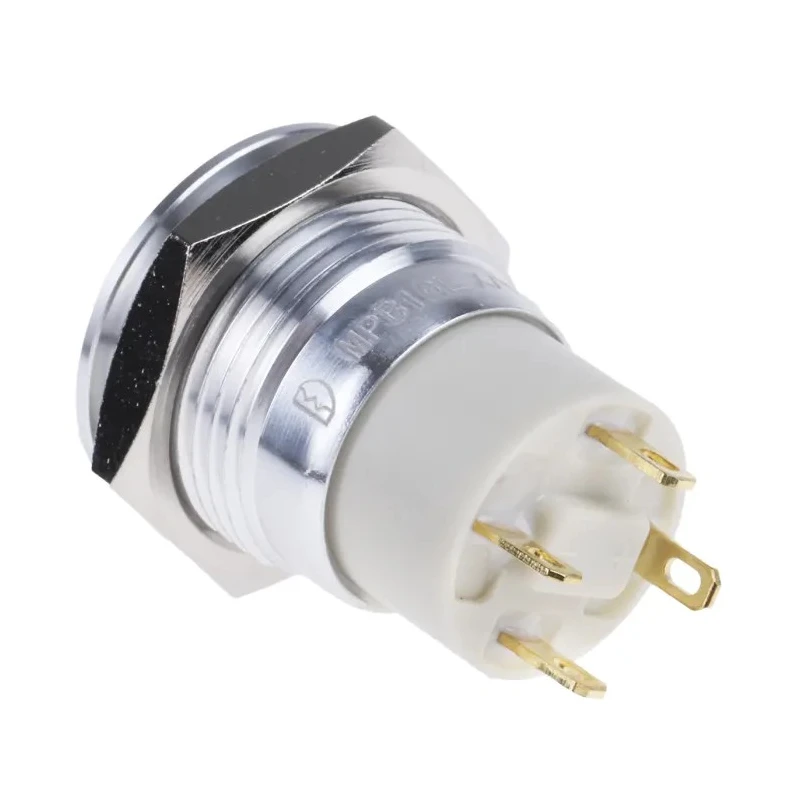

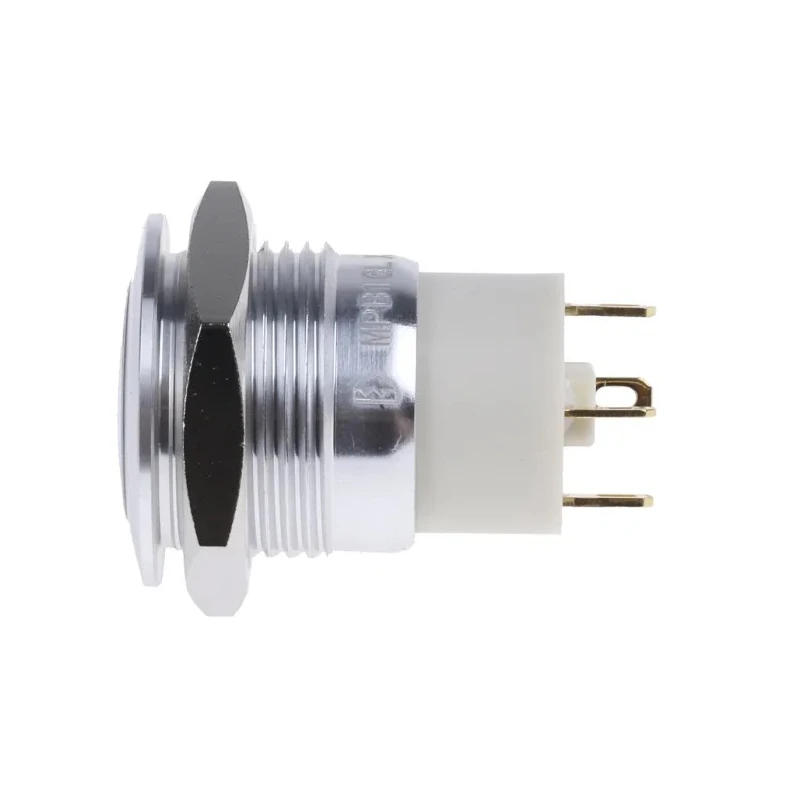

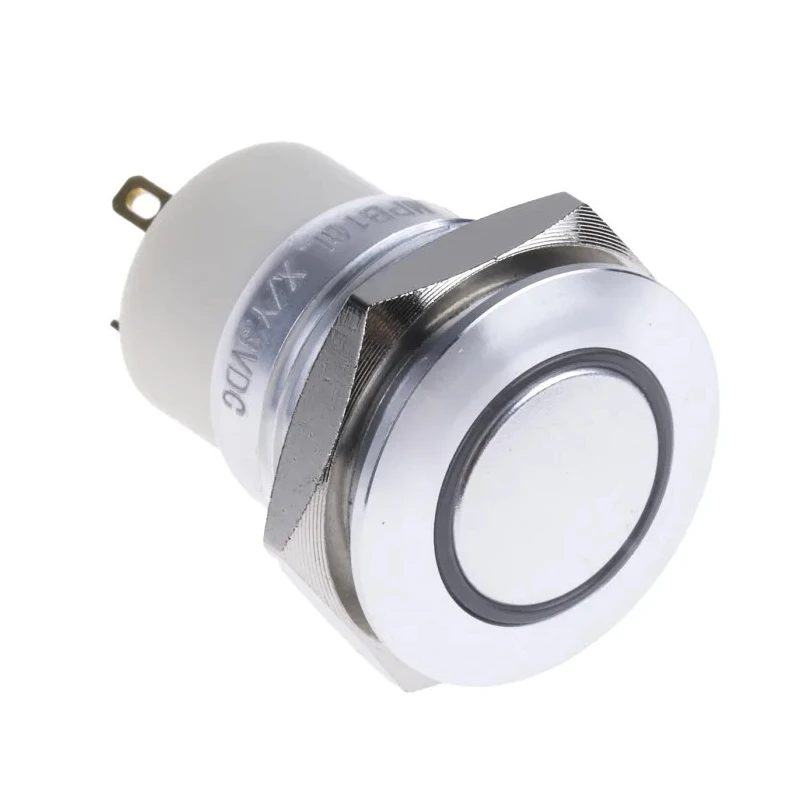

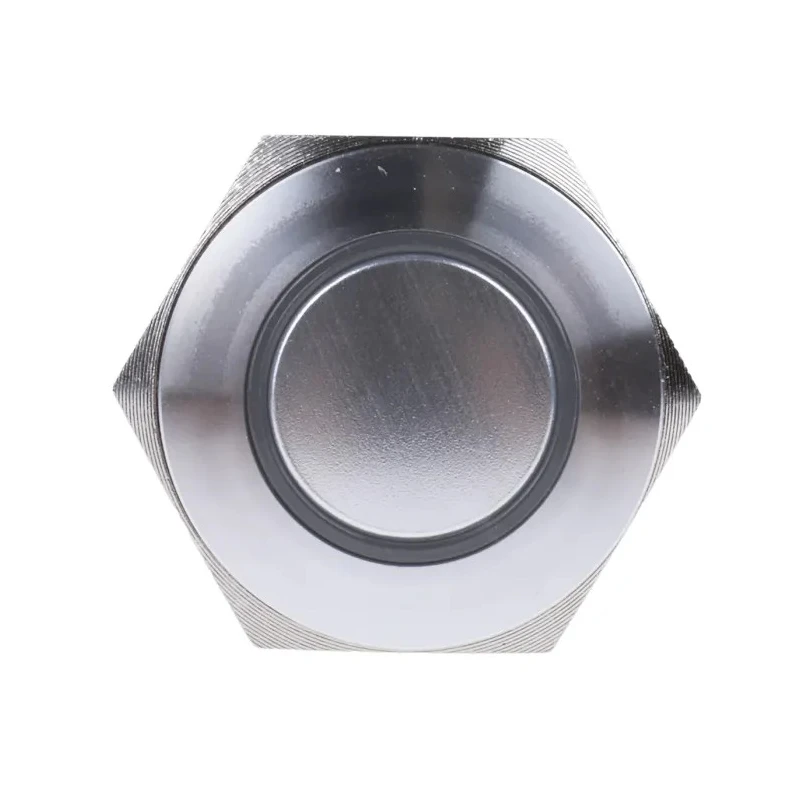

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 16 mm Cutout, SPST, Yellow LED, IP67, 36 V dc 175-9147

Name: RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 16 mm Cutout, SPST, Yellow LED, IP67, 36 V dc 175-9147
Brand: RS PRO
SKU: 241377
Price: 1740.09 INR
Availability: InStock



Category Push Button Switches & Components Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	175-9147
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	16 mm
Terminal type	Solder
Standards/Approvals	RS
LED Colour	Yellow
Switch Operation	Latching
Actuator Colour	White
Contact DC Voltage	36V dc
Actuator Style	Round
Switch Contact Current	2A

Key Features

Designed for panel mount with a 16 mm cutout size.
Single Pole Single Throw (SPST) contact configuration for simple switching needs.
Durable construction providing an IP67 ingress protection rating.
Equipped with a round white actuator for precise operation.
Operates safely with DC voltage up to 36 V and current rating of 2 A.
Features a solder terminal type for secure electrical connections.
Illuminated status indicated by a yellow LED inside the switch.
Wide operating temperature range from -20°C to 70°C to withstand various environments.

Product Description

RS PRO 175-9147 Illuminated Push Button Switch is a high-quality, latching type switch designed for panel mounting with a precise 16 mm cutout. Featuring a robust SPST contact configuration and a bright yellow LED indicator, this switch ensures clear operational status in various electrical and automation applications. The actuator is round and white, designed for easy and intuitive control.

The product is IP67 rated, offering excellent protection against dust and water ingress, making it suitable for demanding industrial environments. It operates reliably within a DC voltage rating of 36 V and supports a contact current of 2 A, allowing its use in a variety of low voltage control systems.

Constructed with an anti-vandal design, the switch promises a long life expectancy and resistance to mechanical abuse. Its wide temperature tolerance from -20°C to 70°C ensures dependable performance under extreme conditions. The switch's solder-type terminals provide secure and stable connectivity.

This illuminated push button switch is ideal for applications in industrial control instruments, medical equipment, security monitoring devices, vehicle systems, audio-visual equipment, and energy storage controls. Its design facilitates easy integration into various control panels and electrical installations.

Panel mount with 16 mm cutout size for universal compatibility. Single Pole Single Throw (SPST) contacts for simple switch operation. IP67 rated housing provides dust and water resistance. Yellow LED illumination for visual switch status indication.

Anti-vandal design enhances durability and switch life. Wide operating temperature range from -20°C to 70°C. 36 V DC voltage and 2 A contact current rating. Round white actuator for ergonomic use. Solder terminal type ensures reliable electrical connections.

Manufactured in Taiwan, Province Of China, adhering to RS standards.

This RS PRO series push button switch meets industrial standards with RoHS compliance and is designed for varied industrial and commercial control applications, ensuring reliable and safe operation. For further exploration of high-quality push button switches and accessories, browse the Electronics & Electricals category on EnvMart.
