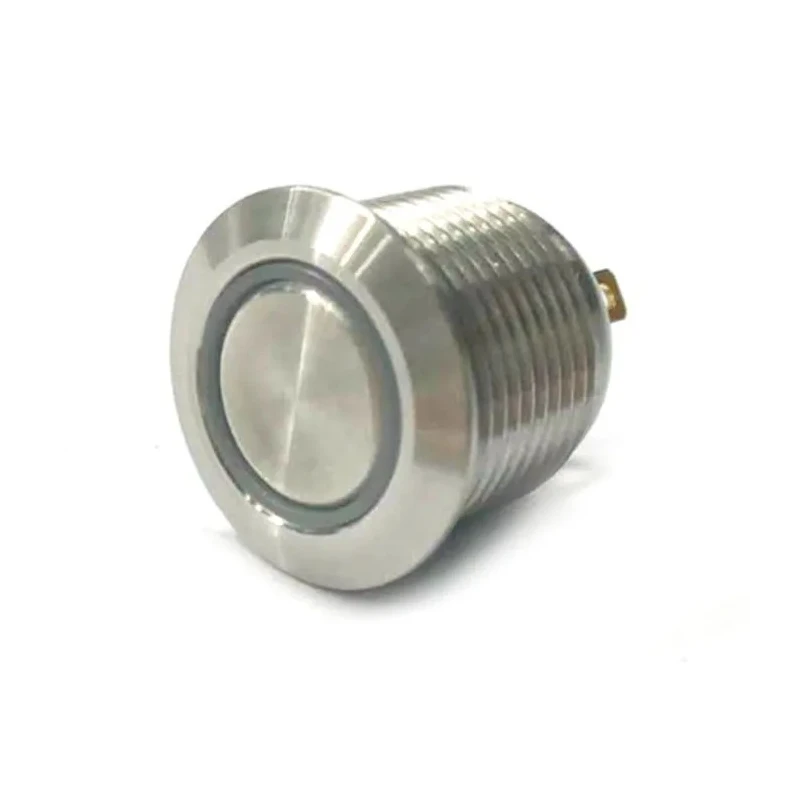

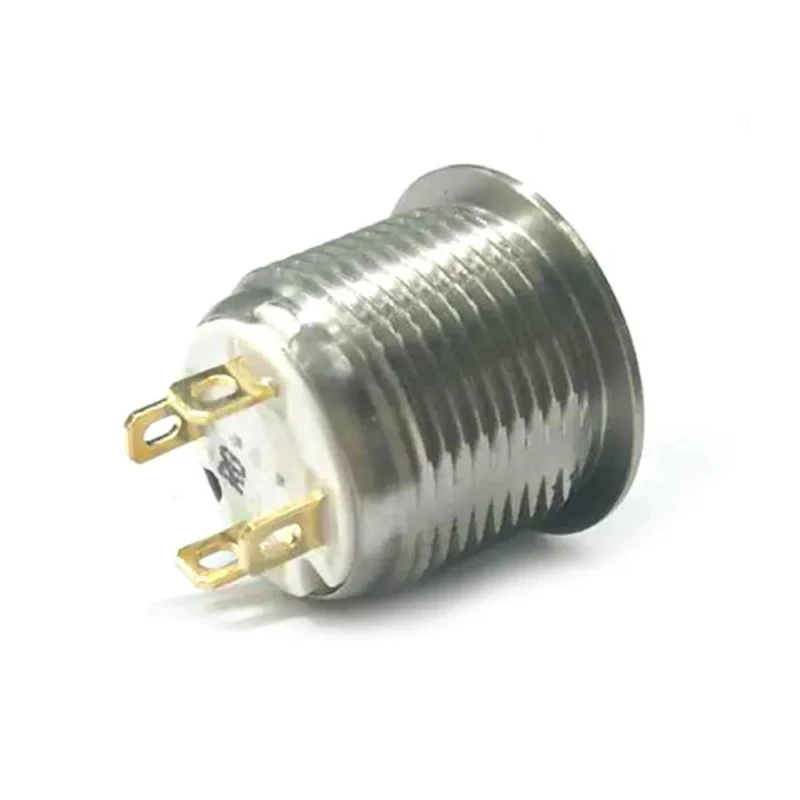

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, SPST, Green & Red LED, IP67, 36 V dc 175-9142
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-9142 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Green, Red |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 2A |
Key Features
- The push button switch operates as momentary with SPST contact for reliable control.
- Illuminated with green and red LEDs enhancing visibility and status indication.
- The panel cutout size is precisely 16 mm for easy installation.
- Rated IP67 for protection against dust and water ingress in harsh environments.
- Operating voltage up to 36 V dc suitable for low voltage circuits.
- Flat actuator style for user-friendly operation and vandal resistance.
- Complies with UL 94 V-0 and UL 94 V-2 flammability standards.
- Wide temperature range from -20°C to 70°C ensures durability in varying conditions.
Product Description
RS PRO 175-9142 Illuminated Push Button Switch is a panel mount, momentary operation switch with a 16 mm cutout diameter. Equipped with SPST contact configuration and dual green and red LED illumination, it provides clear visual status in control systems.
This switch offers an IP67 rating, ensuring complete protection from dust ingress and water immersion, making it highly suitable for industrial, medical, security monitoring, vehicle peripherals, and energy storage equipment where environmental safety is critical.
Its flat actuator style and anti-vandal design are crafted for long-term reliability and ease of use, with compliance to UL 94 V-0 and V-2 standards assuring material safety and flame retardancy.
Operating reliably in temperatures from -20°C to 70°C and supporting contact currents up to 2A at 36 V dc, this push button switch addresses diverse industrial control requirements.
The push button switch operates as momentary with SPST contact for reliable control. Illuminated with green and red LEDs enhancing visibility and status indication. The panel cutout size is precisely 16 mm for easy installation.
Rated IP67 for protection against dust and water ingress in harsh environments. Operating voltage up to 36 V dc suitable for low voltage circuits. Flat actuator style for user-friendly operation and vandal resistance. Complies with UL 94 V-0 and UL 94 V-2 flammability standards.
Wide temperature range from -20°C to 70°C ensures durability in varying conditions. Contact current rated at 2A supporting typical industrial uses. Constructed for industrial control, medical, security, and audio-visual equipment applications.
This switch’s reliability and safety features make it an excellent choice for harsh industrial environments and demanding applications requiring vandal resistance and status indication.
Explore more in the Electronics & Electricals category on EnvMart for similar high-quality push button switches and electrical components.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, allowing for reliable momentary operation.
The maximum operating temperature for this switch is 70°C, making it suitable for a range of environments.
It has an IP67 rating, providing complete protection against dust ingress and water immersion.
The required panel cutout size for this switch is 16 mm, ensuring easy installation.
This unit operates at a contact DC voltage of up to 36 V, suitable for low voltage circuits.
The switch is equipped with solder terminals for secure electrical connections.
The contact current rating for this switch is 2A, which supports typical industrial applications.
This model features dual illumination with green and red LEDs for enhanced visibility and status indication.
The minimum operating temperature for this push button switch is -20°C, allowing it to function in colder environments.
It complies with UL 94 V-0 and UL 94 V-2 flammability standards, ensuring material safety and flame retardancy.
The actuator style is flat, designed for user-friendly operation and enhanced vandal resistance.
This switch is suitable for applications in industrial control, medical, security monitoring, and audio-visual equipment.
