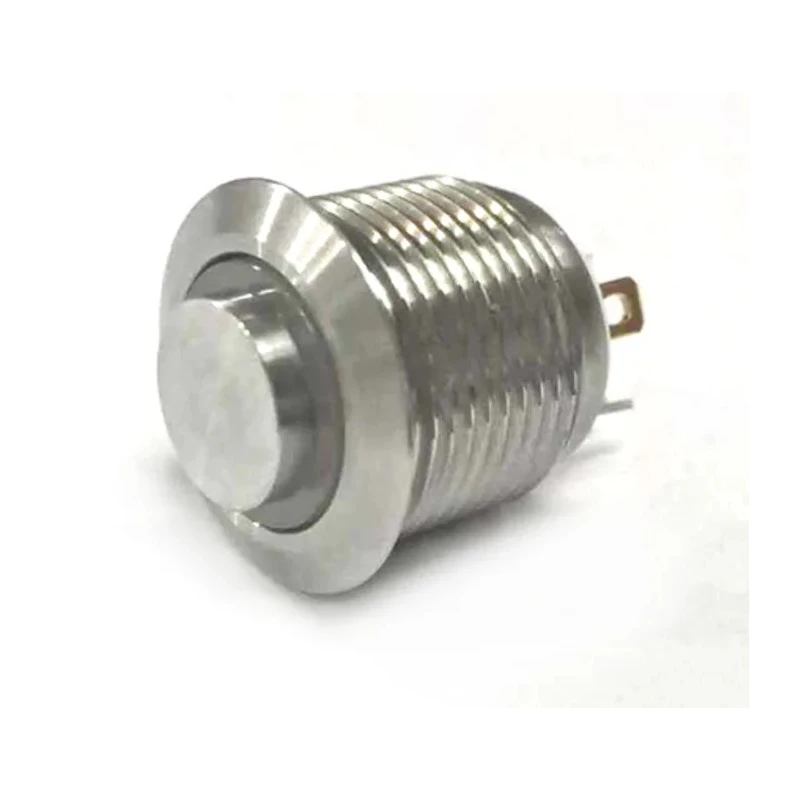

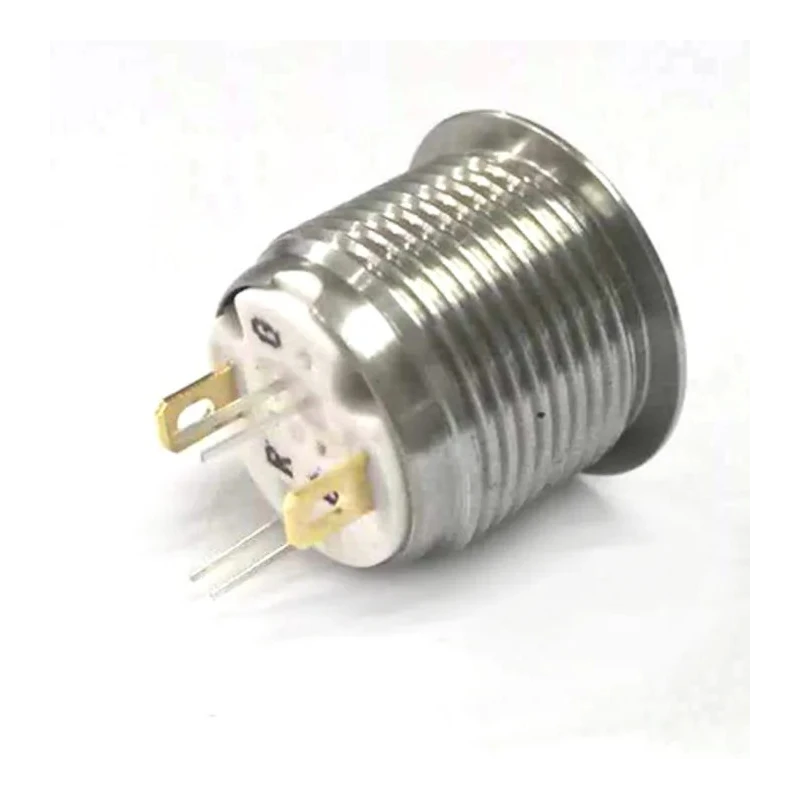

RS PRO Illuminated Push Button Switch Momentary Panel Mount 16 mm Cutout SPST RGB LED IP67 36 V dc 175-9122

RS PRO 175-9122 Illuminated Push Button Switch Momentary 16 mm Panel Mount is expertly designed for rigorous industrial, medical, security, audio-visual, and energy storage applications where durability and reliability are critical. This IP67 rated anti-vandal switch is built to withstand harsh environments, offering dust-tight and water immersion protection.

The switch features a Single Pole Single Throw (SPST) contact configuration and momentary operation for precise user control. Its distinctive RGB LED illumination (Blue, Green, Red) enhances visibility and operational status indication in panel-mounted installations.

Manufactured to comply with UL 94 V-0 and V-2 standards, the device ensures excellent flame retardant properties, further enhancing safety compliance within electrical and automation systems. Operating temperatures range from -20°C to 70°C, allowing its use across varied industrial environments.

The round actuator style combined with a solder terminal type supports easy integration and are designed for ergonomic handling and secure electrical connectivity. Its 36 V dc contact voltage and 2 A contact current rating make it suitable for a diverse range of control instruments and equipment peripherals.

This push button switch is widely applicable in industrial control instruments, medical devices, security monitoring equipment, vehicle peripherals, audio-visual systems, and energy storage equipment setups requiring reliable illuminated control inputs.

The Push Button Switch features a momentary switch operation for precise control. Compatible with a 16 mm panel cutout size ensuring easy installation. Illuminated with Blue, Green, and Red LEDs providing clear status indication.

IP67 rated for dust-tight and water immersion protection suitable for harsh environments. Supports a contact DC voltage of 36 V dc with a contact current rating of 2 A. Constructed with a round actuator style for ergonomic and aesthetic operation.

Terminal type is solder ensuring reliable electrical connections. Operates efficiently between temperatures -20°C to 70°C for wide environmental adaptability. Meets UL 94 V-0 and UL 94 V-2 standards for fire resistance and safety compliance.
