RS PRO Illuminated Push Button Switch Momentary Panel Mount SPDT Blue LED IP65 250 V 3, 5A 175-8291

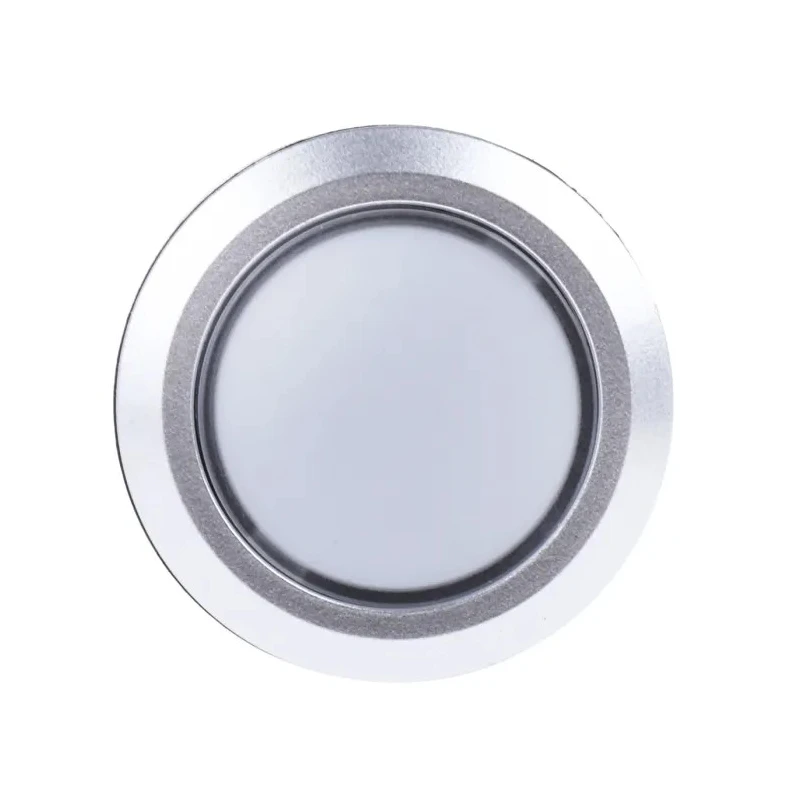

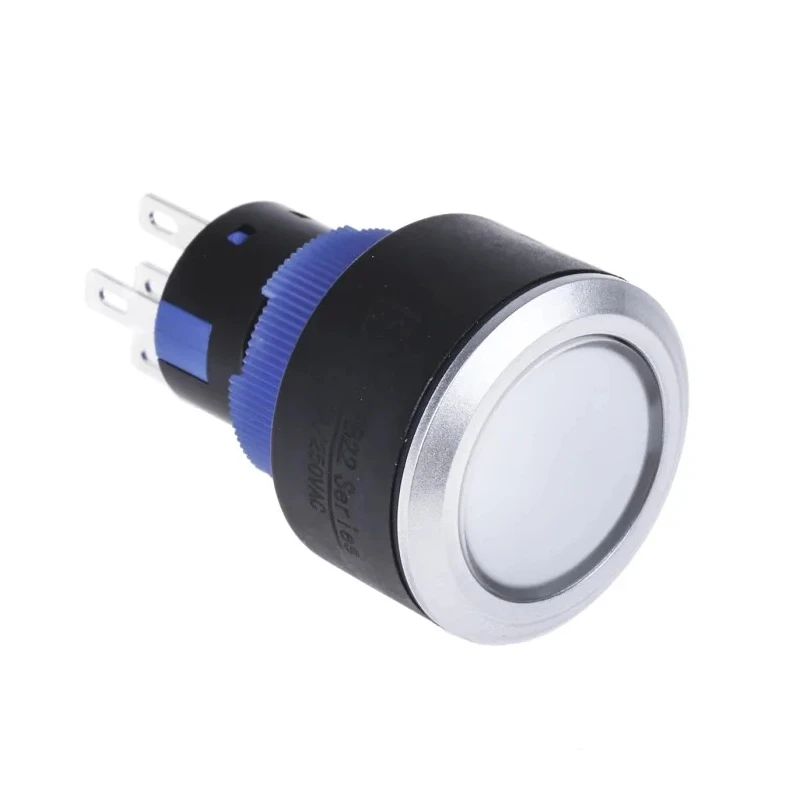

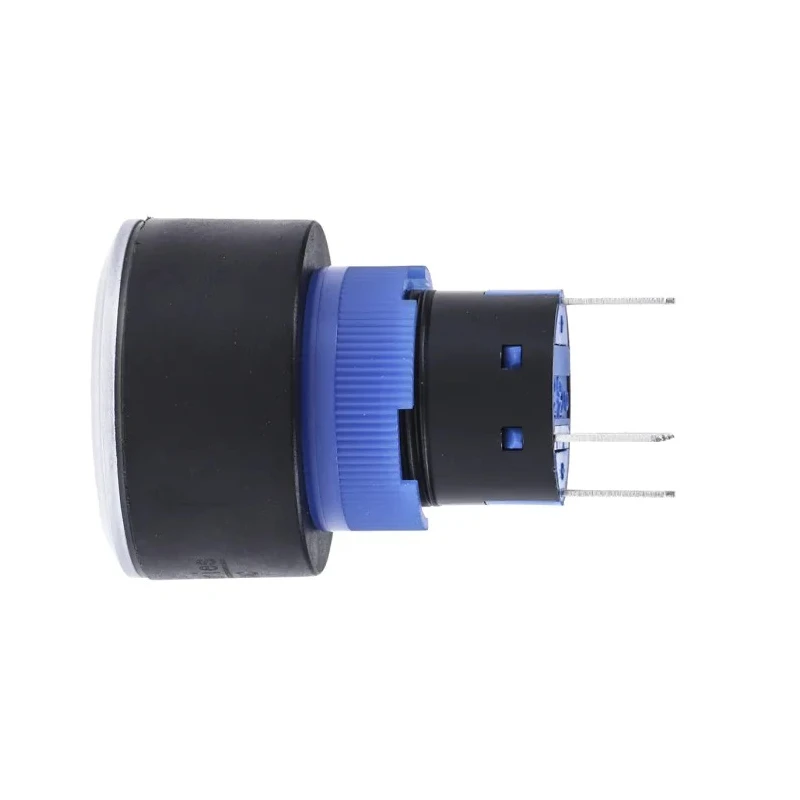

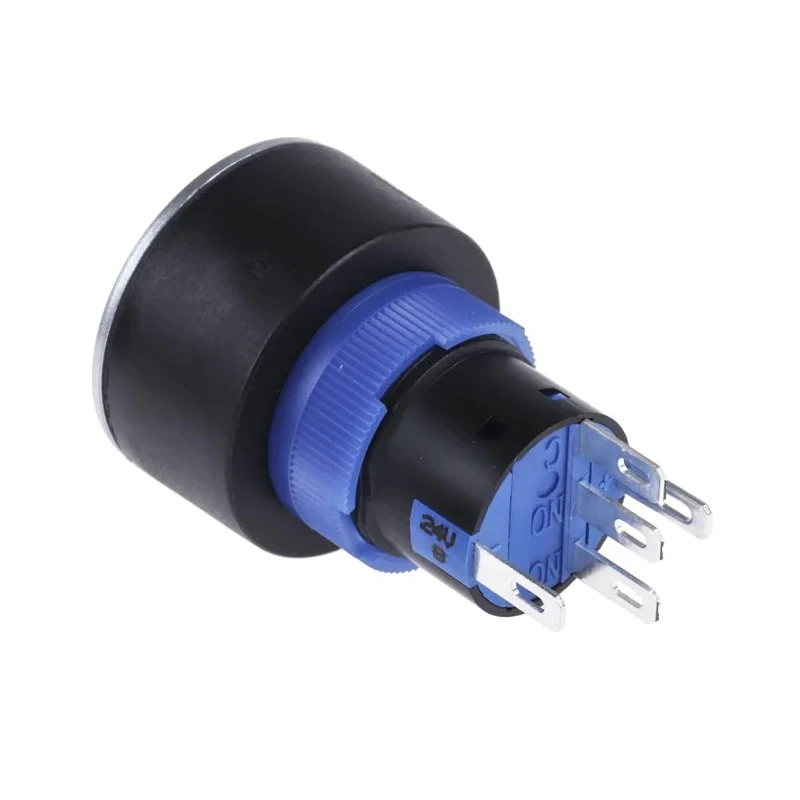

RS PRO 175-8291 Illuminated Push Button Switch is a high-quality momentary action switch designed for panel mounting in industrial and electronic applications. It incorporates a single pole double throw (SPDT) contact configuration which allows versatile switching options with reliable operation. The blue LED illumination located in the silver metal cap offers a clear visual indication of switch status, essential for control panels.

With a panel cutout diameter of 22.2 mm, this switch is easy to integrate into existing control devices while maintaining a compact footprint. The switch body features a lightweight plastic cover with a carved pattern, enhancing aesthetic and grip. It is rated IP65, ensuring complete protection against dust ingress and resistance to water jets, making it suitable for harsh environments.

This switch supports contact voltages of 250V for both AC and DC circuits with a contact current of up to 3, 5 amperes, making it ideal for low to mid-power applications. Its actuator style is flat and colored clear, optimizing user interface experience while complying with the UL 94 V-0 and V-2 standards for flame retardancy, which highlights its focus on operational safety and durability.

Designed to operate over a wide temperature range from -35°C to 70°C, it is robust enough for diverse electronics, automation equipment, communication technology, and office machinery (such as measuring instruments and industrial devices). This versatility makes it a preferred choice for engineers and system integrators involved in designing or maintaining control and automation panels.

The switch features a 22.2 mm panel cutout for easy installation. Blue LED illumination provides clear visual feedback. IP65 rating ensures effective protection from dust and water. SPDT configuration supports versatile control functions.

Supports contact voltage of 250 V AC and DC with 3, 5A current rating. Flat actuator style with a durable plastic cover and silver metal cap. Compliance with UL 94 V-0 and V-2 standards for flame retardance. Operating temperature range from -35°C to 70°C for broad industrial applications.

This RS PRO push button switch is engineered for reliability and safety in a range of industrial, laboratory, and office automation applications. Its panel mount style and illuminated indicator allow integration into control systems requiring robust user interfaces and clear operation states. Explore more Push Button Switch solutions and related components in the RS PRO category at EnvMart.
