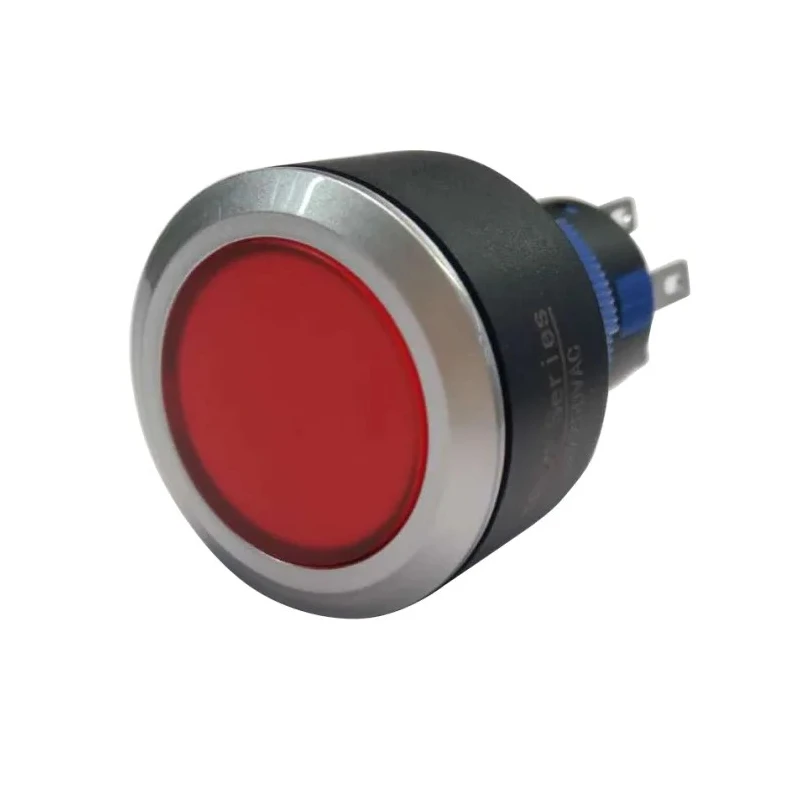

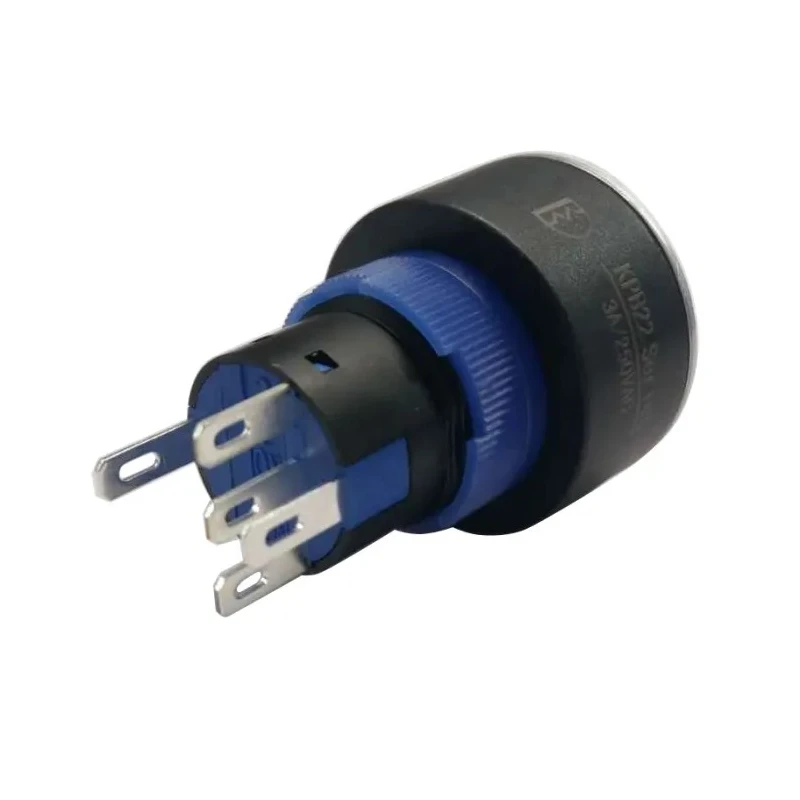

RS PRO Illuminated Push Button Switch Momentary Panel Mount 22.2 mm Cutout SPDT Red LED IP65 250 V AC 175-8224
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-8224 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 3, 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch offers an IP65 protection rating for robust environmental resistance.
- It operates at 250 V AC contact voltage supporting up to 3.5 A contact current.
- The actuator employs a flat style with a lightweight plastic cover and silver metal cap.
- The LED is red, providing clear indication in various industrial applications.
- Designed for operating temperatures from -35°C up to 70°C, suitable for harsh conditions.
- The switch is UL 94 V-0 and UL 94 V-2 approved for safety standards compliance.
- Applications include communication equipment, automation systems, electronic measuring instruments, and industrial equipment.
Product Description
RS PRO 175-8224 Illuminated Push Button Switch is a momentary panel mount device designed with a 22.2 mm cutout and Single Pole Double Throw (SPDT) configuration suitable for industrial and commercial electrical applications.
The switch features a red LED illumination integrated within a flat actuator style, creating clear indication during operation. Its IP65 rating ensures protection against dust and water ingress, making it suitable for harsh environmental conditions.
Operating at 250 V AC with a maximum switch contact current of 3.5 A, this push button switch offers reliable electrical performance. The lightweight plastic cover with a carved pattern and silver metal cap adds durability and aesthetic quality.
The product meets safety standards UL 94 V-0 and UL 94 V-2, ensuring flame retardant properties and operational safety. It functions effectively in wide temperature ranges from -35°C to 70°C, enabling use in diverse ambient conditions.
Typical industrial uses include communication devices, wireless applications, electronic measuring instruments, automation equipment, office machinery, and various industrial control panels. Its solder terminal type eases installation and connection.
The switch provides momentary operation with illuminated visual feedback. IP65-rated enclosure for robust protection in harsh environments. Single Pole Double Throw contact configuration for versatile circuit control. Red LED illumination integrated for clear status indication.
Runs reliably at 250 V AC and supports 3.5 A contact current. Meets UL safety approvals with high flame retardance standards. Suitable for broad applications including industrial and automation sectors. Explore more technical Push Button Switches and components in the RS PRO category on EnvMart for a wide selection of quality electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch has an IP65 rating, providing protection against dust and water ingress, making it suitable for harsh environmental conditions.
It supports a maximum contact current of 3.5 A, ensuring reliable electrical performance during operation.
This switch operates at 250 V AC, suitable for various industrial applications.
The switch functions effectively in a temperature range from -35°C to 70°C, allowing use in diverse ambient conditions.
It employs a flat actuator style with a red LED, providing clear visual indication during operation.
The required panel cutout size for installation is 22.2 mm.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile circuit control.
It has solder terminals, which facilitate easy installation and connection.
The switch meets UL 94 V-0 and UL 94 V-2 safety standards, ensuring flame retardant properties and operational safety.
Typical applications include communication equipment, automation systems, electronic measuring instruments, and industrial equipment.
The LED in this switch is red, providing clear indication during operation.
The product is manufactured in Taiwan.
