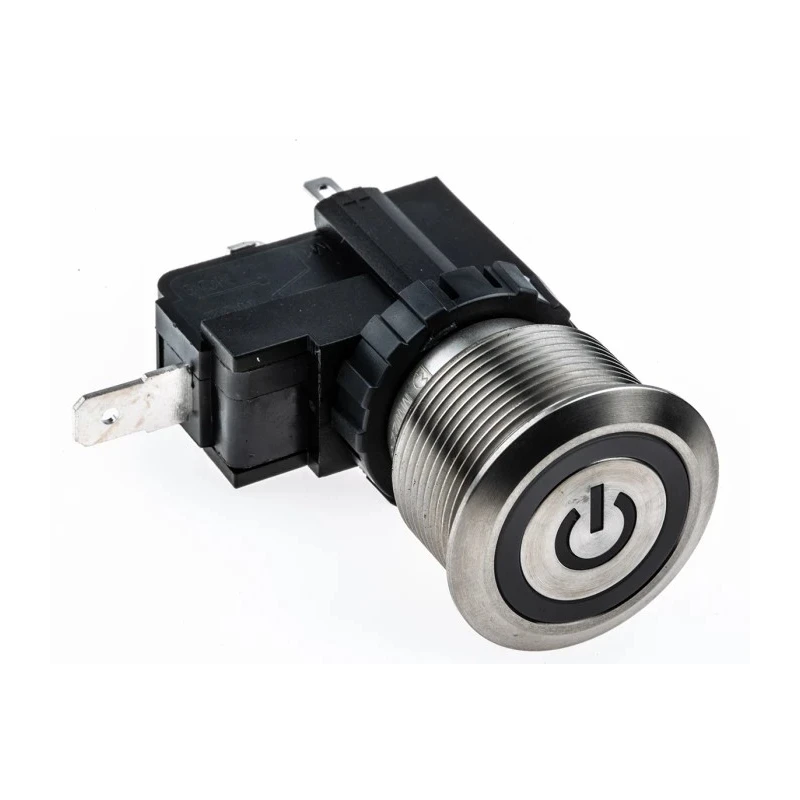

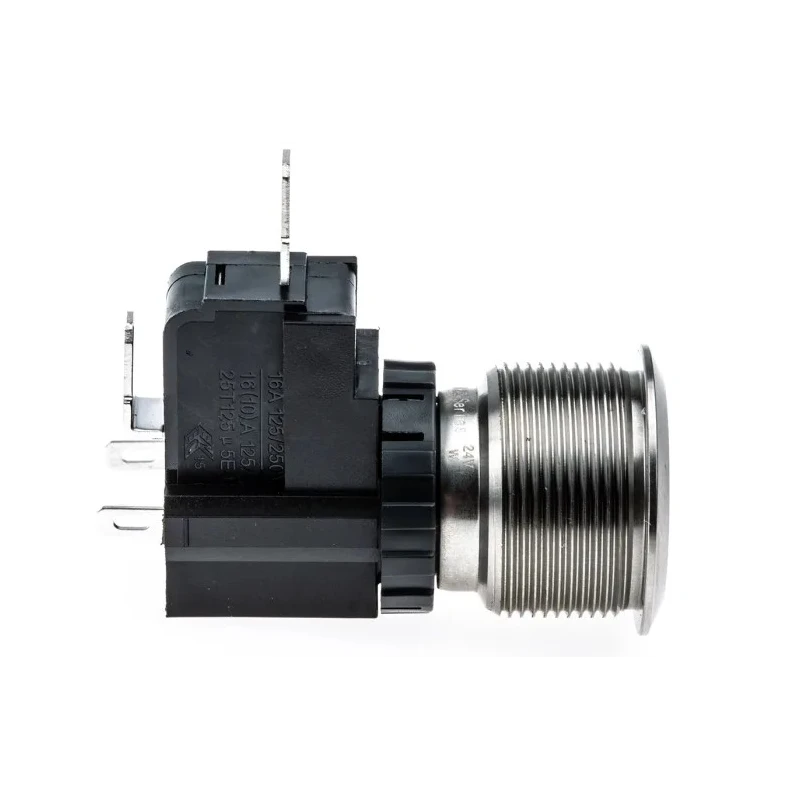

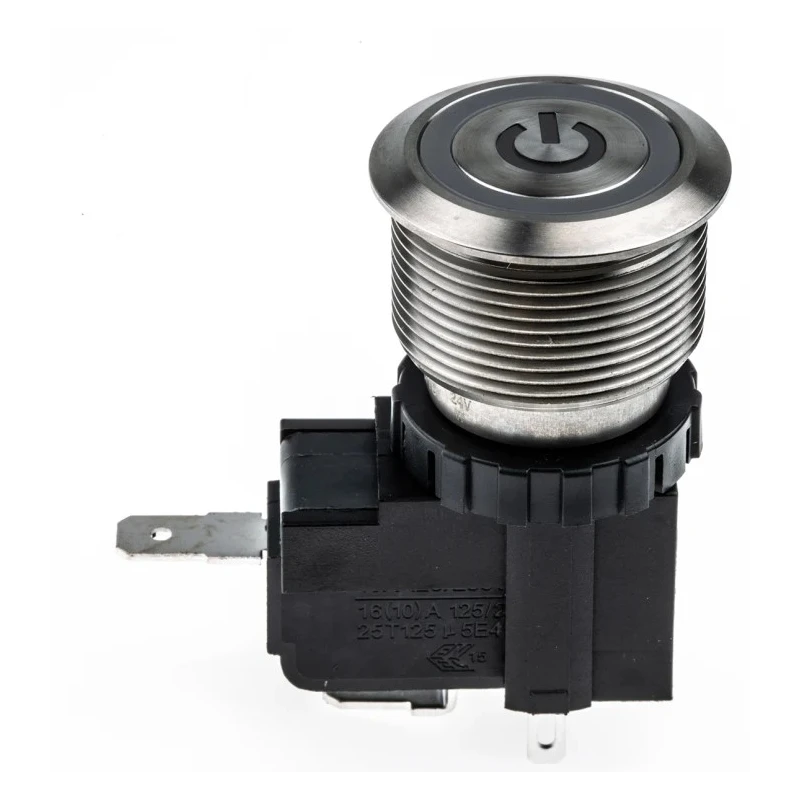

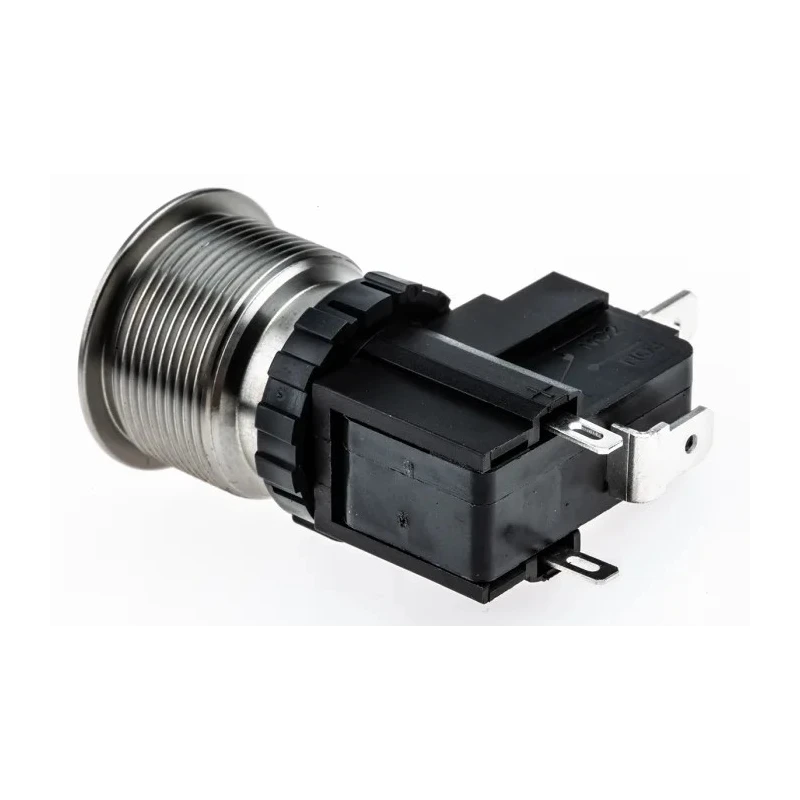

RS PRO Illuminated Push Button Switch Latching Panel Mount SPST White LED IP67 250 V ac 175-8204

RS PRO 175-8204 Illuminated Push Button Switch is a high-quality latching push button designed for panel mounting with a 22.2 mm cutout size, operating at 250 V AC and featuring a white LED indicator. This SPST switch combines durable construction with reliable electrical performance for diverse industrial and commercial applications.

The flat actuator style offers an ergonomic and sleek interface, making it ideal for control panels requiring a robust latching action. Its IP67 rating ensures the switch is dust-tight and protected against water ingress, suitable for harsh industrial environments.

Featuring quick connect terminals, installation and maintenance are simplified, while the high current ratings of up to 26 A cater to powerful electrical loads. The switch complies with multiple safety standards including cULus, EC15, EN15, and UL 94 V-0 and V-2 flame retardancy, providing assurance in safety and quality.

This switch is engineered to operate reliably within a wide temperature range from -25°C to 85°C. Its versatility makes it suitable for machinery control, medical equipment interfaces, security monitoring units, vehicle systems, audio-visual devices, and energy storage equipment.

Its power symbol legend provides intuitive status indication for operators, and the ability to replace the micro-switch and bushing enhances maintainability and extends product lifecycle. The IP67 rating combined with durable materials ensures outstanding resistance to challenging industrial conditions.

This switch operates with a latching mechanism to maintain the ON/OFF state until changed. It features a Single Pole Single Throw (SPST) contact configuration suitable for various control applications. The LED illumination uses a white color for clear indication and improved visibility.

Built to IP67 rated standards, providing dust-tight and water-resistant protection for harsh environments. The actuator style is flat which offers a sleek user interface suitable for industrial panels. Supports a contact AC voltage rating of 250 V ac and switch contact current up to 26 A for high current applications.

Terminal type is quick connect for efficient and secure wiring during installation. Designed to work in a temperature range of -25°C to 85°C, ensuring reliability over extended environments. Complies with UL and other safety certifications including UL 94 V-0 and V-2 flame retardancy standards.

Applications include industrial control instruments, medical devices, security monitoring, vehicle peripherals, audio-visual and energy storage equipment.
