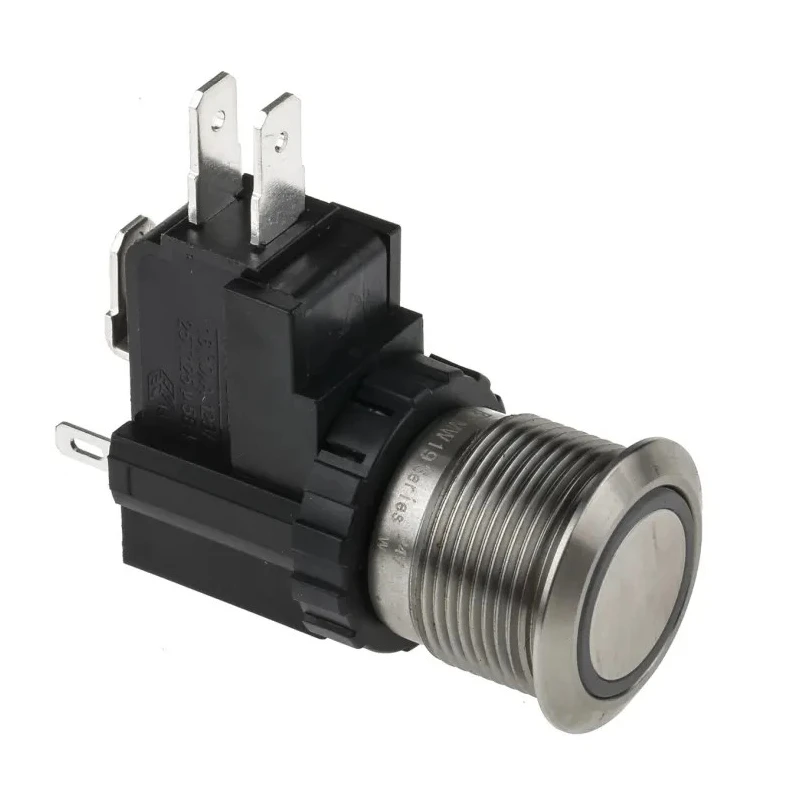

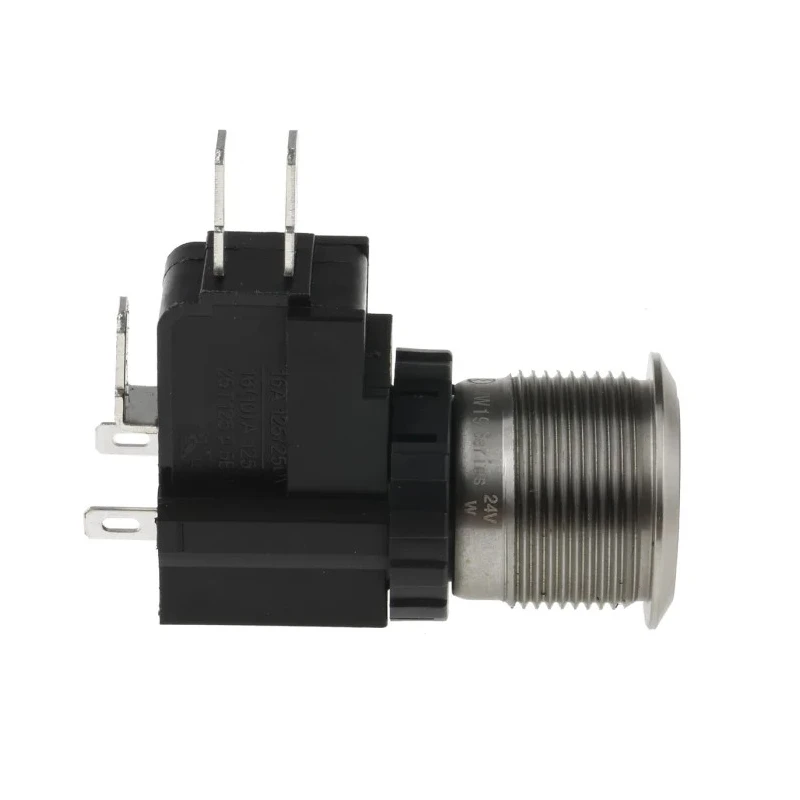

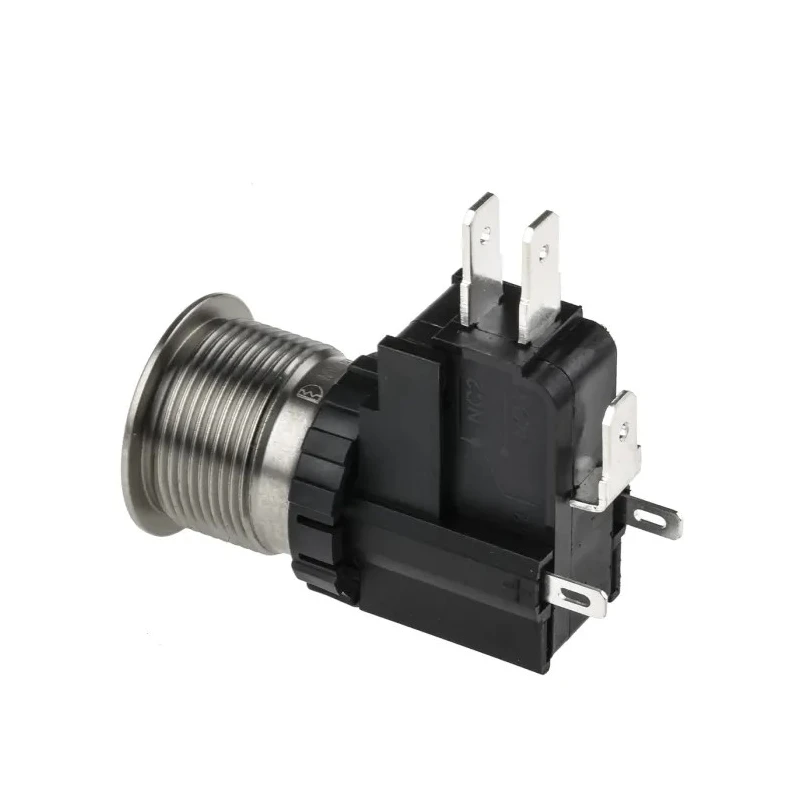

RS PRO Illuminated Push Button Switch Latching Panel Mount 19.1 mm Cutout SPDT White LED IP67 12 V dc 250 V ac 175-8057

RS PRO 175-8057 Illuminated Push Button Switch is a latching switch designed for reliable panel mounting applications requiring a 19.1 mm cutout size. This switch features a Single Pole Double Throw (SPDT) contact configuration with a white LED illumination providing clear visual feedback.

It offers an IP67 ingress protection rating, ensuring outstanding resistance to dust and water, making it suitable for heavy industrial environments. The flat actuator style coupled with a quick connect terminal enhances ease of installation and operation. This push button switch operates safely at contact voltages of 12 V dc and 250 V ac, with high switch contact currents rated at 16 A and 26 A to support demanding electrical loads.

Certified to multiple international standards such as cULus Recognized, EC18, EN18, and UL 94 V-0/V-2, this switch is built to enhance safety and durability. It is capable of functioning reliably within a wide temperature range from -25°C up to 85°C, accommodating a variety of industrial and commercial applications.

The design also allows for maintenance convenience, as the micro-switch and bushing are replaceable, reducing downtime and improving serviceability. The power symbol legend on the actuator enhances user understanding and operational safety.

This model is ideal for use in industrial control instruments, medical equipment, security monitoring devices, vehicle peripherals, audio-visual systems, and energy storage equipment, providing a versatile solution across sectors.

This push button switch features an IP67 rating for dust and water resistance. Operates at 12 V dc and 250 V ac contact voltages for versatile applications. Equipped with a quick connect terminal type and a flat actuator style for ease of use.

High switch contact current of 16 A and 26 A suitable for industrial control instruments. Rated for operating temperatures from -25°C to 85°C for reliability in various environments. Complies with multiple standards including cULus Recognized, EC18, EN18, and UL 94 V-0 / V-2 ratings.

Includes power symbol legend on the switch for clear identification. Manufactured in Taiwan, Province Of China with high-quality build and replaceable microswitch and bushing for convenience. Ideal for applications in industrial control, medical equipment, security monitoring, vehicle peripherals, audio-visual, and energy storage equipment.
