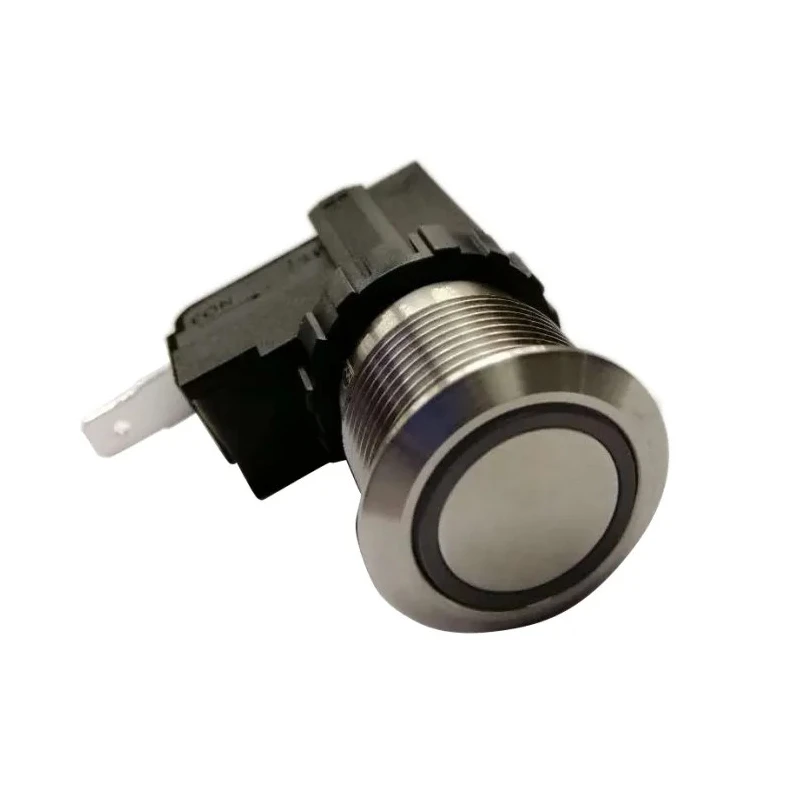

RS PRO Push Button Switch Latching Panel Mount 19.1 mm Cutout SPST IP67 12 V dc 250 V ac 175-8033
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-8033 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 19.1 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | cULus Recognized, EC18, EN18, UL 94 V-0, UL 94 V-2 |
| Switch Operation | Latching |
| Contact DC Voltage | 12V dc |
| Actuator Style | Flat |
| Switch Contact Current | 16, 26A |
| Contact AC Voltage | 250V ac |
| Legend | Power Symbol |
Key Features
- High current anti-vandal design suitable for industrial use.
- Micro-switch and bushing are replaceable for easy maintenance.
- Flat actuator style with a power symbol legend for clear indication.
- Compatible with a range of indicator options including ring and power symbol indicators.
- Quick connect terminal type ensuring fast and reliable connections.
- Operates within a temperature range of -25°C to 85°C.
- IP67 rated for protection against dust and water ingress.
- Meets industry standards including cULus Recognized, EC18, EN18, and UL 94 V-0/V-2 ratings.
Product Description
RS PRO 175-8033 Push Button Switch is a latching type switch designed for panel mounting with a 19.1 mm cutout size, configured as a Single Pole Single Throw (SPST) switch. It supports DC voltage up to 12 V and AC voltage up to 250 V, making it suitable for a wide range of electrical and industrial control applications.
This push button switch features an IP67 rating, providing excellent protection against dust and water ingress, suitable for harsh industrial environments. The flat actuator design is complemented by a power symbol legend for intuitive operation and clear user feedback.

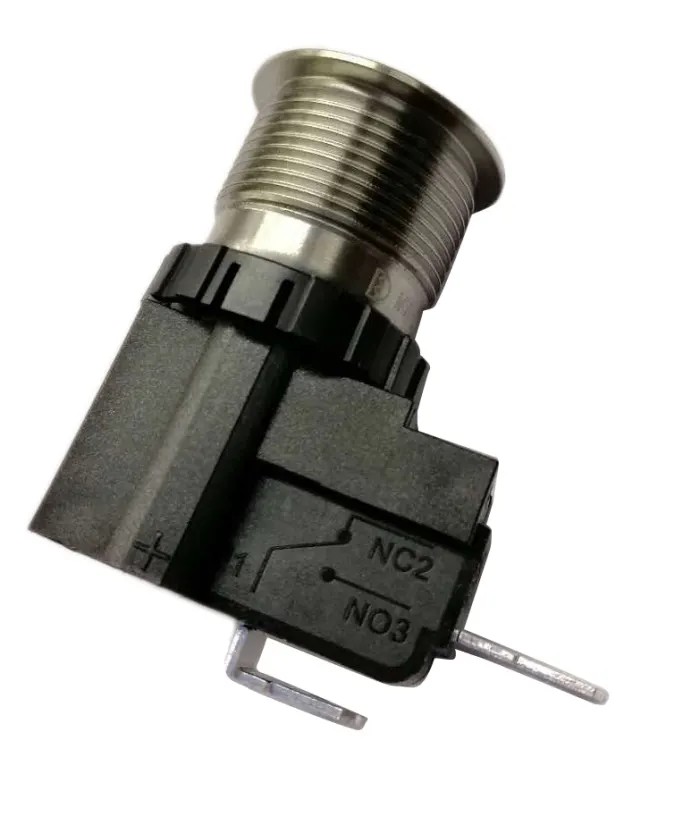

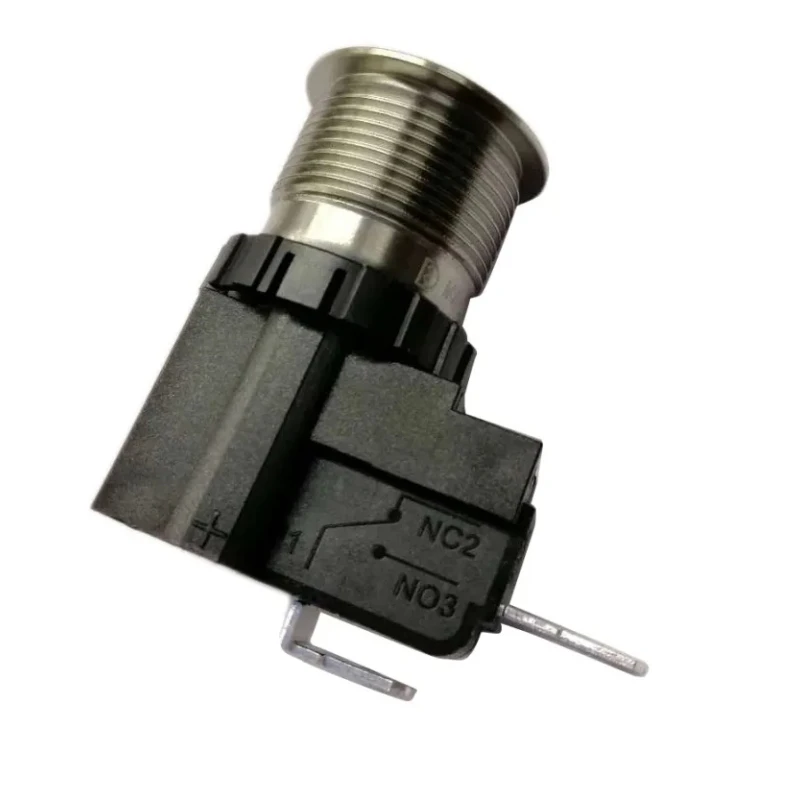

The switch incorporates a high current anti-vandal construction (MW Series), with micro-switch and bushing components that are replaceable, enhancing maintainability and convenience for end users. Quick connect terminals facilitate rapid wiring and secure electrical connections.
Operating reliably within temperatures ranging from -25°C to 85°C, this switch is compliant with multiple safety and quality standards including cULus Recognized, EC18, EN18, and UL 94 V-0 and V-2 flame retardant ratings, ensuring robust performance in demanding applications.
Typical use cases include industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual devices, and energy storage equipment, where reliable on/off control and environmental resistance are critical.
High current anti-vandal design suitable for industrial use. Micro-switch and bushing are replaceable for easy maintenance. Flat actuator style with a power symbol legend for clear indication. Compatible with a range of indicator options including ring and power symbol indicators.
Quick connect terminal type ensuring fast and reliable connections. Operates within a temperature range of -25°C to 85°C. IP67 rated for protection against dust and water ingress. Meets industry standards including cULus Recognized, EC18, EN18, and UL 94 V-0/V-2 ratings.
Explore a wide range of push button switches and components at EnvMart for your industrial automation and control needs.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch has an IP67 rating, providing protection against dust and water ingress, making it suitable for harsh industrial environments.
It operates reliably within a maximum temperature of 85°C.
This switch features a Single Pole Single Throw (SPST) contact configuration.
It supports a DC voltage of up to 12 V and an AC voltage of up to 250 V.
It utilizes quick connect terminals, ensuring fast and reliable connections.
The required panel cutout size for this switch is 19.1 mm.
The actuator style is flat, featuring a power symbol legend for clear indication.
It is compliant with multiple standards including cULus Recognized, EC18, EN18, and UL 94 V-0 and V-2 ratings.
The minimum operating temperature is -25°C.
It is suitable for applications such as industrial control instruments, medical equipment, security monitoring systems, and audio-visual devices.
Yes, the micro-switch and bushing are designed to be replaceable for easy maintenance.
The switch has a contact current rating of 16A to 26A.
