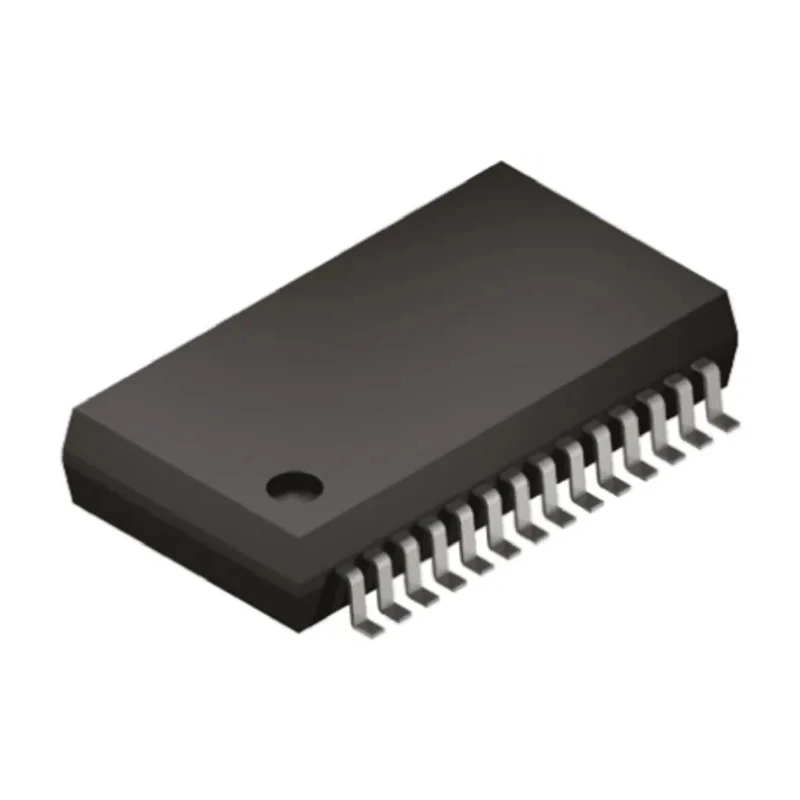

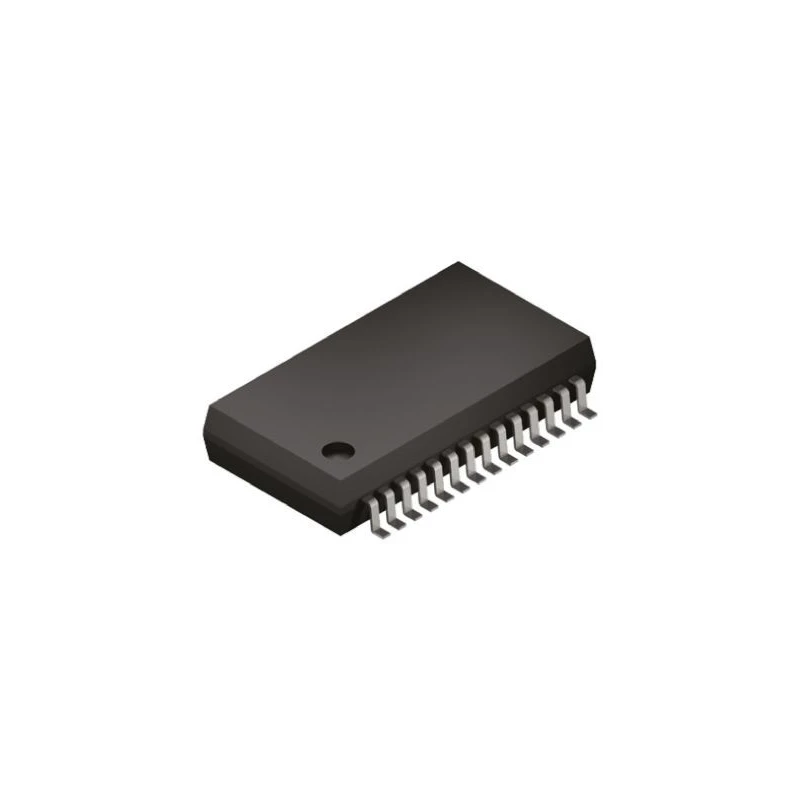

Microchip PIC16F1788-I/SS 8 bit PIC16F Microcontroller 32 MHz 28-Pin SSOP PIC16F1788-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 10.5mm |
| Model | PIC16F1788-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | Graphical User Interface |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 4 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Features 28 kB of FLASH program memory for robust application storage.
- Contains 2 kB of RAM to support efficient data handling.
- Operates within a voltage range of 2 V to 6 V, ensuring flexible power supply options.
- Supports 25 programmable I/O pins for versatile interfacing.
- Equipped with multiple peripherals including ADCs, DAC, timers, comparators, and MCCP modules.
- Temperature operating range from -40°C to 85°C suitable for industrial conditions.
- Compliant with RoHS standards for environmental safety.
- Compact dimensions with length 10.5 mm, width 5.6 mm, and height 1.85 mm.
Product Description
Microchip PIC16F1788-I/SS is a high-performance 8 bit PIC16F microcontroller designed for versatile embedded applications. Operating at a maximum clock frequency of 32 MHz, this microcontroller belongs to the PIC16F series and comes in a compact 28-Pin SSOP surface-mount package. It incorporates enhanced mid-range RISC architecture with a 16-level deep hardware stack supporting 49 instructions for efficient processing.
This device features 28 kB of FLASH program memory, 2 kB RAM, and 25 programmable I/O pins enabling rich peripheral interfacing. The microcontroller operates within a supply voltage range of 2 to 6 V and dissipates a maximum power of 800 mW, making it suitable for power-sensitive industrial applications.
With industrial temperature support ranging from -40°C to 85°C, the PIC16F1788-I/SS is built to perform reliably in harsh environments. It includes advanced peripherals such as 11 channels of 12-bit ADCs for precise analogue to digital conversion, 8-bit DAC, multiple capture/compare/PWM modules, operational amplifiers, four comparators, and timers.
The device supports essential embedded features like Power-On Reset, Brown-Out Reset, programmable watchdog timer, and enhanced low-voltage and in-circuit programming/debugging capabilities. It complies with RoHS standards, ensuring environmental safety and compliance.
Typical industrial applications include automotive electronics, sensor interfacing, consumer electronics, and embedded control systems. Its compact SSOP package with dimensions of 10.5 mm length, 5.6 mm width, and 1.85 mm height enables space-efficient PCB design.
28 kB FLASH memory for program storage. 2 kB RAM for data processing. 32 MHz maximum CPU speed for high performance. Supports 25 programmable I/O for flexible design. Operates across wide temperature and voltage ranges. Includes multiple ADC channels and communication interfaces.
RoHS compliant for safe environmental standards. Compact 28-pin SSOP form factor. Explore our extensive Microchip PIC Microcontrollers to find the best fit for industrial and embedded system needs here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features 28 kB of FLASH program memory for application storage.
This microcontroller operates within a supply voltage range of 2 V to 6 V.
It supports 25 programmable I/O pins for versatile interfacing.
The operating temperature range is from -40°C to 85°C, suitable for industrial applications.
The dimensions are 10.5 mm in length, 5.6 mm in width, and 1.85 mm in height.
It includes multiple peripherals such as 11 channels of 12-bit ADCs, an 8-bit DAC, timers, and comparators.
The maximum power dissipation is 800 mW.
It comes in a compact 28-Pin SSOP surface-mount package.
Yes, it is compliant with RoHS standards for environmental safety.
It utilizes a RISC instruction set architecture for efficient processing.
This microcontroller includes 4 analogue comparators.
