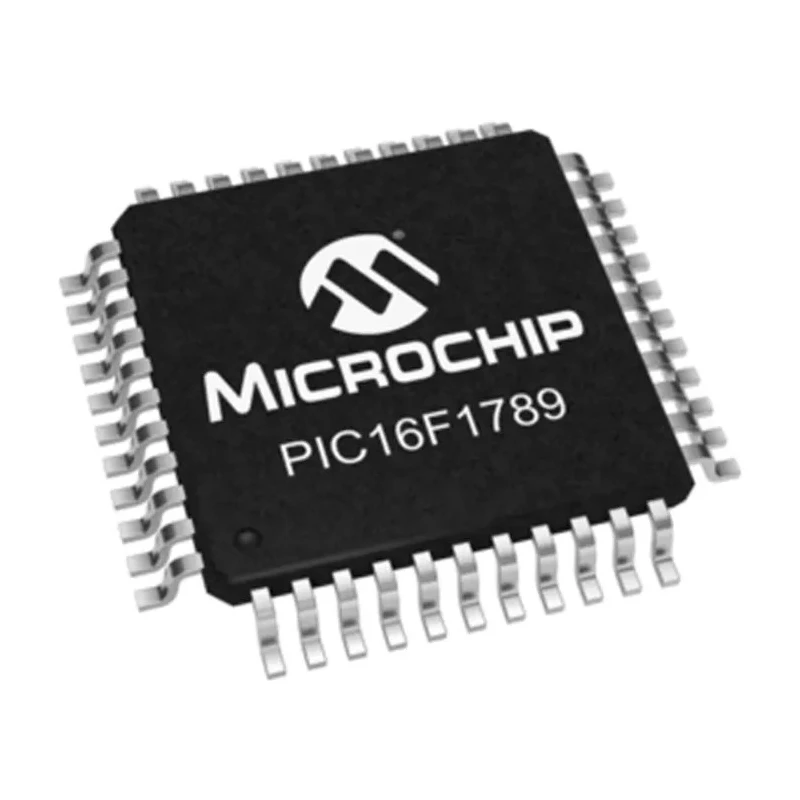

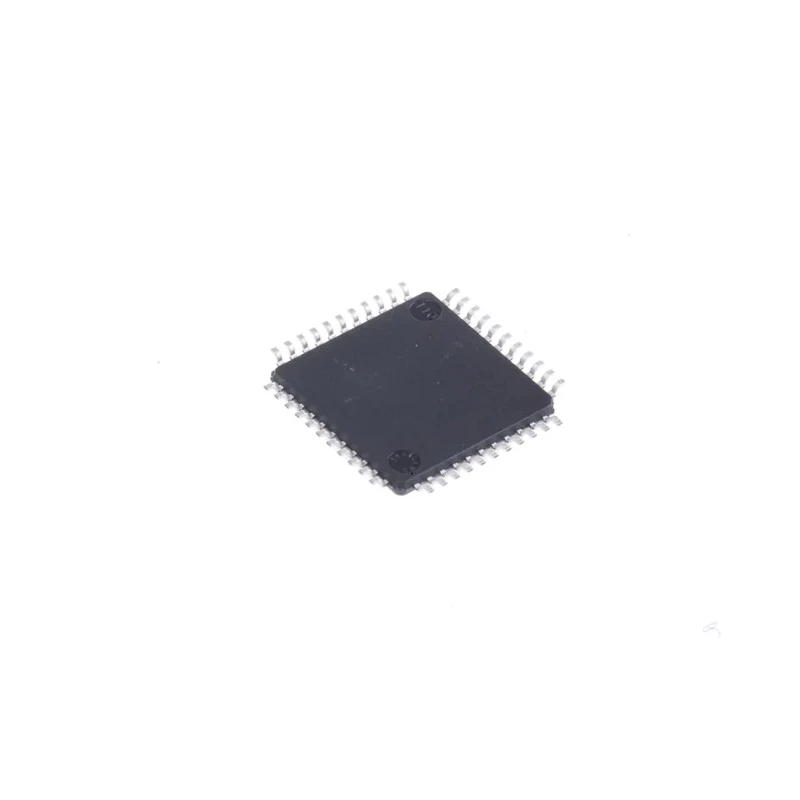

Microchip PIC16F1789-I/PT 8 bit PIC16F Microcontroller 32 MHz FLASH 44-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC16F1789-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | SCI |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 4 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 8 bit |
Key Features
- Features 28 kB FLASH program memory and 2 kB RAM for robust processing power.
- Operates with a data bus width of 8-bit and uses RISC instruction set architecture.
- Supports up to 33 programmable input/output pins for flexible interfacing.
- Includes 15 channel 12-bit ADCs, 8-bit DACs, and multiple comparators.
- Integrates advanced peripherals like CCP modules, operational amplifiers, and timers.
- Device supports surface mount type and meets RoHS standards for environmental compliance.
- Operates reliably across a temperature range from -40°C to 85°C with low power dissipation of 1W.
- Provides enhanced mid-range core performance with up to 8 MIPS execution speed.
Product Description
The Microchip PIC16F1789-I/PT is a high-performance 8-bit PIC microcontroller designed for a wide range of industrial and embedded applications. It features a 32 MHz maximum clock frequency with an enhanced mid-range RISC architecture, providing efficient processing with low power consumption.
Equipped with 28 kB of FLASH program memory and 2 kB of RAM, this MCU supports complex program execution and data processing. The 44-pin TQFP surface mount package offers a compact form factor measuring 10 mm by 10 mm, suitable for space-constrained designs.
Peripheral integration includes 15 channels of 12-bit Analog-to-Digital Converters (ADCs), 8-bit Digital-to-Analog Converters (DACs), four analog comparators, various timers, capture/compare/PWM modules, and operational amplifiers, enhancing its utility in sensing, signal processing, and control tasks.
With 33 programmable I/O pins and interfaces such as SCI, SPI, I2C, and EUSART, the PIC16F1789-I/PT allows for flexible connectivity and communication options.
Robustness is ensured by its operating voltage range spanning 2 V to 5.5 V, a maximum power dissipation of 1 W, and an operating temperature range from -40°C to 85°C. Additional features such as power-on reset, brown-out reset, watchdog timer, and low-voltage programming add reliability and ease of development.
28 kB FLASH program memory and 2 kB RAM. 32 MHz maximum clock frequency and 8 MIPS processing speed. 44-Pin TQFP package with surface mount type. 15 channel 12-bit ADCs and 8-bit DACs for mixed-signal conversion. Multiple timers, comparators, and PWM modules integrated.
Wide voltage operation range (2 V to 5.5 V) with low power consumption. Supports advanced serial communication interfaces (SCI, SPI, I2C, EUSART). Operating temperature from -40°C to 85°C for industrial applications. Meets RoHS compliance and environmental standards.
This microcontroller is suitable for a variety of industrial applications, including automation, automotive systems, consumer electronics, and communication devices. Its rich peripheral set and efficient architecture enable complex control and sensing functionalities in embedded system designs.
Explore the extensive range of Microchip Microcontrollers on EnvMart for reliable, high-quality semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features 28 kB of FLASH program memory.
This microcontroller supports up to 33 programmable input/output pins.
The operating temperature range is from -40°C to 85°C.
It comes in a 44-pin TQFP (Thin Quad Flat Package) surface mount package.
This model has a RAM size of 2 kB.
It includes 15 channels of 12-bit Analog-to-Digital Converters (ADCs).
The maximum power dissipation is 1 W.
It supports various interfaces including SCI, SPI, I2C, and EUSART.
The operating voltage range is from 2 V to 5.5 V.
This microcontroller meets RoHS standards for environmental compliance.
It includes 2 timers for various timing applications.
