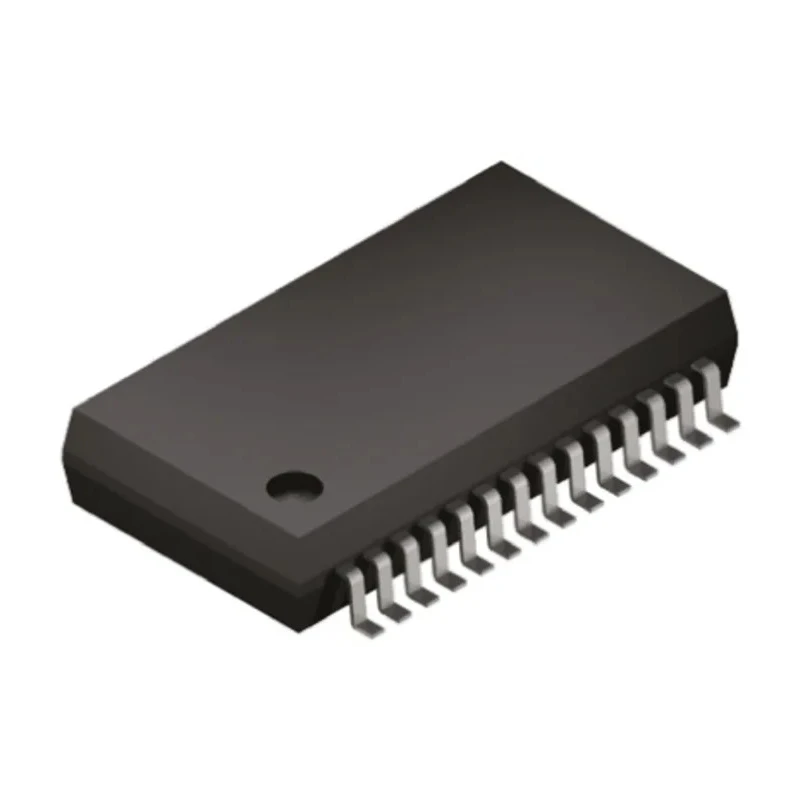

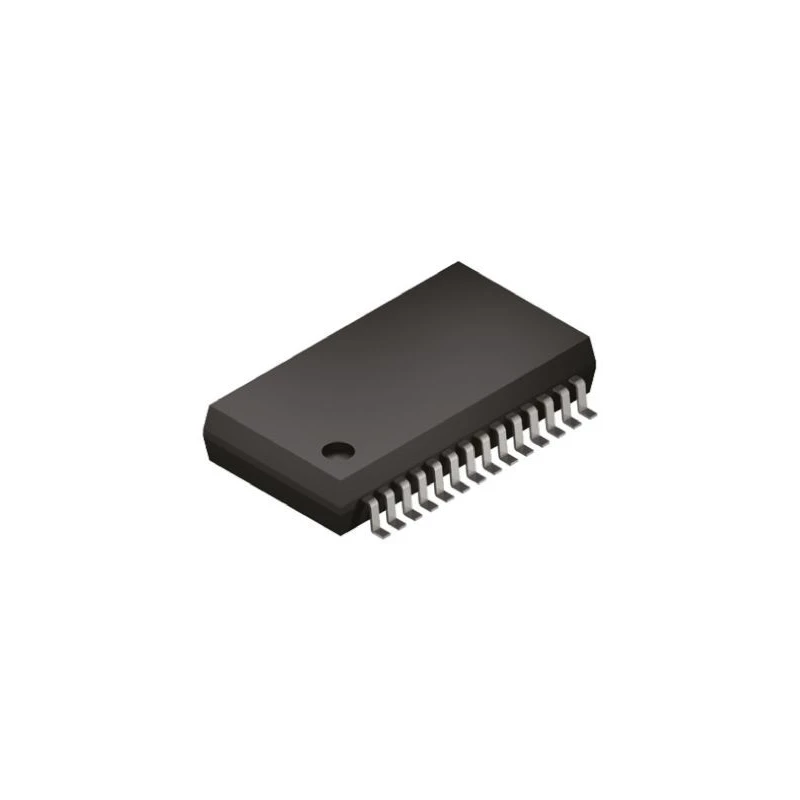

Microchip 8-bit PIC Microcontroller 20 MHz 3kB Flash 28-Pin SSOP PIC16F570-I/SS

Microchip PIC16F570-I/SS is an 8-bit PIC microcontroller designed for high-performance embedded applications, featuring a maximum CPU speed of 20 MHz and a 3kB FLASH program memory. This microcontroller is presented in a 28-pin SSOP surface mount package, providing 25 programmable I/O pins and an 8-bit data bus width.

Operating within a voltage range from 2V to 6V, the device supports robust power management with a maximum power dissipation of 800mW. It includes integrated peripherals such as an 8-channel 8-bit analogue-to-digital converter (ADC), two analogue comparators, and two operational amplifiers enhancing its sensing capabilities.

The PIC16F570-I/SS employs a RISC instruction set architecture with 36 instructions optimized for efficient coding and supports a 4-level hardware stack for enhanced function call management. It features multiple reliability functions including power-on reset, brown-out reset, watchdog timer, and device reset timer to ensure stable operation in demanding environments.

Physical specifications measure 10.5mm in length, 5.6mm in width, and 1.85mm in height, ideal for high-density PCB designs and surface mounting. The microcontroller is capable of operation across wide industrial temperature ranges from -40°C up to 85°C, suited to automotive and industrial applications.

Operates at 20 MHz maximum clock frequency. 3kB FLASH program memory storage with in-circuit serial programming capability. 25 Programmable input/output pins for versatile interfacing. Includes an 8-channel, 8-bit ADC for analogue input.

Power-on reset, brown-out reset, watchdog timer for system reliability. RISC architecture with a 4-level hardware stack for efficient instruction execution. Compact 28-pin SSOP surface mount package for space-saving design.

Operating voltage range from 2V to 6V supports flexible power supplies. Wide operating temperature range between -40°C and +85°C for harsh environments.

This microcontroller is suitable for industrial automation, embedded control systems, automotive applications, and consumer electronics requiring efficient and reliable 8-bit processing. It provides design flexibility with its integrated peripherals and low power consumption features. It is compatible with popular development tools and supported by Microchip's comprehensive software libraries.
