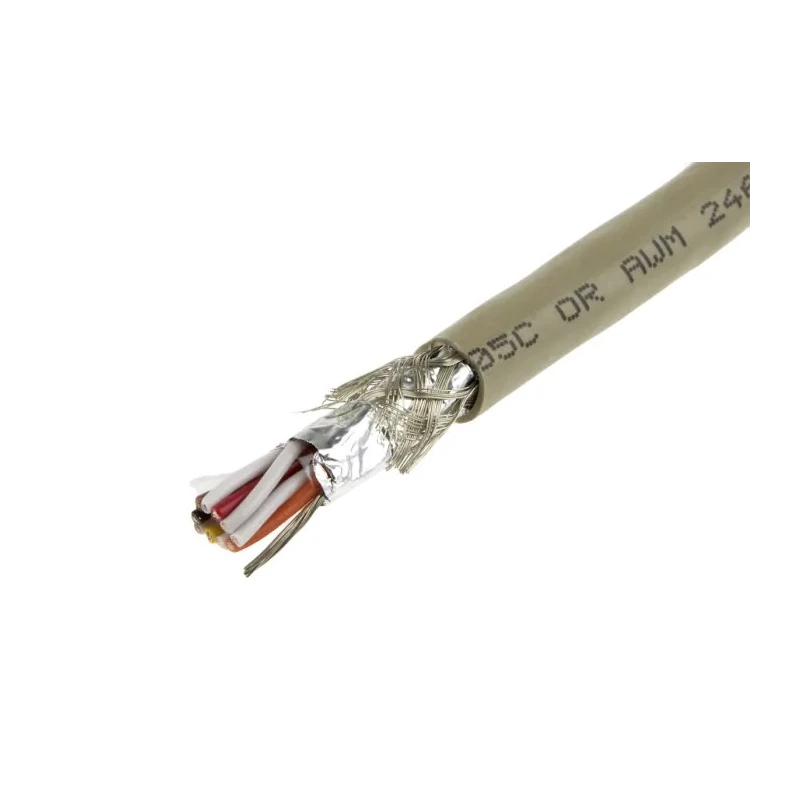

Alpha Wire Pro-Tekt Series Data Cable 5 Pairs 10 Cores 0.23 mm² 100 m Grey Sheath Polyvinyl Chloride B963054 GE033
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23 mm² |
| Model | B963054 GE033 |
| Cable Length | 100m |
| Series | Pro-Tekt |
| Outside diameter | 7.39mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.291 inch (7.39 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 5 |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
| Pairs | 5, White + Black, White + Brown, White + Red, White + Orange, White + Yellow |
Key Features
- The cable supports a voltage rating of 300V suitable for industrial usage.
- Constructed with 7-strand tin copper wire conductors for enhanced flexibility.
- Features a flame-retardant, grey PVC jacket providing durability and resistance.
- Operating temperature range from -30°C to 105°C suitable for varied industrial conditions.
- Includes colour-coded pairs for ease of identification and installation.
- Designed with a nominal diameter of 7.39 mm for compact installation.
- Meets multiple international standards including CE, CSA, and UL certifications.
- The cable jacket and insulation resist UV exposure and oil for long-term reliability.
Product Description
Alpha Wire B963054 GE033 Pro-Tekt Series Data Cable is a high-performance electrical Data Cable designed for demanding industrial and automation applications. It features 5 pairs (10 cores) of 0.23 mm² conductor cross-sectional area with a sturdy grey polyvinyl chloride (PVC) jacket known for its flame retardant properties and durability.
Engineered with 7 strands of 32 AWG tin copper wire, these conductors facilitate excellent flexibility and reliable electrical performance. The cable's nominal diameter is 7.39 mm with a jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.010 inch (0.25 mm), making it compact yet robust.
Its operating temperature range spans from -30°C to 105°C, making it suitable for a wide array of industrial environments including automation, commercial electronics, aerospace, and medical device manufacturing. The polyvinyl chloride sheath offers resistance against abrasion, UV light, and oil, ensuring resilience in harsh settings.
This cable complies with international standards such as CE, CSA, and UL, ensuring safety and reliability. The colour-coded pairs (e.g., White + Black, White + Brown, White + Red, White + Orange, White + Yellow) allow straightforward wiring and maintenance.
Alpha Wire's Pro-Tekt series combines foil and braid shieldings for excellent electromagnetic resistance and low noise interference, supporting sensitive data transmission in machinery and instrumentation.
The cable supports a voltage rating of 300V appropriate for industrial power and signal transmission. The stranded tin copper conductors enhance flexibility and ease of connector termination. Flame retardant PVC jacket increases safety in installation environments.
Wide operating temperature range for diverse industrial applications. Colour-coded pairs improve circuit identification and speed of installation. Nominal diameter and jacket thickness optimize space usage while maintaining protection.
Certified under CE, CSA, and UL standards for assured quality and compliance. Resistant to oil and UV exposure prolonging cable life in demanding environments.
This Pro-Tekt cable is ideal for use in industrial automation, aerospace systems, petrochemical plants, commercial electronics, and medical instrumentation, providing reliable data integrity and power transmission. Its advanced design enables combining data and power cores in a single cable, simplifying installation complexity and minimizing cable bulk.
Browse EnvMart categories for similar high-quality industrial cables and wires for your professional projects and needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable supports a voltage rating of 300V, making it suitable for industrial power and signal transmission.
It operates within a temperature range of -30°C to 105°C, suitable for various industrial environments.
This cable features 10 cores, organized into 5 pairs.
The conductors are made from 7-strand tin copper wire, and the jacket is constructed from flame-retardant polyvinyl chloride (PVC).
The nominal diameter of the cable is 7.39 mm, with a jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.010 inch (0.25 mm).
Yes, it complies with multiple international standards including CE, CSA, and UL certifications, ensuring safety and reliability.
The cable includes colour-coded pairs: White + Black, White + Brown, White + Red, White + Orange, and White + Yellow for ease of identification.
This model has a length of 100 meters.
It is designed for use in industrial automation, aerospace systems, petrochemical plants, commercial electronics, and medical instrumentation.
The jacket is flame-retardant, enhancing safety during installation.
The combination of foil and braid shielding provides excellent electromagnetic resistance and low noise interference, supporting sensitive data transmission.
The cable features 7 strands of 32 AWG tin copper wire, which enhances flexibility and facilitates reliable electrical performance.
