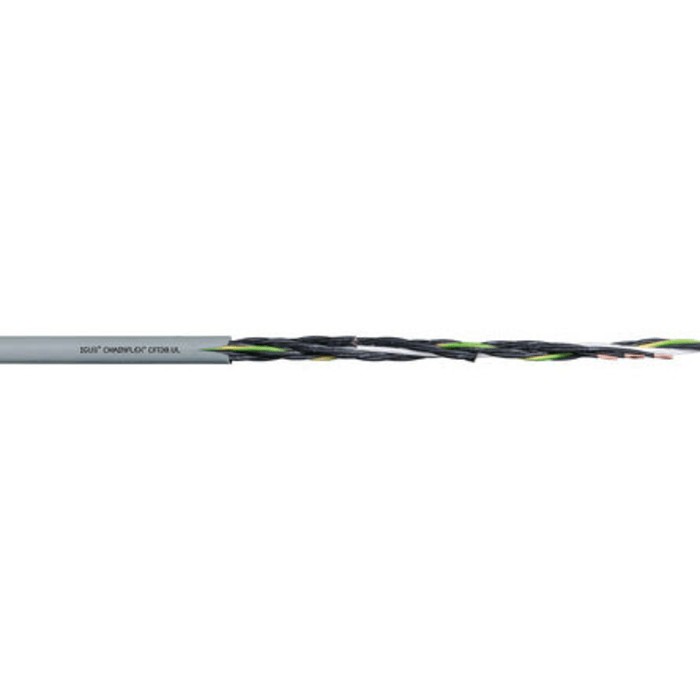

Igus Chainflex CF130.UL Control Cable, 18 Cores, 1.5mm² 15AWG, Unscreened, Armoured, 25 m, Grey Thermoplastic CF130.15.18.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Igus |
| Model | CF130.15.18.UL |
| Cable Length | 25m |
| Series | Chainflex CF130.UL |
| Outside diameter | 16.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 18 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- This control cable is designed for medium load applications with torsion resistance and flame-retardant properties.
- Its silicon-free construction ensures no influence of oil, ideal for indoor use.
- The cable supports freely suspended travel distances and gliding applications up to 50 meters, conforming to Class 2 standards.
- The outer sheath is a low-adhesion PVC-based mixture, compliant with DIN VDE 0282 Part 10 for use in energy chains.
- Operating temperature range is from -5°C minimum to 70°C maximum with a voltage rating of 300V.
- It meets IEC 60332-1-2, CEI 20-35, FT1, VW1 flame-retardant standards and has CE and EN approvals.
- Manufactured in Germany, this cable is suitable for industrial automation, electrical, and control applications.
Product Description
Igus CF130.15.18.UL Control Cable is an armoured, unscreened cable featuring 18 cores with stranded bare copper conductors of 1.5mm² cross-section, corresponding to 15 AWG. It is sheathed with a grey thermoplastic elastomer optimized for durability and reliability in automation and control environments.
Designed for medium load requirements, this cable is silicon-free and resistant to oil influence, making it preferable for indoor use. Its flame-retardant characteristics comply with IEC 60332-1-2, CEI 20-35, FT1, and VW1 standards, ensuring safety in industrial and manufacturing settings.
The cable supports freely suspended travel distances and gliding applications up to 50 meters under Class 2 performance, suitable for dynamic machine installations where flexibility and torsion resistance are essential.
The outer sheath consists of a low-adhesion PVC-based mixture compliant with DIN VDE 0282 Part 10, specially adapted for use in energy chains. Its cable diameter is 16.5 mm, and the voltage rating is 300 V, with an operational temperature from -5 °C to 70 °C.
This control cable complies with CE and EN standards and is manufactured in Germany, assuring quality and reliability for electrical power and industrial cables applications. This control cable is designed for medium load applications with torsion resistance and flame-retardant properties.
Its silicon-free construction ensures no influence of oil, ideal for indoor use. The cable supports freely suspended travel distances and gliding applications up to 50 meters, conforming to Class 2 standards. The outer sheath is a low-adhesion PVC-based mixture, compliant with DIN VDE 0282 Part 10 for use in energy chains.
Operating temperature range is from -5°C minimum to 70°C maximum with a voltage rating of 300V. It meets IEC 60332-1-2, CEI 20-35, FT1, VW1 flame-retardant standards and has CE and EN approvals. Manufactured in Germany, this cable is suitable for industrial automation, electrical, and control applications.
Explore more offerings from the Electronics & Electricals Control Cable category at EnvMart for diverse industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this control cable is 300V.
The maximum operating temperature for the Igus CF130.UL control cable is 70°C.
This control cable features 18 cores.
The conductors in this cable are made of stranded bare copper.
The outer diameter of the Igus CF130.UL control cable is 16.5 mm.
The outer sheath is made from a low-adhesion PVC-based mixture, adapted for use in energy chains.
The Igus CF130.UL control cable is unscreened.
This cable complies with CE, EN, and flame retardant standards including IEC 60332-1-2, CEI 20-35, FT1, and VW1.
The minimum operating temperature for the Igus CF130.UL control cable is -5°C.
This control cable is suitable for industrial automation, electrical, and control applications.
The length of this control cable is 25 meters.
This control cable is manufactured in Germany.
