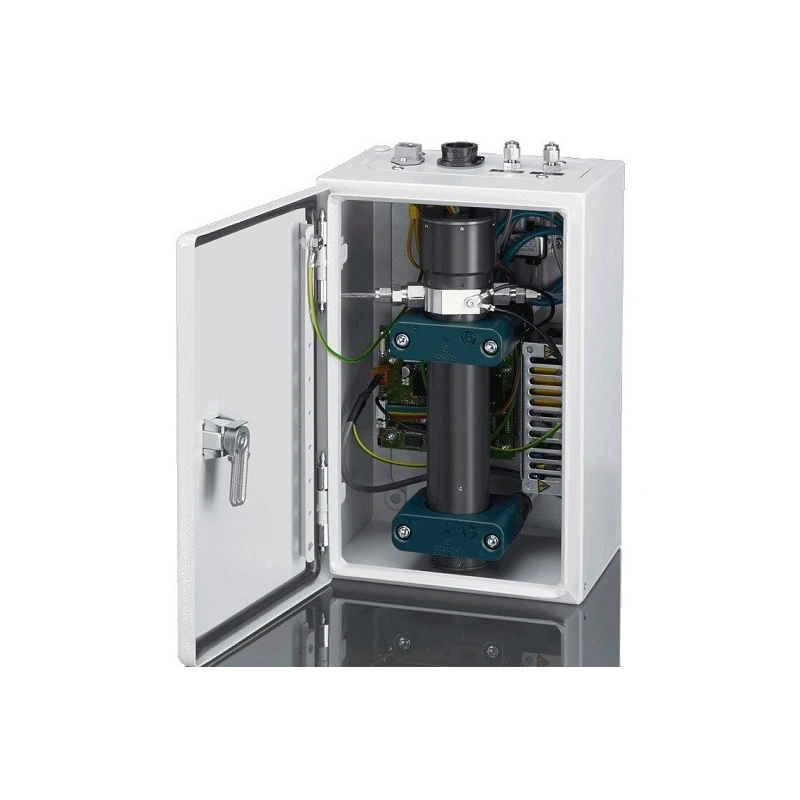

Online Particle Counter For Filter Test Rings PAMAS 4132

Name: Online Particle Counter For Filter Test Rings PAMAS 4132
Brand: PAMAS
SKU: ABJNM
Price: 11.59 USD
Availability: InStock



SKU ABJNM Category Particle Counters Brand PAMAS Condition New

Specifications

Size	from 300 mm x 200 mm x 155 mm (L x W x H)
Power Supply	100 - 240 V AC / 50-60 Hz
Fluid temperature	0-60 C
Volumetric particle sensor (PAMAS HCB-LD-50/50) Calibration range	1-400 m according to ISO 21501 1-100 m according to ISO 4402 4-70 m(c) according to ISO 11171
Volumetric particle sensor (PAMAS HCB-LD-50/50) Maximum particle concentration	24000 p/ml at a flow rate of 25 ml/min
Calibration temperature	20 or 40 C
Volumetric particle sensor (PAMAS HCB-LD-25/25) Calibration range	1-200 m according to ISO 21501\| 1-100 m according to ISO 44024\|-70 m(c) according to ISO 11171
Volumetric particle sensor (PAMAS HCB-LD-25/25) Maximum particle concentration	120000 p/ml at a flow rate of 25 ml/min

Key Features

High performance

Product Description

The PAMAS 4132 is used as a particle counting system for Single & Multipass Filter test rigs. The standard system fits in the test rigs of filter manufacturers.In the case of a Single Pass Filter Test, the liquid passes the filter only once and then is deviated to the outflow. For Beta -ratio-analyses, the Single Pass Filter Test can be performed with two PAMAS 4132 instruments.Two PAMAS 4132 instruments - equipped with 32 size channels each - are also used for the Multipass Filter Test. This test rig with two particle counters allows simultaneous upstream and downstream measurements. For the Multipass Filter Test, the liquid flows continuously through the system.The particle counting system PAMAS 4132 analyses liquids of various viscosity degrees (e.g. oil, fuel, water, etc.). The system is adaptable to any Multipass application and -ratio analysis

Online Particle Counter For Filter Test Rings PAMAS 4132

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The calibration range for the PAMAS HCB-LD-50/50 sensor is 1-400 µm according to ISO 21501, 1-100 µm according to ISO 4402, and 4-70 µm(c) according to ISO 11171.

The PAMAS HCB-LD-25/25 sensor can handle a maximum particle concentration of 120,000 particles per milliliter at a flow rate of 25 ml/min.

The fluid temperature range for this model is from 0 to 60 degrees Celsius.

This unit requires a power supply of 100 - 240 V AC at 50-60 Hz.

The dimensions of the PAMAS 4132 are 300 mm x 200 mm x 155 mm (L x W x H).

In the Single Pass Filter Test, the liquid passes through the filter only once before being deviated to the outflow. This test can be performed with two PAMAS 4132 instruments for Beta-ratio analyses.

It can analyze liquids of various viscosity degrees, including oil, fuel, and water.

The maximum particle concentration for the PAMAS HCB-LD-50/50 sensor is 24,000 particles per milliliter at a flow rate of 25 ml/min.

This model is used as a particle counting system for Single and Multipass Filter test rigs.

In the Multipass Filter Test, the liquid flows continuously through the system, and two PAMAS 4132 instruments are used for simultaneous upstream and downstream measurements.

Yes, the PAMAS 4132 is adaptable to any Multipass application and -ratio analysis.
