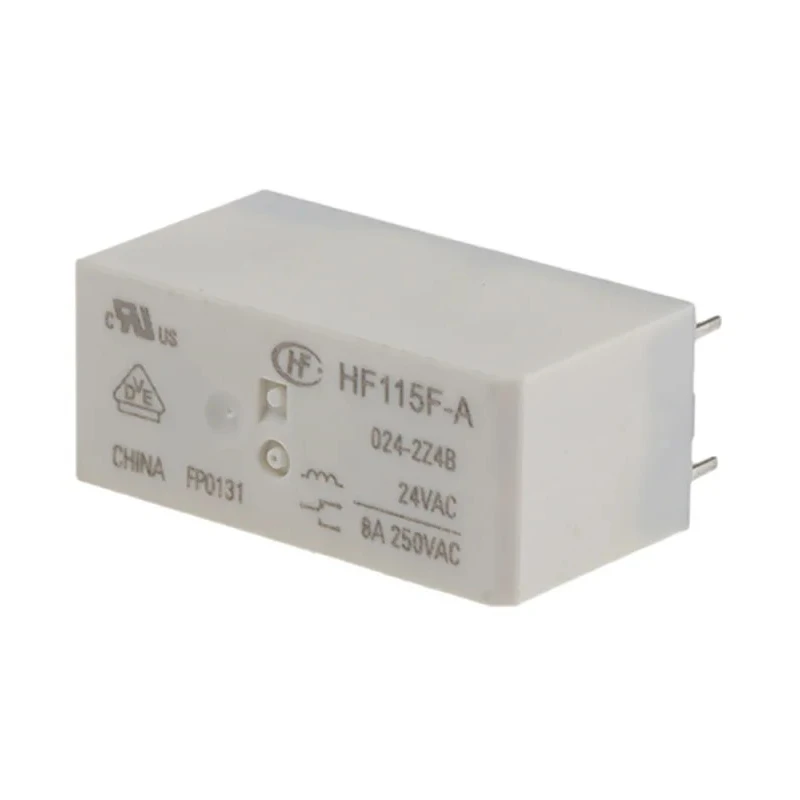

RS PRO PCB Power Relay 24V AC Coil 8A Switching Current DPDT 800-4463

RS PRO 800-4463 is a high-quality PCB power relay featuring a 24V AC coil and a double pole double throw (DPDT) contact configuration. This non-latching relay is designed to reliably control electrical circuits in automated systems, making it particularly suitable for push-button input applications such as keyboards and micro-controller input interfaces.

Designed for PCB mounting with through-hole solder terminals, the relay offers ease of integration into printed circuit boards. It consumes 750 milliwatts of coil power with a coil resistance of 350 ohms, providing efficient coil operation. The silver alloy contact material ensures excellent conductivity and durability, maintaining low contact resistance of 100 milliohms to minimize energy loss.

The relay supports switching of AC voltages up to 440 volts and DC voltages up to 300 volts, with a maximum switching power capacity of 3kVA. It is rated for a switching current of 8 amperes, making it suitable for various industrial and commercial electrical applications.

Its mechanical design allows for one million mechanical operations and up to 50,000 electrical switching cycles, ensuring a long service life. The component operates reliably within a wide temperature range of -40°C to 70°C, allowing use in diverse environmental conditions.

The compact form factor with dimensions 29mm (length), 12.7mm (width), and 15.7mm (height) saves PCB space while ensuring performance. The part complies with international standards including CQC and UR, assuring quality and safety.

This power relay is ideal for industrial automation, electrical control systems, manufacturing equipment, and telecommunications hardware. Non-latching double pole double throw relay suitable for push-button applications.

PCB mounting with through-hole solder terminals for secure installation. Coil power of 750mW and coil resistance of 350Ω ensures efficient operation. Silver alloy contacts with 100mΩ contact resistance provide reliable switching.

Supports switching voltages of 440V AC and 300V DC with 8A switching current. Operating temperature range from -40°C to +70°C for versatile use. Compact dimensions: 29mm length, 12.7mm width, 15.7mm height. Long lifecycle: 1,000,000 mechanical and 50,000 electrical operations.

Certified to international standards including CQC and UR. Explore a wide range of Power Relays and electrical components at EnvMart for your industrial and automation needs.
