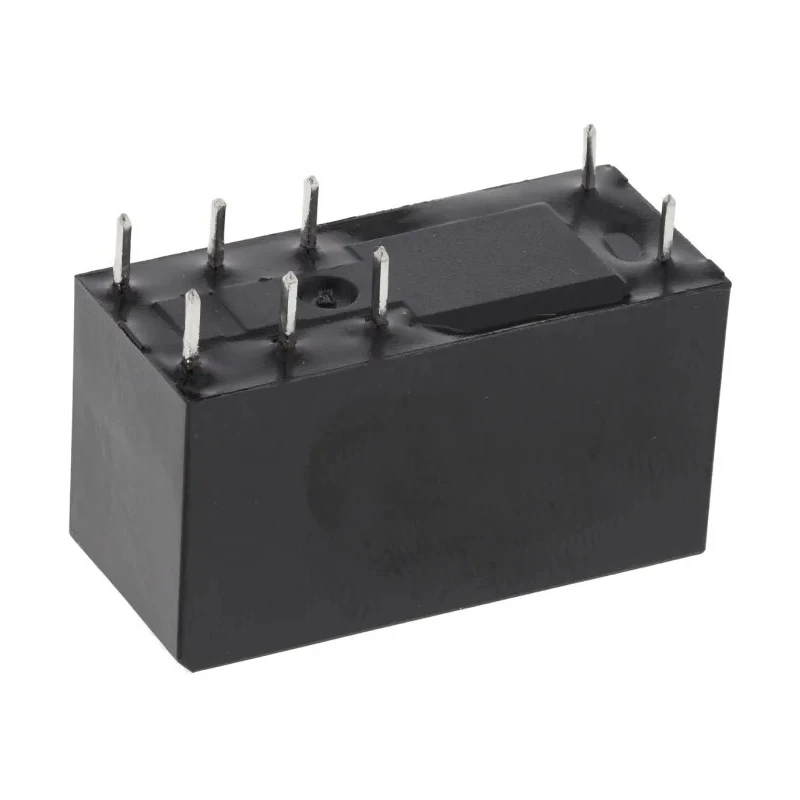

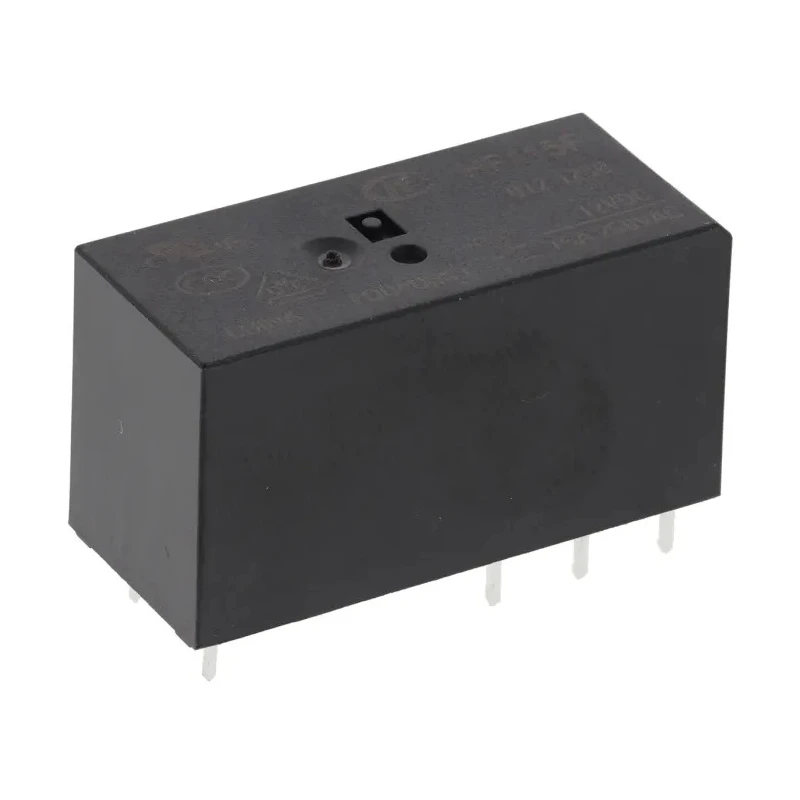

RS PRO PCB Power Relay 12V dc Coil 16A Switching Current SPDT 800-4448

RS PRO 800-4448 PCB Power Relay is a highly reliable single-pole double-throw (SPDT) relay with a 12V dc coil voltage and a switching current rating of 16A, designed primarily for PCB mounting applications. This relay offers a low profile design with a maximum height of 15.7mm, facilitating compact and efficient circuit layouts in a wide range of industrial and commercial electronic assemblies.

The relay features contacts made of silver alloy, providing excellent conductivity and low contact resistance of 100mΩ, which helps optimize electrical performance and reduce power losses. Its robust design supports a switching power of 3kVA, with the capability of switching voltages up to 440V AC and 300V DC.

Engineered for demanding environments, it operates reliably in temperature ranges from -40°C to 85°C and incorporates a high inrush current tolerance up to TV-5 80A at 125Vac, enhancing its suitability for high-load applications. The relay is also wash tight and features a creepage distance of 10mm, ensuring reliability in challenging environmental conditions.

Built with a coil resistance of 360Ω and power consumption of 400mW, this product offers efficient coil operation. The relay design includes 5mm pinning suitable for standard PCB layouts, providing convenient solder terminal connections.

Compliance with multiple standards and approvals such as UL File no. E134517, VDE File no. 116934, CQC File no. CQC02001001951, IEC 60335-1, and conformance to VDE 0435/0631/0700 ensures this relay meets rigorous quality and safety criteria used in industrial automation, power control, HVAC, manufacturing, and electrical equipment sectors.

The RS PRO 800-4448 relay is ideal for industrial, laboratory, construction, HVAC, and commercial electronics where reliable switching at moderate currents is required. Designed for PCB mounting to optimize space usage. Silver alloy contacts assure electrical reliability and durability.

High switching power of 3kVA with 16A current handling capability. Wide temperature operation from -40°C to 85°C for flexible use. Low profile design at 15.7mm max height fits compact electronics. 5kV dielectric strength ensures insulation safety between coil and contacts.

Surge voltage rating up to 10kV for transient immunity. Compliant with international safety and quality standards. Wash tight and creepage distance of 10mm enhance environmental resistance. Efficient coil operation with 360Ω resistance and 400mW power.
