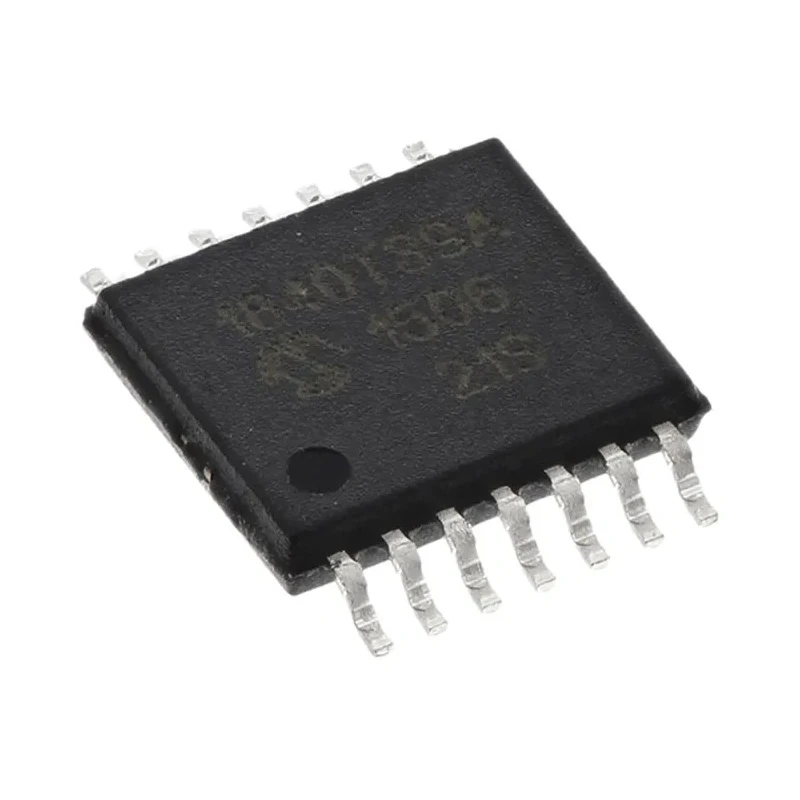

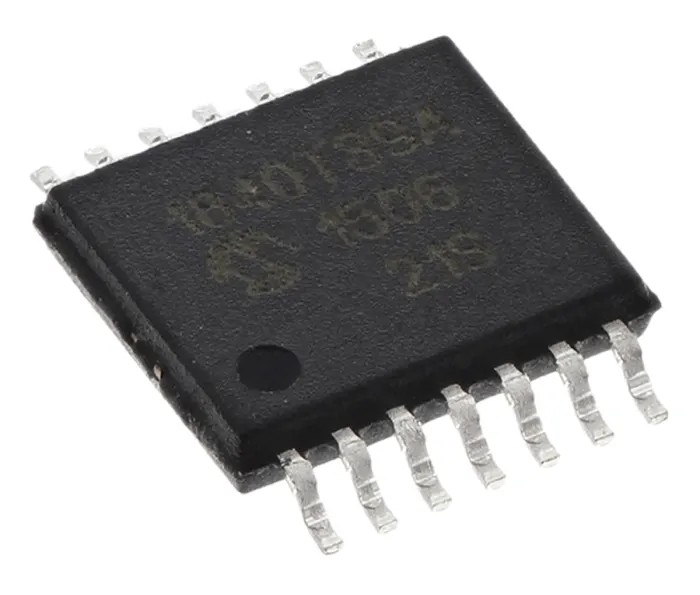

Microchip 8-bit PIC12F Microcontroller 32 MHz FLASH 14-Pin TSSOP PIC12LF1840T39A-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | PIC12LF1840T39A-I/ST |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | EUSART, I2C, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 7.2kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 1 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features an 8-bit PIC core with RISC architecture supporting 49 instructions.
- Includes 256-bit RAM and 7.2 kB FLASH program memory for efficient embedded control.
- Offers up to 25 programmable I/O pins and 4 x 10-bit ADC channels for analog signal conversion.
- Operates within a wide voltage range of 1.8 V to 5.5 V ensuring application flexibility.
- Supports extreme low power XLP technology and features 1 timer and 1 comparator for timing and analog comparison.
- Compact 14-pin TSSOP package measuring 5.1 mm length, 4.5 mm width, and 1.05 mm height.
- Meets RoHS standards and automotive standard ISO/TS 16949 for quality and compliance.
- Operating temperature range from -40 °C up to +85 °C for reliable industrial use.
Product Description
Microchip PIC12LF1840T39A-I/ST is a high-performance 8-bit PIC microcontroller with 32 MHz maximum clock frequency and 7.2 kB FLASH memory housed in a 14-pin TSSOP surface mount package. Designed around Microchip's enhanced mid-range PIC core architecture, it supports RISC instruction set with 49 instructions allowing efficient code execution and real-time control for embedded applications.
This microcontroller offers versatile connectivity with interfaces including EUSART, I2C, and SPI enabling communication with peripherals or other microcontrollers. It provides up to 25 programmable I/O pins and integrated hardware features including a 4-channel 10-bit ADC, a 5-bit DAC, comparator, and multiple timers for complex control tasks.
The device runs within a wide supply voltage range of 1.8 to 5.5 volts and includes extreme low power (XLP) technology optimized for battery-powered or energy-efficient designs. Its compact and rugged 14-pin TSSOP form factor (5.1 mm x 4.5 mm x 1.05 mm) makes it suitable for space-constrained applications.
Robust industrial-grade operating temperatures from -40°C to 85°C and compliance with RoHS and ISO/TS 16949 automotive standards ensure reliability and quality for commercial and automotive embedded system applications. The PIC12LF1840T39A-I/ST microcontroller is ideal for applications in industrial automation, automotive control, consumer electronics, and general-purpose embedded computing.
Features an 8-bit PIC architecture with 49 instruction set for speed and efficiency. Integrated EUSART, I2C, and SPI interfaces support flexible communication protocols. High-precision 4-channel 10-bit ADC and 5-bit DAC for analog input and output tasks.
Wide supply and operating temperature ranges enable diverse operational environments. Compact surface-mount 14-pin TSSOP package suitable for dense PCB layouts. Low power consumption via XLP technology extends battery life in portable devices.
Automotive standard ISO/TS 16949 certification ensures suitability for automotive applications.
This Microchip PIC12LF1840T39A-I/ST microcontroller is a reliable choice for professional engineers seeking high integration in a small footprint for various embedded system designs. Explore related Microcontrollers and semiconductor components at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC12LF1840T39A-I/ST microcontroller is 32 MHz.
This model features a program memory size of 7.2 kB, which is of FLASH type.
It offers up to 25 programmable I/O pins for flexible interfacing.
The operating temperature range is from -40 °C to +85 °C, making it suitable for industrial applications.
This model supports EUSART, I2C, and SPI interfaces for communication with peripherals or other microcontrollers.
The dimensions of the TSSOP package are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
The RAM size of this microcontroller is 256 bits.
It features 4 channels of 10-bit ADC for analog signal conversion.
Yes, it meets the ISO/TS 16949 automotive standard for quality and compliance.
The minimum supply voltage is 1.8 V and the maximum supply voltage is 5.5 V.
This model includes 1 timer and 1 comparator for timing and analog comparison tasks.
