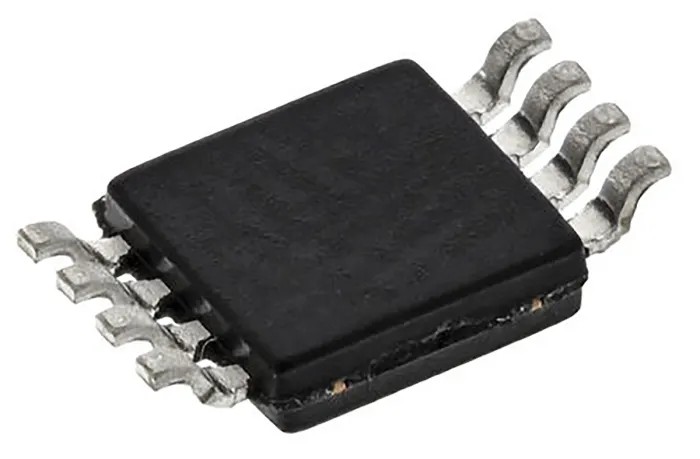

Microchip 8 bit PIC12LF1552-I/MS Flash Microcontroller 32 MHz 8-Pin MSOP PIC12LF1552-I/MS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 3mm |
| Model | PIC12LF1552-I/MS |
| Width | 3mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates with a maximum supply voltage of 5.5V and minimum supply voltage of 1.8V.
- Includes 256-bit RAM and 3.5kB FLASH program memory.
- Features 5 x 10-bit ADC channels and 2 analogue comparators for precise signal processing.
- Has 25 programmable I/Os and 1 x 5-bit DAC functionality for versatile interfacing.
- Supports in-circuit serial programming (ICSP) and uses a RISC instruction set architecture.
- Compact 3mm x 3mm x 950μm MSOP package suitable for surface mount applications.
- Wide operating temperature range from -40°C to 85°C for industrial and automotive standards (ISO/TS 16949).
- Maximum power dissipation rated at 800mW ensuring energy efficiency.
Product Description
Microchip PIC12LF1552-I/MS is an 8 bit PIC microcontroller designed for compact and efficient embedded applications. Featuring a 3.5kB Flash program memory with 256-bit RAM, it supports up to 32 MHz clock frequency leveraging a RISC-based core architecture.
This device is housed in an 8-pin MSOP surface mount package measuring 3mm by 3mm with a height of 950μm, suitable for dense circuit board designs. Operating voltage range from 1.8V to a maximum of 5.5V, it operates reliably within -40°C to 85°C, conforming to automotive standards ISO/TS 16949 for rigorous environmental conditions.
The PIC12LF1552-I/MS microcontroller integrates 25 programmable I/O pins providing versatile interfacing options, along with 5 ADC channels with 10-bit resolution and 2 analogue comparators, enabling accurate analog input measurement. The onboard 5-bit DAC and capacitive voltage divider add to the device’s analog capabilities.
It incorporates a single 8-bit timer and supports in-circuit serial programming (ICSP) facilitating easy programming and testing. Power dissipation is limited to 800mW, making the device energy-efficient for embedded designs.
3.5kB Flash memory provides ample program storage. 256-bit RAM supports data operations. Maximum 32 MHz clock speed with selectable internal oscillator. 8-pin MSOP surface mount package for compact footprint. Wide operating voltage range from 1.8V to 5.5V ensures flexibility.
Meets RoHS and automotive ISO/TS 16949 standards. 5 channels of 10-bit ADC and 2 analogue comparators for precise signal conditioning. Integrates 25 programmable input/output pins for flexible control. Max power dissipation of 800mW suitable for low power applications.
Ideal for industrial, automotive, embedded systems, and electronic component applications.
This Microchip PIC12LF1552-I/MS microcontroller is an essential component for modern embedded system designers requiring a compact, power-efficient device with a rich feature set. Explore more Microcontrollers and development components in the semiconductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates with a supply voltage ranging from 1.8V to a maximum of 5.5V.
This microcontroller features 25 programmable I/O pins for versatile interfacing.
It has a program memory size of 3.5kB, utilizing FLASH memory type.
The maximum power dissipation for the PIC12LF1552-I/MS is rated at 800mW.
It operates reliably within a temperature range of -40°C to 85°C, suitable for industrial and automotive applications.
Yes, it includes 5 ADC channels with 10-bit resolution for precise signal processing.
This microcontroller comes in an 8-pin MSOP surface mount package.
It is suitable for industrial, automotive, embedded systems, and electronic component applications.
The PIC12LF1552-I/MS features 2 analogue comparators for enhanced signal conditioning.
The height of this model is 950μm.
It meets RoHS standards and automotive ISO/TS 16949 standards for quality and environmental compliance.
