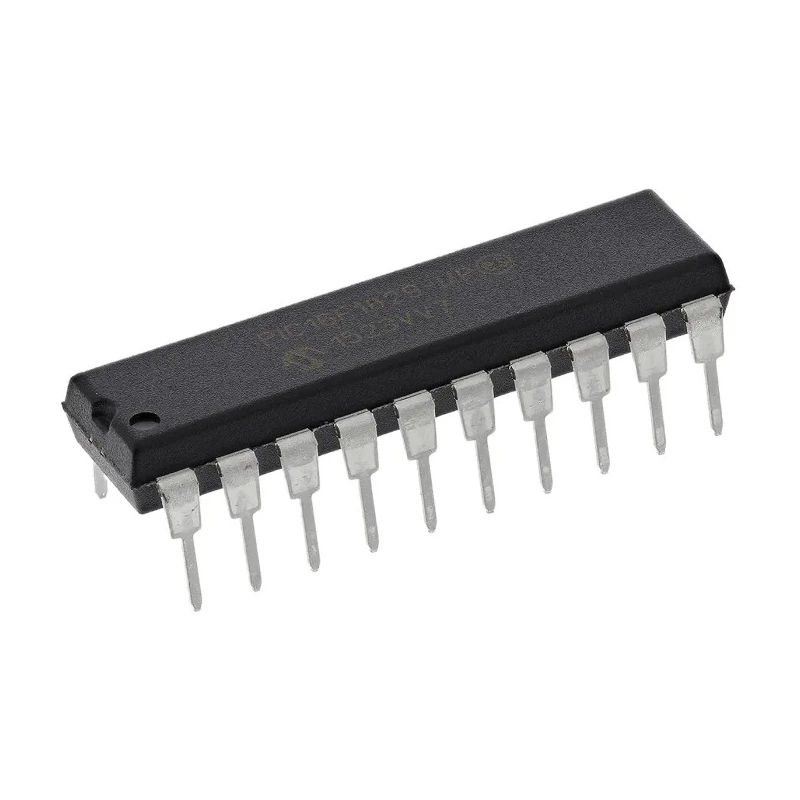

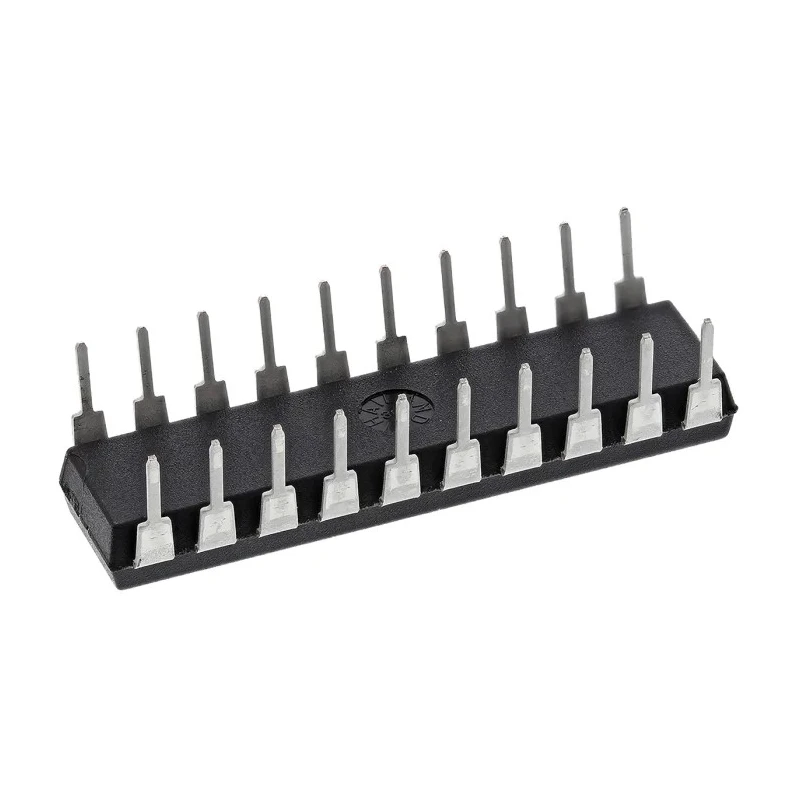

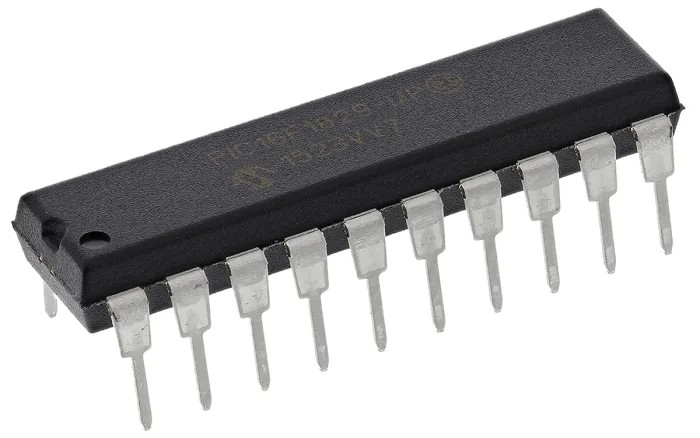

Microchip 8 bit PIC Microcontroller PIC16F1829-I/P, 32 MHz, 8kB FLASH, 1.024kB RAM, 20-Pin PDIP PIC16F1829-I/P

Microchip PIC16F1829-I/P is an 8 bit PIC microcontroller featuring the enhanced PIC16F mid-range architecture. Operating at a maximum clock frequency of 32 MHz, this device integrates 8kB of flash program memory and 1.024kB RAM for versatile embedded applications. The microcontroller comes in a 20-pin PDIP package, supporting through-hole mounting ideal for prototyping and development.

This microcontroller supports multiple peripherals such as 12 channels of 10-bit analogue to digital converters (ADC), a 5-bit digital to analogue converter (DAC), and 2 analogue comparators. It provides 25 programmable I/O pins enabling flexible interface configurations for various industrial and electronic systems.

Communication protocols supported include an RS232 interface, enhanced universal synchronous asynchronous receiver-transmitter (EUSART), and master synchronous serial port (MSSP) with SPI and I2C capabilities. The architecture includes a 16-level hardware stack and a 49 instruction set enabling efficient program execution up to 8 MIPS.

Additional features include power-saving modes such as Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), and an enhanced watchdog timer (WDT) with extended low-voltage programming. The operating temperature range of -40°C to 85°C plus a maximum power dissipation of 800mW make this device suitable for demanding industrial and commercial environments.

Dimensionally, the device is compact with a length of 26.92 mm, width of 7.11 mm, and height of 4.95 mm, making it suitable for space-constrained PCB designs. Its PDIP package facilitates easy through-hole installation.

This microcontroller is ideal for applications in embedded control, automotive systems, sensor interfacing, industrial automation, and general purpose microcontroller use cases requiring reliable performance and low power consumption.

The device operates with a maximum supply voltage of 6 volts. It includes 12 channels of 10-bit ADC for precise analogue signal processing. Equipped with 2 analogue comparators and one DAC of 5-bit resolution. The microcontroller has 25 programmable I/O pins providing flexible interfacing.

Designed with improved mid-range architecture featuring 49 instruction sets. Supports multiple communication interfaces including RS232, SPI, and I2C. Includes power management features like Power-On Reset and Brown-Out Reset.

Operating temperature range from -40°C to 85°C ensuring reliability in various environments. Dimensions measure approximately 26.92 mm length, 7.11 mm width, and 4.95 mm height. Package type is PDIP with 20 pins suitable for through hole mounting techniques.
