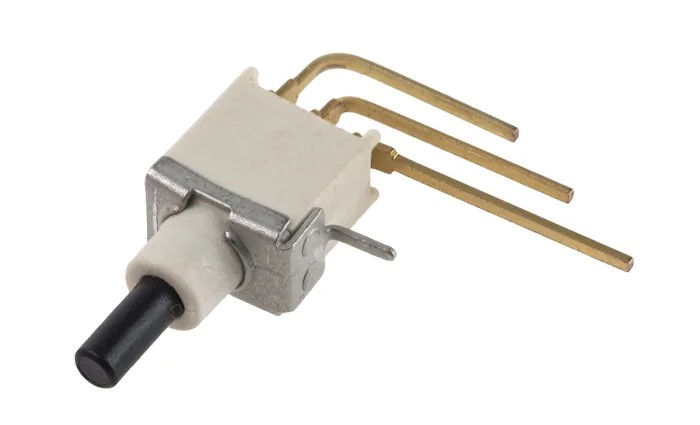

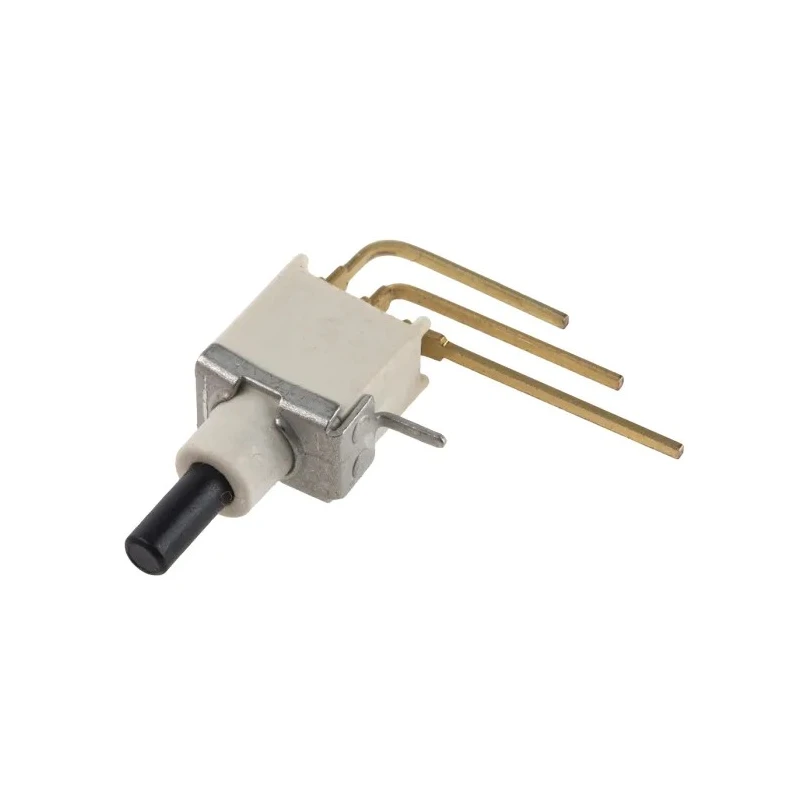

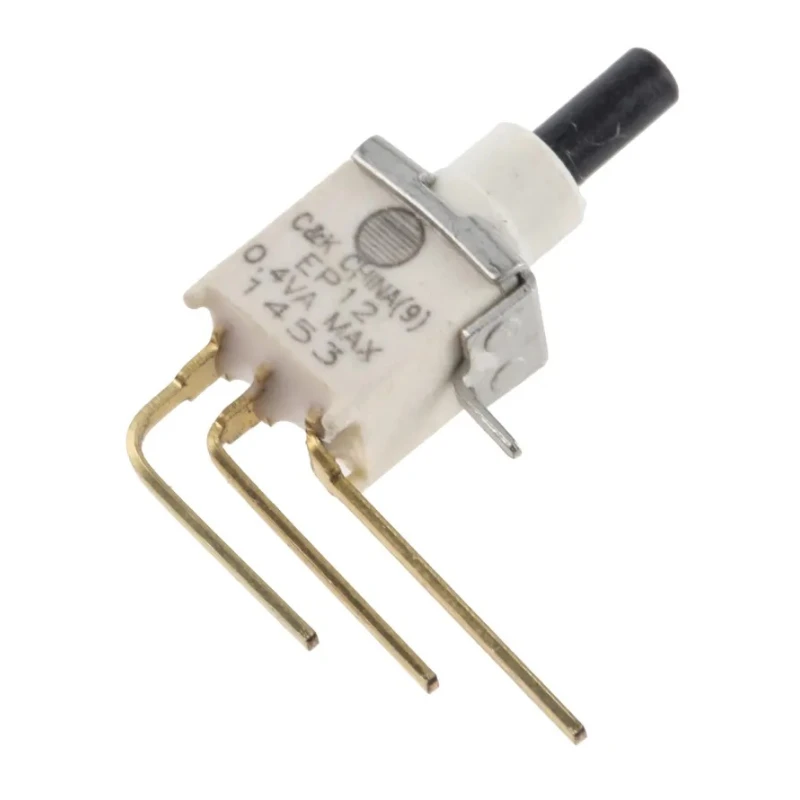

C & K Miniature Push Button Switch Momentary PCB Mount SPDT IP57 Protected EP12SD1AVBE

The C & K EP12SD1AVBE is a miniature push button switch engineered for precision and durability in industrial electronics, automation, and control circuits. This single pole double throw (SPDT) switch operates in a momentary mode, designed specifically for PCB mounting using a right angle through-hole terminal.

The actuator is a plunger style for easy pressing with defined tactile feedback. The switch contacts are gold plated to ensure long life and reliable conductivity under typical currents of up to 400mA.

This product boasts a rugged glass-filled Nylon 6/6 case material that meets UL 94 V-0 flammability standards, offering enhanced safety and mechanical strength. Its IP57 rating provides robust protection against water ingress, making it ideal for applications requiring immersion washing or exposure to moisture.

It is tested to operate efficiently from -30°C up to 85°C, allowing functionality in a broad range of environmental conditions. The compact width of 8.1 mm allows it to fit into constrained PCB layouts seamlessly.

The EP series from C & K complies with rigorous quality and environmental certifications including CSA, RoHS, and UR, ensuring it meets industry norms for safety and sustainability.

Compact miniature push button switch suitable for electronic applications. Operates in a momentary action mode with plunger-style actuator. Features a right angle through-hole terminal mount for PCB installation. Rated for 400mA switching current with gold contacts for reliable electrical performance.

Constructed with glass-filled Nylon 6/6 case material for durability and UL 94 V-0 fire resistance. Operates over a temperature range from -30°C to 85°C ensuring reliability in harsh conditions. IP57 rated to resist water ingress, suitable for immersion washing and wave soldering processes.

Complies with CSA, RoHS, and UR safety and environmental standards. Width dimension of 8.1mm provides a compact form factor in PCB assemblies.

This miniature push button switch is ideal for use in industrial automation equipment, control panels, consumer electronics, and other applications requiring durable and reliable momentary switches with environmental protection.
