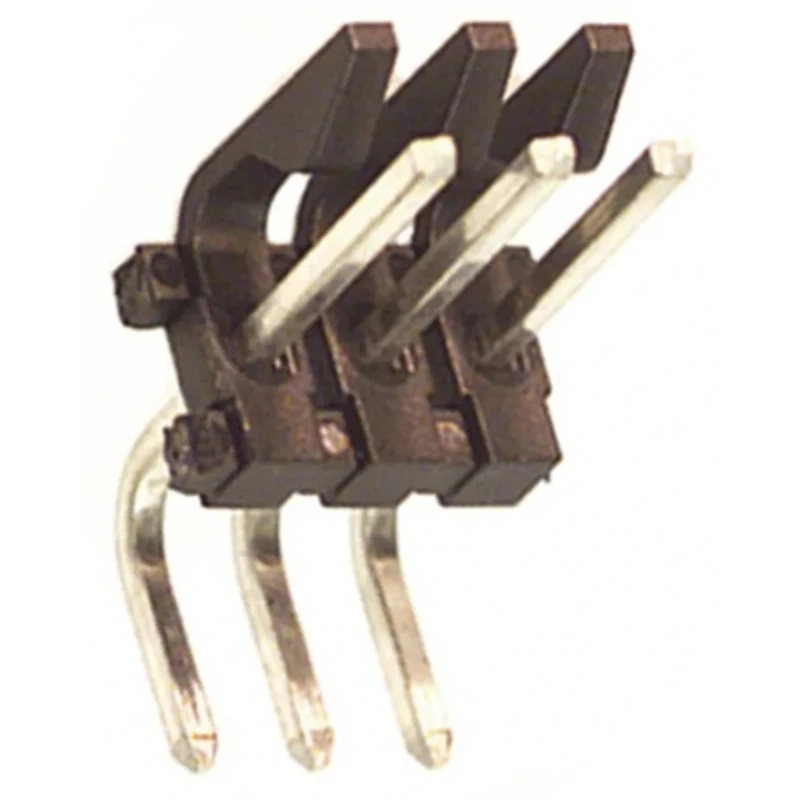

Molex Pin Header KK 396 Series Right Angle Through Hole, 3 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-48-1036
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 5.38mm |
Key Features
- Features 3 brass contacts with tin plating for reliable conductivity.
- Constructed with a polyester housing for durability in electronic assemblies.
- Supports a maximum current of 7 amperes and voltage rating of 250 volts.
- Designed for solder termination with a tail pin length of 5.38 mm.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Compatible with various matching housings and connectors in the KK 396 range.
- Right angle orientation facilitates PCB layout flexibility.
- Suitable for wire-to-board connector systems in industrial electronics.
Product Description
Molex 26-48-1036 KK 396 Series Pin Header is a high-quality, right angle, through hole connector designed for wire-to-board applications. Featuring 3 contacts spaced at a 3.96 mm pitch and housed in durable polyester, this unshrouded header supports current up to 7 amperes and voltage ratings of 250 volts. Its solder termination type and tail pin length of 5.38 mm ensure strong and reliable electrical connections.
This pin header operates efficiently within a wide temperature range from -40°C to 105°C, making it ideal for use in industrial, electronic manufacturing, and assembly environments. The unshrouded design offers easy accessibility for mating connectors and maintenance, while the right angle orientation allows for compact PCB layouts and enhanced mechanical stability.
The Molex KK 396 Series is widely compatible with a variety of housings and complementary connectors, including 3069, 2139, 6442, 41695 Series housings, and others within the series. Its robust brass contacts with tin plating provide excellent conductivity and corrosion resistance, essential for reliable long-term use.
Features 3 brass contacts with tin plating for reliable conductivity. Constructed with a polyester housing designed for durability in electronic assemblies. Supports a maximum current of 7 amperes and voltage rating of 250 volts.
Designed with solder termination and a tail pin length of 5.38 mm for solid electrical connections. Operates efficiently within a temperature range of -40°C to 105°C. Right angle, unshrouded design ensures flexible PCB mounting options.
Widely compatible with numerous housings and connectors in the KK 396 range. Ideal for industrial electronics, manufacturing, and PCB assembly applications. Explore the Electronics & Electricals category for related PCB header connectors at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 7 amperes and a voltage rating of 250 volts.
The contacts are spaced at a pitch of 3.96 mm.
It operates reliably within a temperature range of -40°C to 105°C.
This unit features a solder termination type for secure connections.
The housing is made of polyester, while the contacts are constructed from brass with tin plating.
This model has 3 contacts.
The tail pin length is 5.38 mm.
Yes, it is widely compatible with various housings and connectors in the KK 396 series.
This model has a right angle orientation, facilitating flexible PCB layouts.
It is designed for wire-to-board connector systems.
This unit has 1 row of contacts.
The country of origin for this pin header is India.
