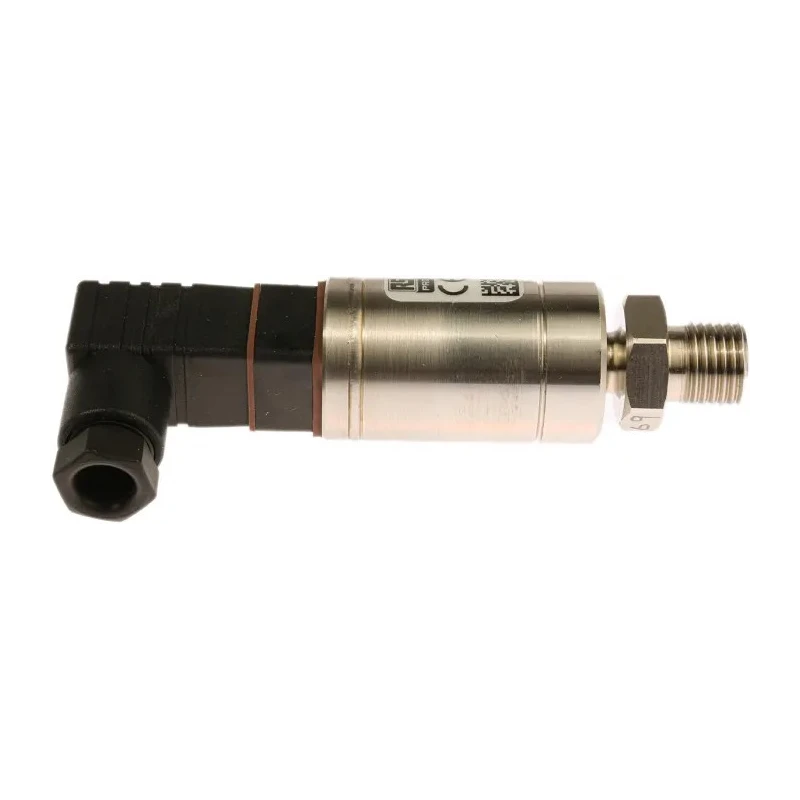

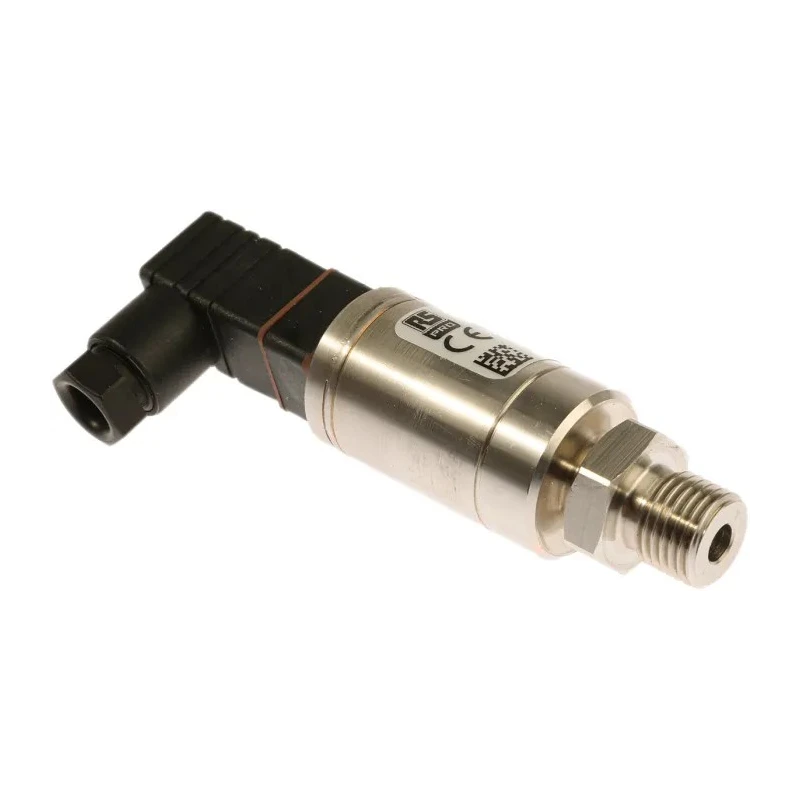

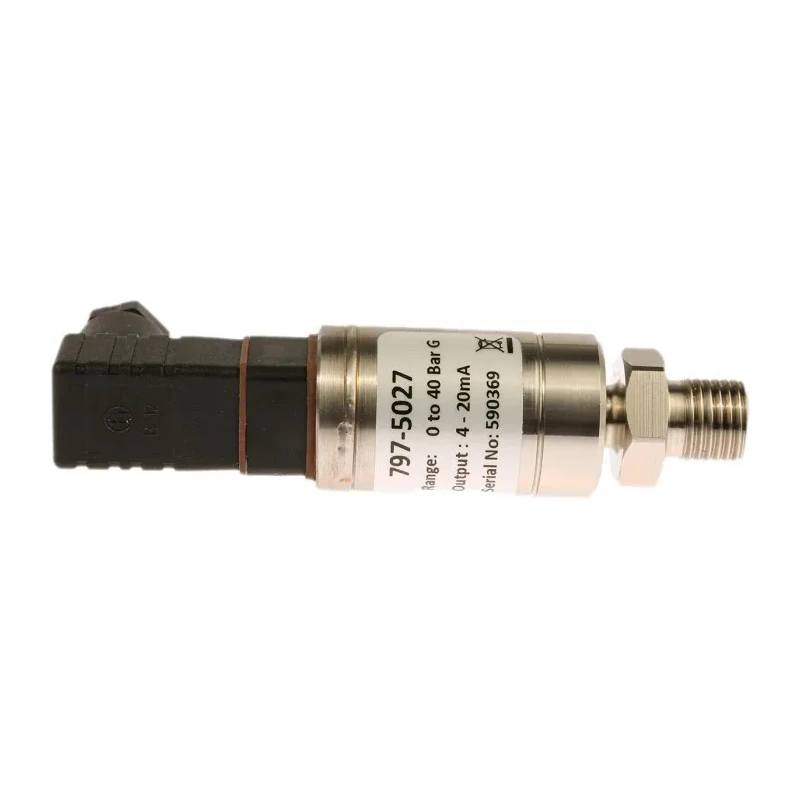

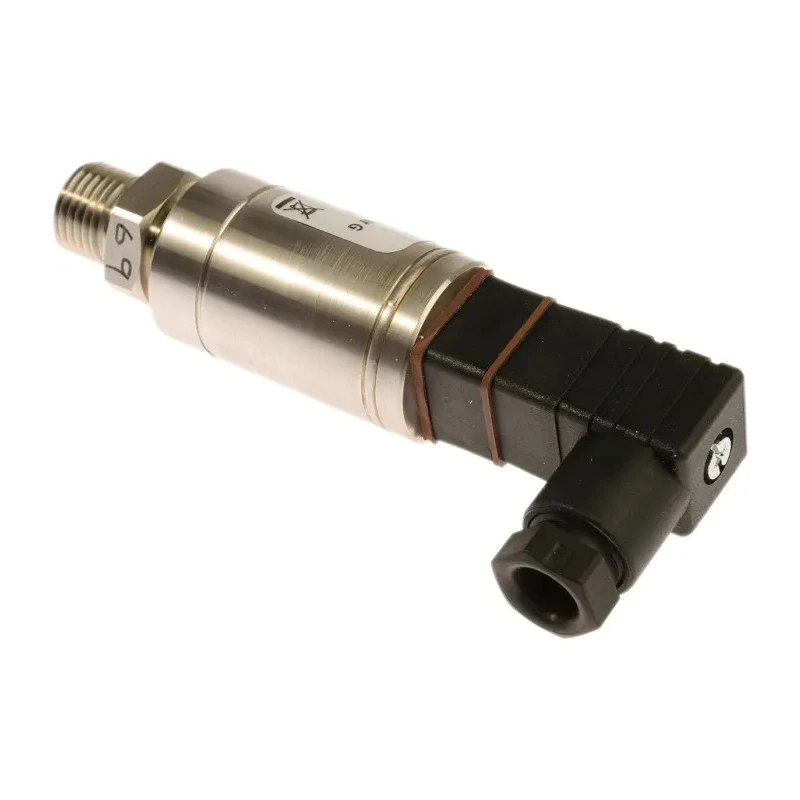

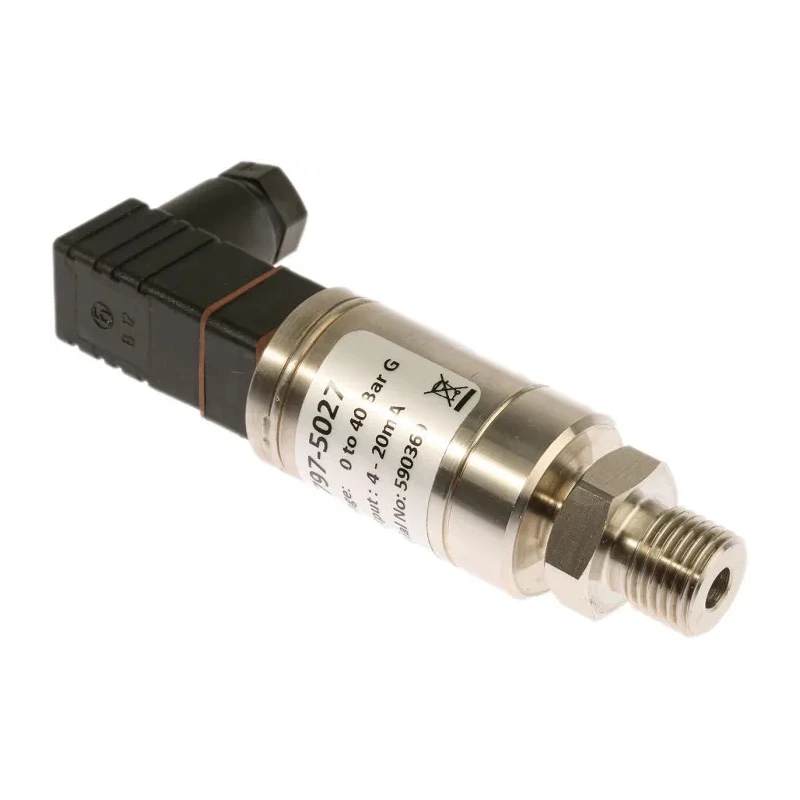

RS PRO Industrial Pressure Sensor 0 bar to 40 bar Gauge Reading, Current Output, Stainless Steel Housing 797-5027
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | RS PRO |
| Model | 797-5027 |
| IP Rating | IP65 |
| Mount Type | Threaded |
| Housing Material | Stainless Steel |
| Output type | Current |
| Maximum Operating Temperature | 135°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | DIN |
| Standards/Approvals | CE EMC directive EN 61326-1:2013 |
| Maximum Pressure Measurement | 40bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 32V dc |
| Minimum Supply Voltage | 9V |
| Pressure Reading Type | Gauge |
| Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Water |
| Standards/Approvals CE EMC directive EN 61326-1 | 2013 |
| RS PRO Pressure Sensor, 0bar Min, 40bar Max, Analogue Output, Gauge ReadingBrand | RS PRO |
Key Features
- High accuracy of ±0.25 percent ensures reliable data.
- Current output signal suitable for control systems.
- Robust stainless steel 316L housing with ceramic diaphragm for excellent media compatibility.
- IP65 rated for dust and water resistance.
- Wide operating temperature range from -20°C to 135°C.
- Threaded mount type with BSP 1/4 connection and M12 4-pin connector.
- Compatible with air, gas, hydraulic fluids, liquids, and water media.
- Compact and rugged design for industrial automation and process control.
Product Description
RS PRO 797-5027 Pressure Sensor is an industrial-grade sensor designed for precision measurement of pressure ranging from 0 bar to 40 bar. Equipped with a piezo-resistive thick film ceramic sensor and housed in stainless steel 316L, this sensor delivers reliable current output signals suitable for integration in automation, process control, and industrial measurement systems.
The device supports gauge pressure reading and is compatible with various media including air, gas, hydraulic fluids, liquids, and water. Its threaded mount type and DIN terminal type with M12 4-pin connector provide flexible installation options.
Built to endure harsh industrial environments, the pressure sensor has an IP65 rating for protection against dust and water ingress. It operates efficiently in temperatures ranging from -20°C to 135°C, ensuring robust performance in a wide range of applications.
This sensor meets the CE EMC directive EN 61326-1:2013, confirming its compliance with strict electromagnetic compatibility standards. With a compact and rugged design, the device offers high accuracy of ±0.25 percent and an operational life exceeding 100 million cycles, making it suitable for long-term industrial use.
Its media-wetted components, including the ceramic Al2O3 diaphragm and Viton O-ring seals, contribute to excellent media resistance and longevity. The sensor features insulation resistance greater than 50 M Ohms at 50 Vdc, ensuring safe and dependable operation.
Applications span industrial automation, process control, temperature testing facilities, and other measuring and testing instruments across manufacturing and engineering sectors. Pressure measurement range: 0 to 40 bar.
High accuracy of ±0.25 percent. Current output type signal. Stainless steel 316L housing with ceramic diaphragm. IP65 ingress protection rating. Operating temperature between -20°C and 135°C. Threaded mounting with BSP 1/4 connection and M12 4-pin connector.
Compatible with air, gas, hydraulic fluid, liquid, and water. Compliant with CE EMC directive EN 61326-1:2013. Operational life greater than 100 million cycles. Please browse the RS PRO category on EnvMart for a comprehensive selection of industrial Pressure Sensors and related automation instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor measures pressure from 0 bar to 40 bar.
It has an accuracy of ±0.25 percent, ensuring reliable data.
This model is compatible with air, gas, hydraulic fluids, liquids, and water.
The sensor operates efficiently in temperatures ranging from -20°C to 135°C.
It provides a current output signal suitable for control systems.
The housing is made of stainless steel 316L, providing excellent media compatibility.
It features a threaded mount type with a BSP 1/4 connection.
The sensor has an IP65 rating, providing protection against dust and water ingress.
It uses a DIN terminal type with an M12 4-pin connector for flexible installation options.
It complies with the CE EMC directive EN 61326-1:2013, confirming its electromagnetic compatibility.
The operational life of this model exceeds 100 million cycles, making it suitable for long-term use.
The minimum supply voltage is 9V, and the maximum is 32V dc.
