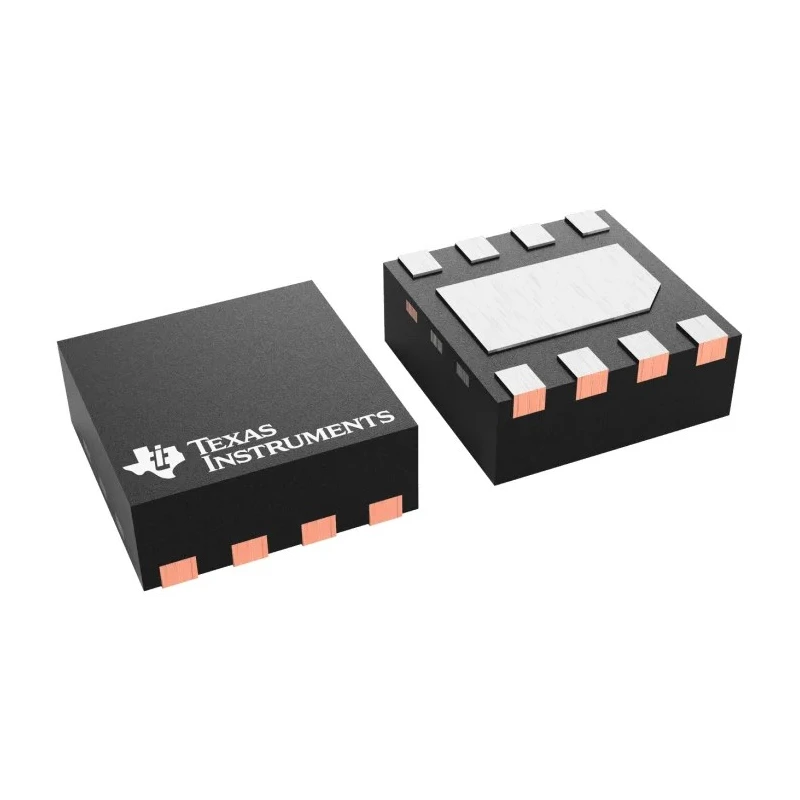

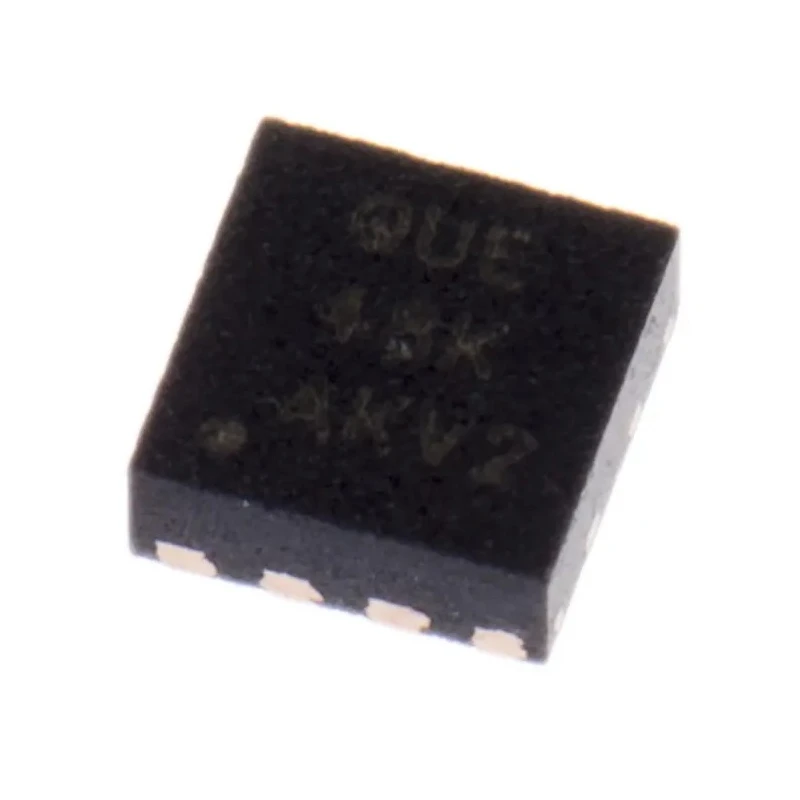

Texas Instruments Buck Converter Surface Mount 6V Output Voltage 500 mA Output Current TPS62170DSGT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 6V |
| Brand | Texas Instruments |
| Efficiency | 83% |
| Length | 2.1mm |
| Model | TPS62170DSGT |
| Depth | 0.8mm |
| Width | 2.1mm |
| Mount Type | Surface |
| Series | TPS62170 |
| Output Current | 500mA |
| Package Type | WSON |
| Load Regulation | 0.05 %/A |
| Minimum Operating Temperature | 85°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 17V |
| Line Regulation | 0.02 %/V |
| Standards/Approvals | ESDA, ANSI, JEDEC, RoHS, REACH |
| Minimum Input Voltage | 3V |
| Number of Pins | 8 |
| Output Voltage 1 | 6V |
Key Features
- This buck converter features a surface mount type for easy PCB integration.
- It supports a maximum input voltage of 17V and minimum input voltage of 3V.
- The device boasts 83% efficiency ensuring reduced power loss.
- Equipped with 8 pins and a compact WSON package type for space-saving applications.
- Operating temperature range supports up to 85°C for robust performance.
- Includes features like low line regulation of 0.02 %/V and load regulation of 0.05 %/A for stable output.
- Complies with industrial standards including ESDA, ANSI, JEDEC, RoHS, and REACH.
- Its dimensions are 2.1mm length, 2.1mm width, and 0.8mm depth.
Product Description
Texas Instruments TPS62170DSGT Buck Converter Surface Mount is a highly efficient step-down DC/DC switching regulator designed for precise voltage regulation in electronic circuits. It delivers a fixed 6V output voltage at a maximum current of 500 mA, suitable for powering low voltage devices.
This device supports an input voltage range from 3V up to 17V, making it versatile for various DC power sources. Its surface mount design with a compact 8-pin WSON package allows for seamless integration into printed circuit boards, saving space and reducing assembly complexity.
The buck converter operates with high efficiency of up to 83%, minimizing energy loss and thermal stress. The low line regulation of 0.02 %/V and load regulation of 0.05 %/A ensure the output voltage remains stable under varying input voltage and load conditions.
Operating temperatures up to 85°C make this converter suitable for industrial, laboratory, manufacturing, and commercial electronic applications requiring reliable power management under thermal variations.
This Buck Converter features a surface mount type for easy PCB integration. Maximum input voltage rating of 17V ensures compatibility with higher voltage sources. High efficiency of 83% reduces energy waste and heat generation.
Compact 8-pin WSON package facilitates space-saving circuit design. Low line and load regulation values guarantee stable output voltage. Certified compliant with ESDA, ANSI, JEDEC, RoHS, and REACH standards for safety and environmental requirements.
Precise dimensions: 2.1mm length, 2.1mm width, and 0.8mm depth.
The Texas Instruments TPS62170DSGT is ideal for use in electronic power supplies, embedded system power regulation, and any application requiring reliable DC voltage step-down conversion. Its industrial-grade construction and certifications ensure dependable operation in sensitive environments.
Explore more DC/DC converters and power management ICs to find optimal solutions for your electronic design needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a fixed output voltage of 6V.
It supports a maximum input voltage of 17V.
The output current capacity is 500 mA.
It boasts an efficiency rating of 83%.
The dimensions are 2.1mm in length, 2.1mm in width, and 0.8mm in depth.
It comes in a compact WSON package type.
The operating temperature range supports up to 85°C.
It features a low line regulation of 0.02 %/V and load regulation of 0.05 %/A.
This model is equipped with 8 pins.
It complies with ESDA, ANSI, JEDEC, RoHS, and REACH standards.
The minimum input voltage supported is 3V.
It features a surface mount type for easy PCB integration.
