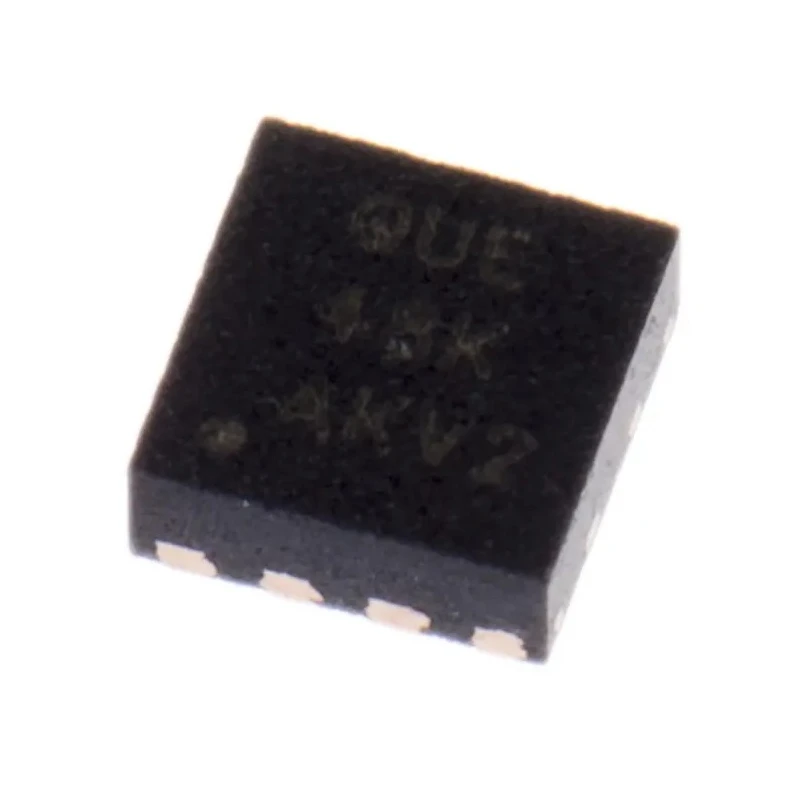

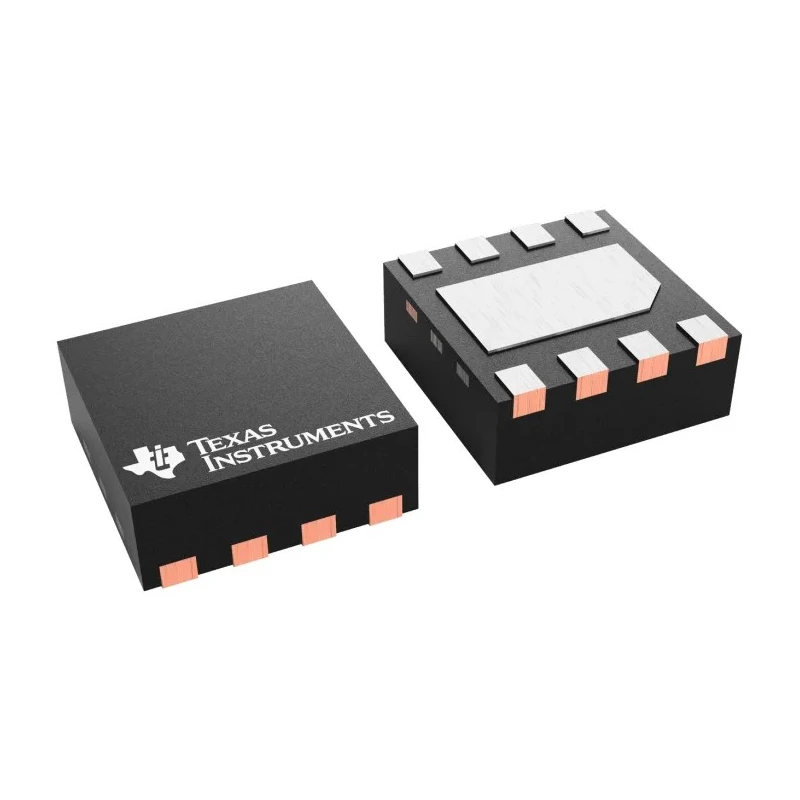

Texas Instruments Buck Converter Surface Mount 6V Output Voltage 500mA Output Current TPS62170DSGT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 6V |
| Brand | Texas Instruments |
| Efficiency | 83% |
| Length | 2.1mm |
| Model | TPS62170DSGT |
| Depth | 0.8mm |
| Width | 2.1mm |
| Mount Type | Surface |
| Series | TPS62170 |
| Output Current | 500mA |
| Package Type | WSON |
| Load Regulation | 0.05 %/A |
| Minimum Operating Temperature | 85°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 17V |
| Line Regulation | 0.02 %/V |
| Standards/Approvals | ESDA, ANSI, JEDEC, RoHS, REACH |
| Minimum Input Voltage | 3V |
| Number of Pins | 8 |
| Output Voltage 1 | 6V |
Key Features
- This buck converter is designed for step-down DC/DC conversion with high efficiency.
- It supports a maximum input voltage of 17V and minimum input voltage of 3V.
- Features an 83% efficiency rate optimizing power consumption.
- Comes in a compact WSON package with dimensions 2.1mm x 2.1mm x 0.8mm.
- Equipped with 8 pins and a surface mount type for easy PCB integration.
- Offers excellent line regulation of 0.02 %/V and load regulation of 0.05 %/A for voltage stability.
- Designed to operate reliably between -85°C minimum and 85°C maximum temperatures.
- Conforms to ESDA, ANSI, JEDEC, RoHS, and REACH standards ensuring quality and compliance.
Product Description
Texas Instruments TPS62170DSGT is a high-efficiency buck converter designed for step-down DC/DC conversion. This surface mount device delivers a regulated 6V output voltage with a maximum output current of 500mA, operating efficiently within an input voltage range of 3V to 17V. It features an integrated switch and comes in a WSON package type measuring 2.1mm in length and width and 0.8mm in depth, facilitating integration into compact electronic assemblies.
With an efficiency of 83%, this converter optimizes power consumption while ensuring voltage stability through precise line regulation of 0.02 %/V and load regulation of 0.05 %/A. The device is rated to withstand operating temperatures from -85°C up to 85°C, ensuring robust performance in varied industrial and electronic environments.
The 8-pin configuration and surface mount technology allow seamless mounting on PCBs, making it highly suitable for applications in electronic components, power supplies, and voltage converters. It complies with ESDA, ANSI, JEDEC, RoHS, and REACH standards, ensuring environmental safety and manufacturing quality.
This buck converter module provides 6V output voltage with 500mA output current. Maximum input voltage: 17V, minimum input voltage: 3V. Surface mount package type with 8 pins and compact WSON package. High efficiency of 83% enhances power savings.
Line and load regulation values maintain voltage stability. Wide operating temperature range from -85°C to 85°C. Conforms to multiple industry and environmental standards. Ideal for industrial, electronic, and power supply applications.
This Texas Instruments Buck Converter module supports diverse industrial and electronic use cases, including embedded systems requiring efficient voltage regulation, power supplies in telecommunications and computing equipment, and other applications demanding robust DC/DC conversion performance.
Explore more DC/DC converters and power management solutions available at EnvMart to suit your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 6V and can deliver a maximum output current of 500mA.
The buck converter has an efficiency rating of 83%, optimizing power consumption during operation.
It operates within an input voltage range of 3V to 17V.
The WSON package measures 2.1mm in length, 2.1mm in width, and 0.8mm in depth.
It features a line regulation of 0.02 %/V, ensuring voltage stability under varying input conditions.
The load regulation is specified at 0.05 %/A, which helps maintain output voltage stability with changes in load current.
This unit is designed to operate reliably between -85°C and 85°C.
It is equipped with 8 pins, facilitating surface mount integration.
It conforms to ESDA, ANSI, JEDEC, RoHS, and REACH standards, ensuring quality and compliance with environmental regulations.
This model utilizes surface mount technology, making it suitable for compact PCB designs.
It belongs to the TPS62170 series of buck converters.
The country of origin for this model is India.
