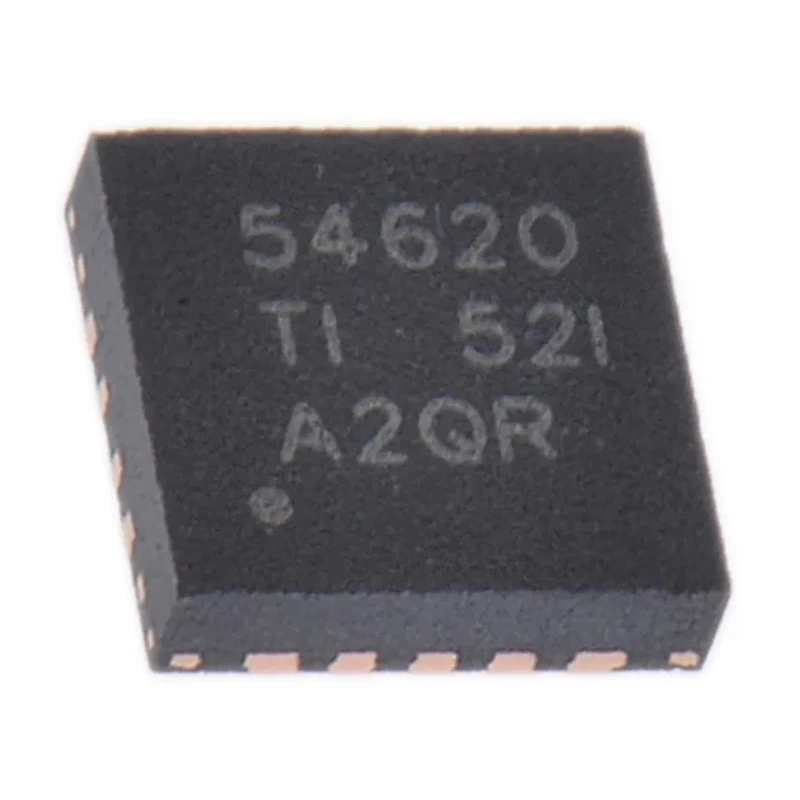

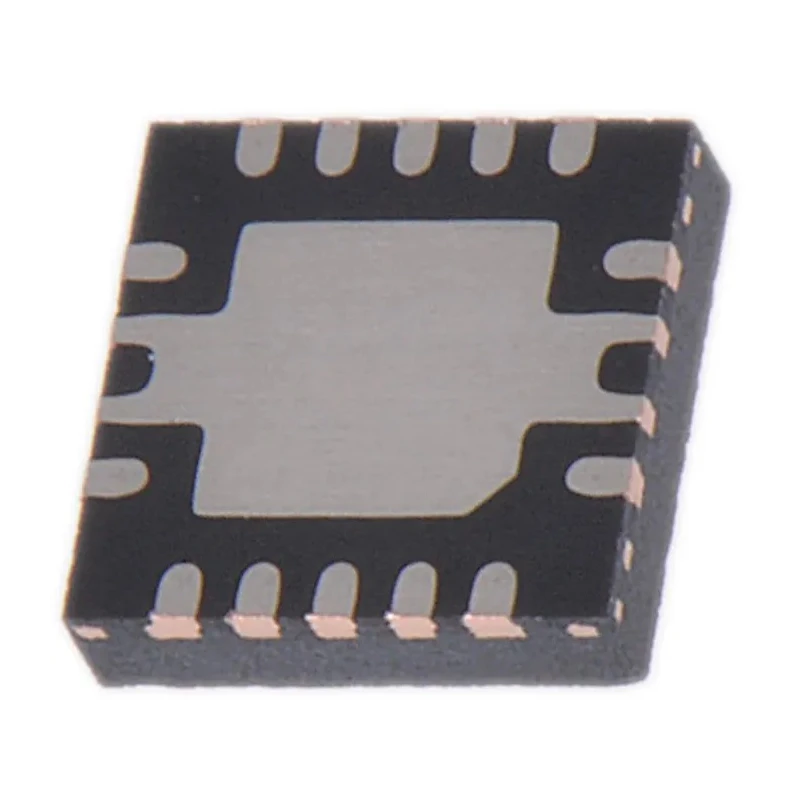

Texas Instruments Buck Converter, Surface Mount, 15V Output Voltage, 6 A Output Current, 3.6mW Power TPS54620RGYT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 15V |
| Brand | Texas Instruments |
| Power | 3.6mW |
| Efficiency | 96% |
| Length | 3.65mm |
| Model | TPS54620RGYT |
| Depth | 1.3mm |
| Width | 3.65mm |
| Mount Type | Surface |
| Series | TPS54620 |
| Output Current | 6A |
| Package Type | VQFN |
| Minimum Operating Temperature | 150°C |
| Number of outputs | 1 |
| Ripple and Noise | 1% |
| Maximum Input Voltage | 17V |
| Line Regulation | 0.02 %/V |
| Standards/Approvals | RoHS, JEDEC, ANSI, ESDA, REACH |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 14 |
| Output Voltage 1 | 15V |
| Output Voltage 2 | 8V |
Key Features
- Surface mount type designed for compact PCB integration.
- High efficiency up to 96% reduces power loss during operation.
- Supports maximum input voltage of 17V and minimum input voltage of 4.5V.
- Incorporates 14 pins with VQFN package for reliable connections.
- Ripple and noise maintained at 1% for stable voltage output.
- Wide operating temperature range up to 150°C for industrial applications.
- Line regulation of 0.02 %/V ensuring consistent voltage output.
- Compact dimensions of 3.65mm length, 3.65mm width, and 1.3mm depth.
Product Description
Texas Instruments TPS54620RGYT is a highly integrated buck converter designed for efficient step-down DC/DC power conversion. This surface mount converter offers a regulated 15V output voltage with a continuous output current rating of 6A, making it suitable for demanding industrial, consumer electronics, and power management applications.
With a power consumption of approximately 3.6mW and efficiency reaching up to 96%, it optimizes energy use and reduces heat dissipation. The device supports a wide input voltage range from 4.5V to a maximum of 17V, providing flexible design options for various power supply requirements.
Incorporated within a compact VQFN package with 14 pins, and dimensions of 3.65mm by 3.65mm by 1.3mm, this buck converter is ideal for space-constrained Printed Circuit Board (PCB) layouts. Its line regulation of 0.02 %/V and ripple noise of just 1% contribute to delivering a stable and reliable voltage output, critical for sensitive electronic circuits.
Operating temperature up to 150°C enables usage in harsh environments, including industrial automation, telecommunications equipment, and embedded systems. The converter complies with multiple industry standards including RoHS, JEDEC, ANSI, ESDA, and REACH, ensuring safety and environmental compliance.
Surface mount package with robust integration. High-efficiency power conversion at 96% efficiency. 14-pin VQFN small footprint design. Wide input voltage range from 4.5V to 17V. Low ripple and noise at 1% for stable outputs.
High maximum operating temperature up to 150°C. Precise line regulation at 0.02 %/V. Compact size enables flexible PCB designs.
This Texas Instruments Buck Converter is well-suited for applications requiring stable and efficient DC/DC conversion, including industrial power supplies, embedded systems, and power management modules. It enables designers to implement power regulation solutions that enhance the reliability and efficiency of their electronic devices.
Explore the wide range of DC/DC converters at EnvMart for advanced electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPS54620RGYT provides a regulated output voltage of 15V.
This model can deliver a continuous output current of 6A.
It has an efficiency rating of up to 96%, optimizing energy use and reducing heat dissipation.
The device supports an input voltage range from 4.5V to a maximum of 17V.
The dimensions of the TPS54620RGYT are 3.65mm in length, 3.65mm in width, and 1.3mm in depth.
This model incorporates 14 pins within its VQFN package.
The ripple and noise are maintained at 1%, ensuring stable voltage output.
It features a line regulation of 0.02 %/V, which ensures consistent voltage output.
The maximum operating temperature for the TPS54620RGYT is up to 150°C, suitable for industrial applications.
This buck converter complies with RoHS, JEDEC, ANSI, ESDA, and REACH standards, ensuring safety and environmental compliance.
The TPS54620RGYT is designed for surface mount applications, facilitating compact PCB integration.
The power consumption of this model is approximately 3.6mW.
