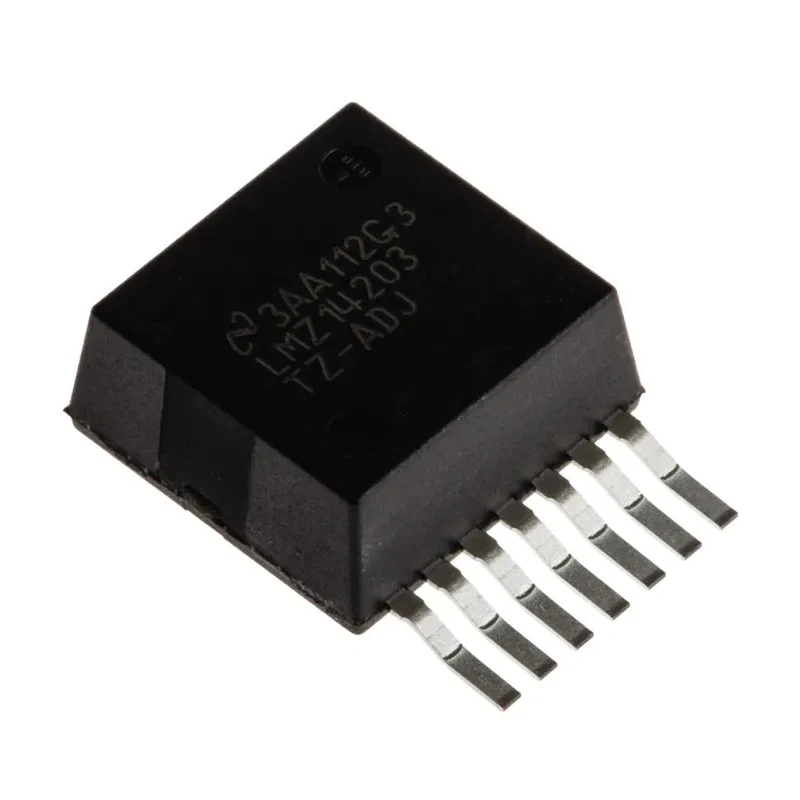

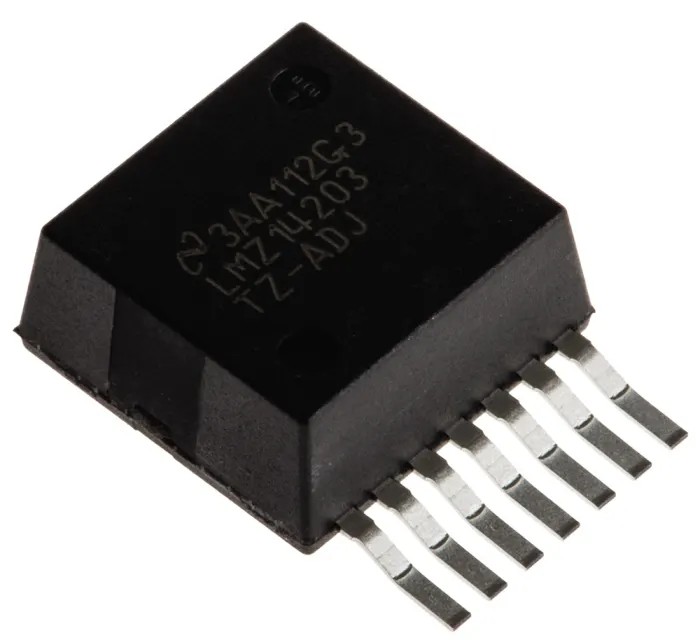

Texas Instruments Buck Converter Surface Mount 6V 3A Output LMZ14203TZ-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 6V |
| Brand | Texas Instruments |
| Efficiency | 92% |
| Length | 10.16mm |
| Model | LMZ14203TZ-ADJ/NOPB |
| Depth | 1.3mm |
| Width | 9.85mm |
| Mount Type | Surface |
| Series | LMZ1420 |
| Output Current | 3A |
| Package Type | TO-PMOD |
| Load Regulation | 1.5 mV/A |
| Minimum Operating Temperature | 125°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 42V |
| Line Regulation | 0.01 % |
| Standards/Approvals | RoHS, REACH, ANSI, ESDA, JEDEC |
| Minimum Input Voltage | 6V |
| Number of Pins | 7 |
| Output Voltage 1 | 6V |
Key Features
- High efficiency of 92 percent ensures low power loss during operation.
- Single output design simplifies integration into power supply systems.
- Compact surface mount package with dimensions 10.16mm x 9.85mm x 1.3mm.
- Supports a maximum input voltage of 42 volts and a minimum input voltage of 6 volts.
- Incorporates precision enable and soft-start pin for improved control and sequencing.
- Meets RoHS, REACH, ANSI, ESDA, and JEDEC standards for quality and environmental compliance.
- Ideal for industrial, commercial, and laboratory applications requiring high input voltages and reliable DC/DC conversion.
Product Description
Texas Instruments LMZ14203TZ-ADJ/NOPB is a high-performance Buck Converter designed to deliver a stable 6V output voltage at currents up to 3A. It is packaged in a compact surface mount TO-PMOD package measuring 10.16mm in length, 9.85mm in width, and 1.3mm in depth, making it suitable for modern PCB layouts and space-constrained applications.
This switching regulator module features high efficiency up to 92 percent minimizing power dissipation and thermal stress. It supports a wide input voltage range with a maximum rating of 42V and a minimum input voltage of 6V, making it versatile for various DC power input scenarios.
The LMZ14203TZ-ADJ/NOPB includes integrated features such as a precision enable pin, soft-start pin for controlled startup, and tracking for sequencing multiple power rails. This module is part of the LMZ1420 series SIMPLE SWITCHER® Power Modules known for best-in-class EMI protection and thermal performance. It passes stringent EN55022 (CISPR22) Class B radiated and conducted EMI standards to ensure minimal electromagnetic interference.
Its 7-pin configuration and surface mount design allow easy PCB integration and automation in manufacturing. The product fully complies with relevant RoHS, REACH, ANSI, ESDA, and JEDEC standards, ensuring reliability and regulatory compliance in industrial and commercial electronics equipment.
High efficiency of 92 percent reduces energy loss. Compact surface mount TO-PMOD package supports tight board layouts. Wide input voltage range from 6V to 42V for flexible power sources. Soft-start and enable pins provide controlled power sequencing.
Robust standards compliance including RoHS and REACH. Excellent thermal performance allows operation in harsh environments. Suitable for industrial, laboratory, manufacturing, and power management applications.
For engineers and technicians requiring reliable power conversion modules, the LMZ14203TZ-ADJ/NOPB offers an integrated solution that simplifies design and improves system efficiency. EnvMart provides detailed product data and trusted availability for this Texas Instruments power module.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This buck converter supports a maximum input voltage of 42V and a minimum input voltage of 6V.
The surface mount package has dimensions of 10.16mm in length, 9.85mm in width, and 1.3mm in depth.
The LMZ14203TZ-ADJ/NOPB has an efficiency rating of 92%, which minimizes power loss during operation.
It meets RoHS, REACH, ANSI, ESDA, and JEDEC standards for quality and environmental compliance.
This model incorporates a precision enable pin and a soft-start pin for improved control and sequencing.
The LMZ14203TZ-ADJ/NOPB has a single output design, simplifying integration into power supply systems.
The load regulation of this buck converter is specified at 1.5 mV/A.
The line regulation for the LMZ14203TZ-ADJ/NOPB is 0.01%.
The product is packaged in a TO-PMOD surface mount type, suitable for modern PCB layouts.
The LMZ14203TZ-ADJ/NOPB is manufactured in India.
This model is part of the LMZ1420 series of SIMPLE SWITCHER® Power Modules.
