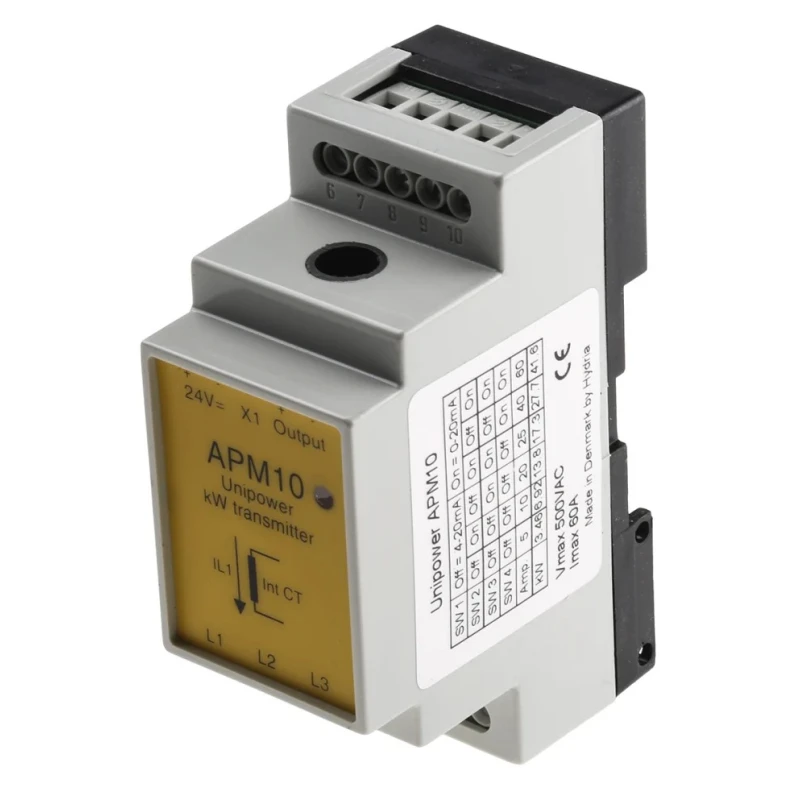

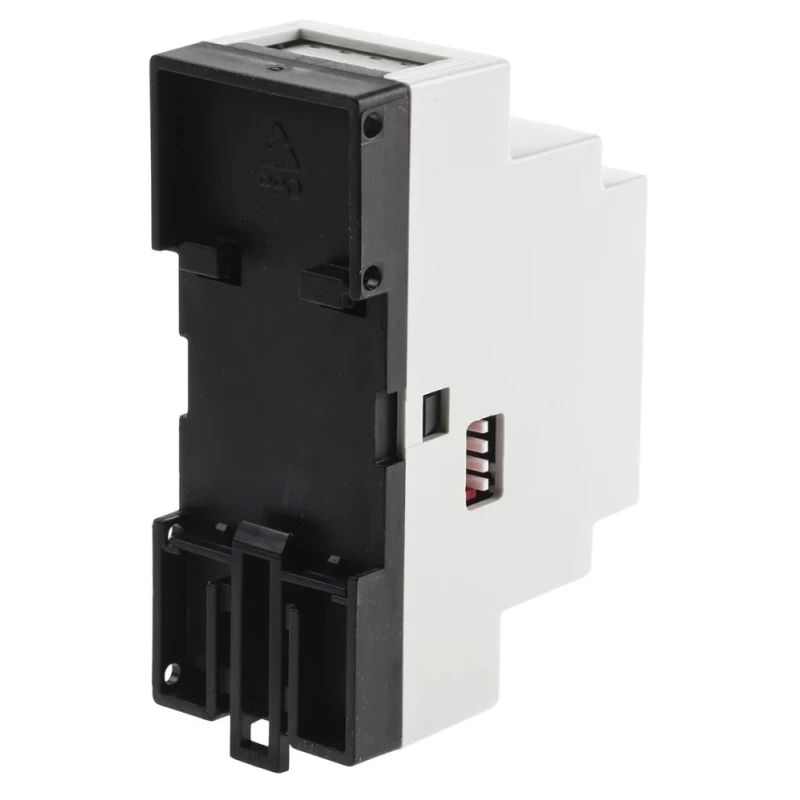

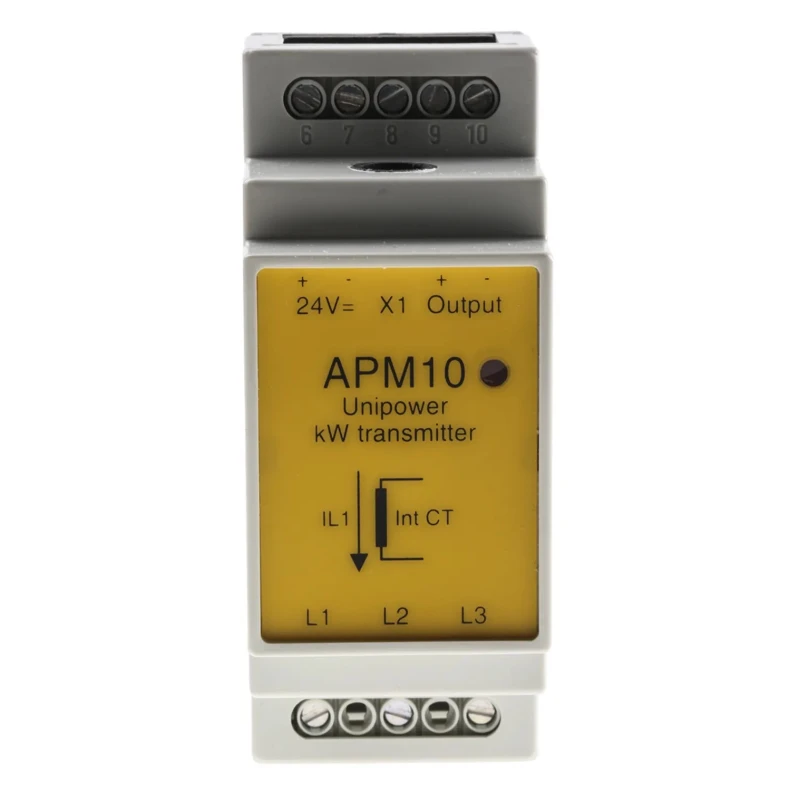

Unipower Motor Load Transducer 5A, 60A Current Rating, 24V DC Supply Voltage, Thermistor Sensing, Model APM10
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | Unipower |
| Model | APM10 |
| IP Rating | IP40, IP20 |
| Overall Length | 86mm |
| Current Rating | 5, 60A |
| Series | APM |
| Overall Width | 36mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -15°C |
| Sensing type | Thermistor |
| Supply Voltage | 24V dc |
| Number of Poles | 4 |
| Standards/Approvals | EN61010-1, EN61326-1, UL 508 |
| Overall Depth | 58mm |
| Motor Protection Component | Load Transducer |
| Motor Protection System | HC |
Key Features
- Designed for 3 phase symmetrical motor load measurement up to 3x500 VAC.
- Operates on a 24V DC power supply with thermistor sensing technology.
- Provides analogue output signals configurable via DIP switch for PLC and controller integration.
- Galvanic insulation ensures electrical isolation between input and output for safety.
- Compact dimensions with overall length 86 mm, width 36 mm, and depth 58 mm.
- Wide operating temperature range from -15 °C to 50 °C suits varied industrial environments.
- IP rating of IP40 and IP20 provides protection against solid particles and limited water ingress.
- Complies with international standards EN61010-1, EN61326-1, and UL 508 for motor protection devices.
Product Description
Unipower APM10 Motor Load Transducer is a sophisticated motor protection and monitoring device designed for industrial and automation applications. It provides an analogue kW transmitter function, converting motor load into process signals compatible with PLCs and other industrial controllers. The device supports 3 phase symmetrical loads and can connect to a 3 phase network up to 3x500 VAC.
Equipped with an internal current transformer and thermistor sensing, the transducer allows precise load monitoring with input current ranges including 5, 10, 20, 25, 40, and 60 Amperes. It is powered by a stable 24V DC supply and outputs configurable analogue signals (0(4)-20mA or 0(2)-10V) controllable via DIP switch settings. Galvanic insulation between input and output ensures safe electrical operation, protected by a test voltage capacity of 3 kV.
The transducer’s compact size (86 mm length, 36 mm width, 58 mm depth) and durable IP40/IP20 ingress protection ratings enable installation in robust industrial environments. Its wide operating temperature range from -15 °C to 50 °C allows it to function reliably in various harsh conditions.
This motor load transducer complies with established industry standards EN61010-1, EN61326-1, and UL 508, certifying its suitability for motor protection systems. Its 4-pole design further enhances its adaptability and integration into motor monitoring setups.
Designed for industrial motor load measurement and protection. Compatible with 3 phase AC motor systems up to 3x500 VAC. Offers versatile analogue output for various process control systems. Compact and robust construction for reliable use in demanding environments.
Wide temperature range supports diverse operational settings. Electrical isolation enhances safety and reduces interference risks. Certified to international safety and performance standards.
Unipower’s APM10 Motor Load Transducer is ideal for applications in electrical motor protection, industrial automation, process control, and PLC integration. EnvMart customers can browse additional motor protection devices and motor accessories for comprehensive industrial solutions.
Explore more products in our Motor Protection Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The APM10 Motor Load Transducer has a current rating of 5A and 60A.
It operates on a 24V DC power supply.
The maximum operating temperature is 50°C.
This model uses thermistor sensing technology.
The overall dimensions are 86 mm in length, 36 mm in width, and 58 mm in depth.
It has an IP rating of IP40 and IP20, providing protection against solid particles and limited water ingress.
It complies with international standards EN61010-1, EN61326-1, and UL 508.
The transducer provides configurable analogue output signals of 0(4)-20mA or 0(2)-10V.
It features galvanic insulation between input and output to ensure electrical isolation for safety.
The minimum operating temperature is -15°C.
This model has a 4-pole design.
It is designed for industrial motor load measurement and protection, compatible with 3 phase AC motor systems.
