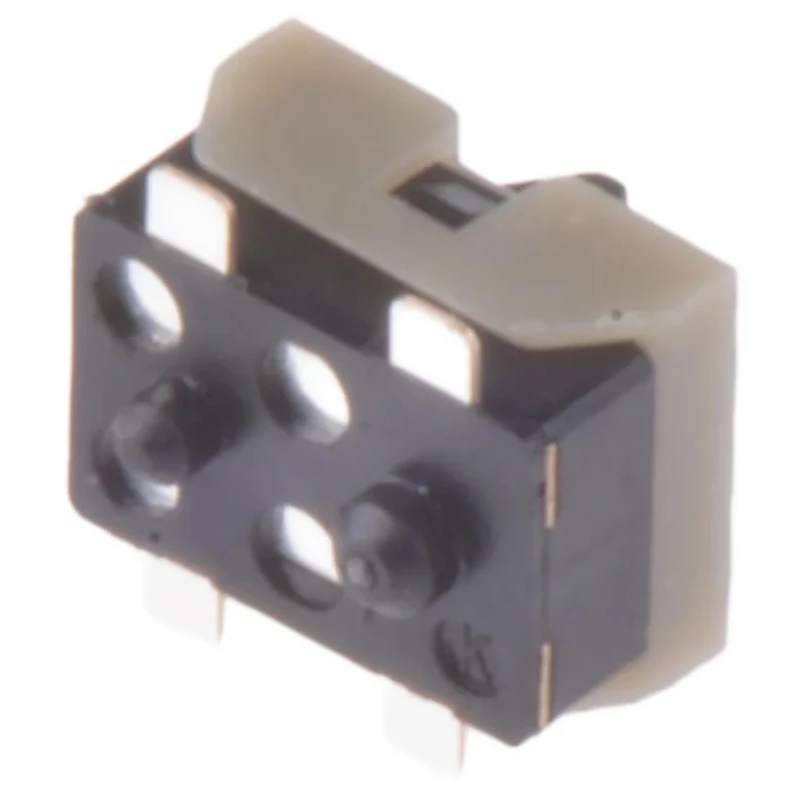

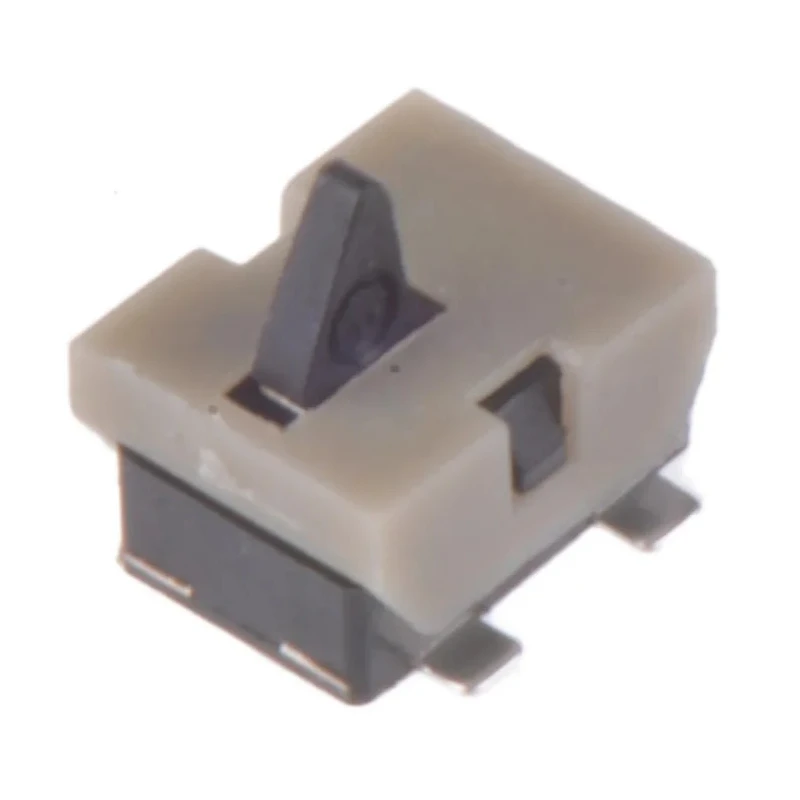

C & K Micro Mini Detector Switch SPST 1mA Silver over Nickel Plated Phosphor Bronze HDT0001

The C & K HDT0001 micro miniature detector switch is designed for precise electronic circuit detection with a single pole, single throw (SPST) configuration. It supports a maximum switch contact current of 1mA, making it suitable for low-power sensor and signal applications. The contact material is silver plated over nickel phosphor bronze, providing durability and excellent electrical conductivity.

This surface mount switch features a lever actuator type, enabling sensitive and reliable actuation with a maximum actuation force of 35 grams. It offers a mechanical life expectancy of 100,000 cycles, ensuring long-term performance in demanding environments. Operating temperature range spans from -40°C to 85°C, covering a variety of industrial and commercial conditions.

Typical applications include integration into consumer electronics, computer hardware, medical instrumentation, and advanced telecommunications equipment such as ATCA and MicroTCA devices. Its compact size and precise operation enable it to efficiently detect and control electronic signals in complex systems.

Contact current rating is 1mA, enhancing precision in low-power circuits. Silver over nickel plated phosphor bronze contacts ensure optimal conductivity and corrosion resistance. Surface mount design supports modern PCB assembly techniques.

Lever actuator provides reliable mechanical actuation with minimal force. Mechanical life of 100,000 cycles ensures durability in frequent switching applications. Wide operating temperature range supports varied environmental conditions.

Widely applicable across consumer electronics, medical devices, and telecommunications.

Set contains one C & K HDT0001 micro miniature Detector Switch. For further product details and industrial use, browse the complete range of electronics and electrical switching solutions at EnvMart.
