Myrra 2 Output SMPS Transformer 5W Power, Primary 370 V dc & 265 V ac, Secondary 3.3 to 24 V dc 47156

Free Delivery in India | Lowest Global Shipping Charges

Myrra 2 Output SMPS Transformer 5W Power, Primary 370 V dc & 265 V ac, Secondary 3.3 to 24 V dc 47156

Name: Myrra 2 Output SMPS Transformer 5W Power, Primary 370 V dc & 265 V ac, Secondary 3.3 to 24 V dc 47156
Brand: Myrra
SKU: 236818
Price: 20.22 USD
Availability: InStock



Category SMPS Transformers Brand Myrra Condition New

Specifications

Country of Origin	China
Brand	Myrra
Power	5W
Model	47156
Series	47000
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Secondary current	1350mA
Number of outputs	2
Isolation Voltage	4000V ac
Primary Voltage	370 V dc, 265 V ac
Secondary Voltage	3.3 to 24 V dc
Minimum Operating Frequency	47Hz
Maximum Operating Frequency	440Hz

Key Features

Primary voltage supports 370 V dc and 265 V ac supply.
Secondary provides regulated voltages from 3.3 to 24 V dc.
Delivers a maximum secondary current of 1350 mA.
Operates safely within temperature range of -25°C to 70°C.
Complies with multiple standards including EN 60335 and UL 94-V0 for reliability and safety.
High isolation voltage capability rated at 4000 V ac for robust insulation.
Supports operating frequency between 47 Hz and 440 Hz ensuring wide compatibility.
Designed based on flyback topology offering energy-efficient switching operation.

Product Description

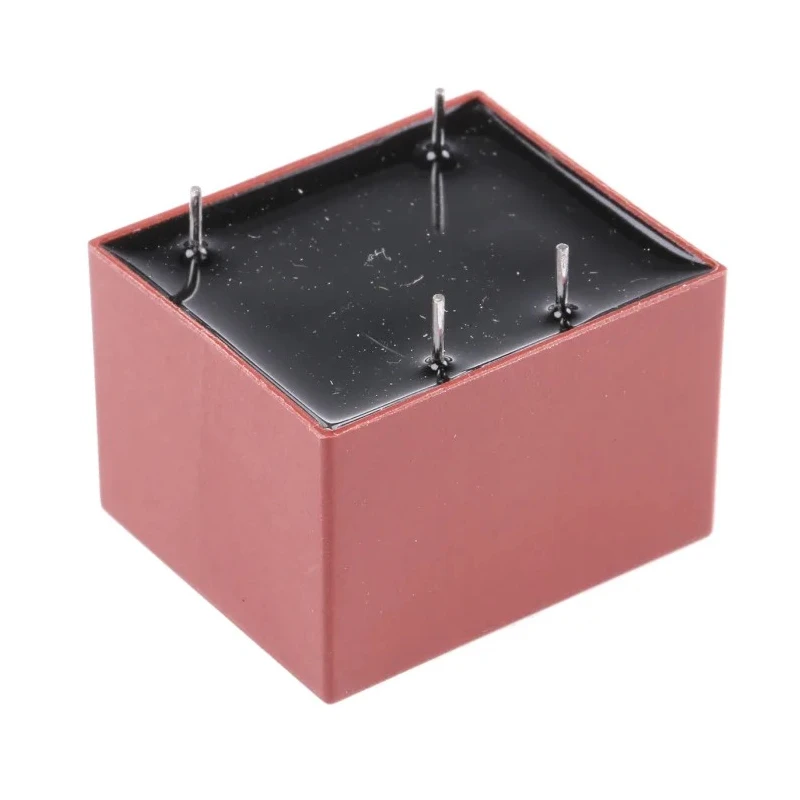

Myrra 47156 is a dual-output SMPS transformer designed for low power electronic applications requiring reliable power conversion. With a power rating of 5W, it accommodates primary voltages of 370 V dc and 265 V ac, providing a flexible power supply interface. The secondary voltage outputs range continuously from 3.3 to 24 V dc supporting various electronic device requirements.

This transformer supports a maximum secondary current of 1350 mA and boasts a high isolation voltage of 4000 V ac, ensuring excellent electrical insulation between input and output circuits. It operates effectively within a broad temperature range of -25°C to 70°C and frequencies spanning 47 Hz to 440 Hz, making it suitable for diverse industrial and consumer environments.

Compliant with rigorous standards such as EN 60335, EN 55014 series, EN 61558-2-17, EN 60950, EN 55022 Class B, and UL 94-V0, the product emphasizes safety and electromagnetic compatibility. The encapsulated flyback design provides energy-saving switching mode power supply functionality and eases replacing traditional EI30 transformers with the same footprint.

This transformer is well-suited for power supplies in telecom equipment, electric substations, and other industrial and consumer electronic applications where reliable, efficient power conversion is essential. The compact form factor, energy efficiency, and regulatory compliance make it an optimal choice for modern electronic design.

Primary voltages: 370 V dc, 265 V ac. Secondary voltages: 3.3 to 24 V dc. Power output: 5 W. Maximum secondary current: 1350 mA. Operating temperature: -25°C to 70°C. Isolation voltage: 4000 V ac. Frequency range: 47 Hz to 440 Hz.

Compliance with multiple international safety and EMC standards. Switched Mode Power Supply based on flyback topology. Compact footprint compatible with EI30 transformer size. Explore our extensive range of SMPS Transformers at EnvMart for your industrial, manufacturing, laboratory, and commercial applications.
