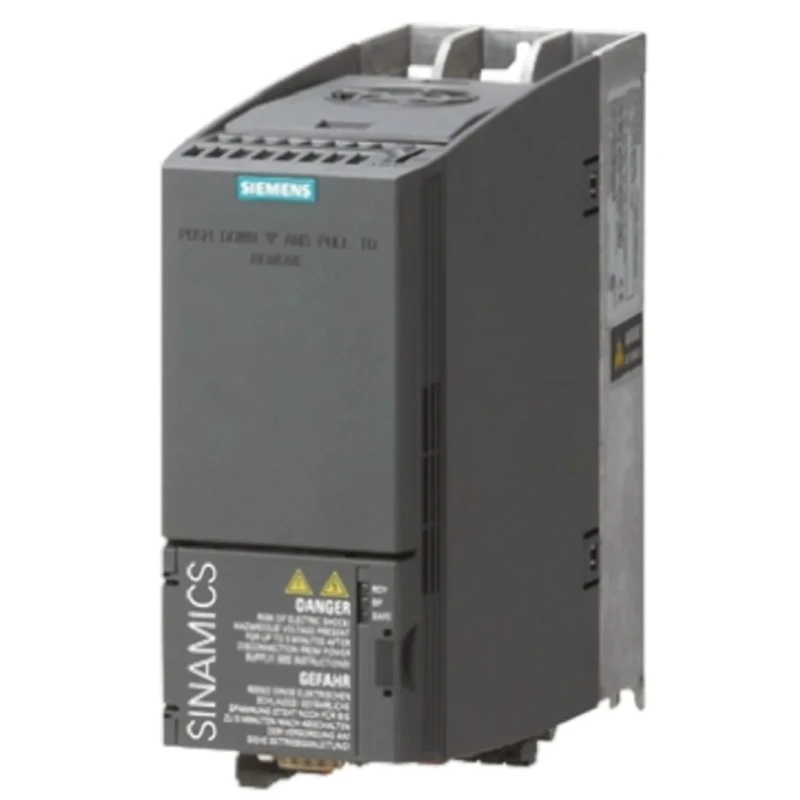

Siemens Inverter Drive 4 kW 3 Phase SINAMICS G120C Series 400V AC 14.6 A 6SL3210-1KE18-8AB1

Siemens 6SL3210-1KE18-8AB1 inverter drive is a 4 kW 3 phase motor drive from the SINAMICS G120C series, optimized for industrial automation applications requiring reliable motor control. It operates with a supply voltage of 400V AC and delivers a maximum output current of 14.6 A with output frequencies up to 550 Hz. This inverter drive uses variable frequency drive technology with sensorless vector control offering energy savings through automatic flux reduction and V/f ECO mode.

The compact design with IP20 protection allows side mounting, fitting easily into small control cabinets located close to the machine it drives. The device supports an overall width of 195mm, depth of 200mm, and length of 73mm, which contributes to its flexibility in tight industrial spaces. The drive includes integrated USB connectivity for easy parameter configuration and firmware updates, streamlining commissioning and maintenance tasks.

Operation panels such as basic (BOP-2) and advanced (IOP) are optionally available, providing user-friendly interfaces for status monitoring and control adjustments. The inverter supports plug-in terminals and cloning functionalities via SD card or operator panel, facilitating quick setup replication across multiple units.

Designed for industrial environments, the drive maintains performance with operating temperatures between 0°C and 40°C, with possible derating above this range. It complies with major safety and electromagnetic compatibility standards including cULus, C-Tick, and CE certifications. As a Better World product, it emphasizes energy efficiency, helping reduce operational energy consumption and carbon footprint.

This Siemens inverter drive is suitable for a wide range of industrial and manufacturing uses such as conveyor drives, pumps, fans, and other motor-driven equipment requiring precise and efficient speed and torque control. It enhances operational productivity by combining robust hardware with ease of use and maintenance.

The compact SINAMICS G120C series inverter drive offers high power density in a small footprint. Designed for 3-phase AC motors with a power rating of 4 kW and supply voltage of 400V AC. Maximum output current of 14.6 A and output frequency up to 550 Hz ensures versatile motor performance.

Features energy-efficient sensorless vector control with automatic flux reduction for V/f ECO operation. Side mounting IP20 casing suitable for use in small control cabinets close to machinery. Integrated USB connection enables simple and fast software parameter assignment and commissioning.

Supports basic and advanced operation panels (BOP-2 or IOP) for intuitive control and monitoring. High service friendliness with plug-in terminals and cloning function via SD card or operator panel. Operates reliably in ambient temperatures from 0°C up to 40°C with derating possible up to 60°C.

Conforms to standards cULus, C-Tick, and CE, and is a Better World product designed to save energy. For detailed industrial automation solutions and reliable motor control products, explore the Siemens Inverter Drives category on EnvMart.
