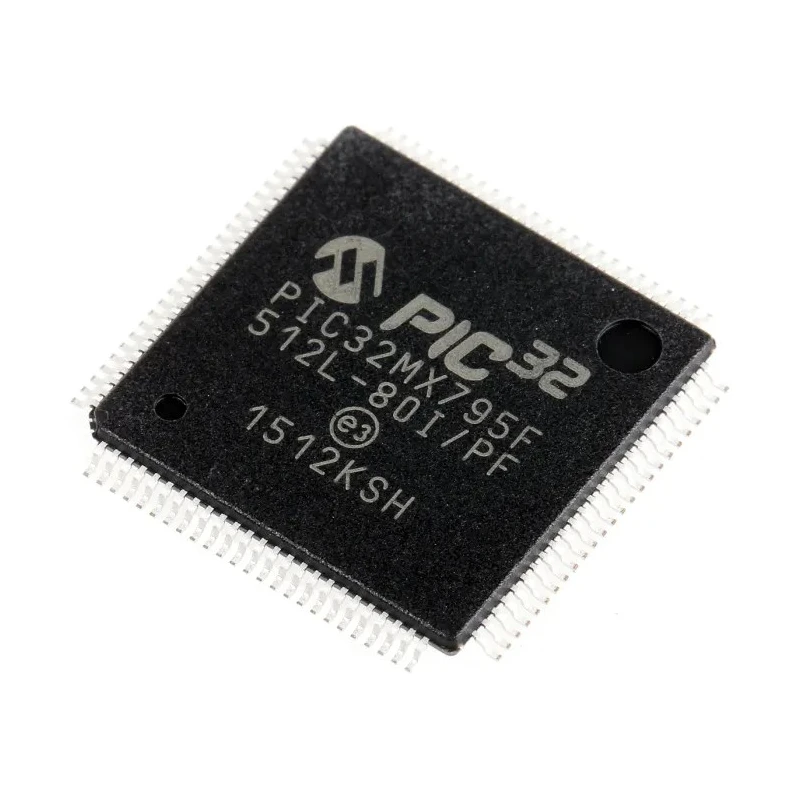

Microchip PIC32MX Microcontroller 32 bit MIPS32, 80 MHz, 512kB FLASH, 100-Pin TQFP PIC32MX795F512L-80I/PF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 14mm |
| Model | PIC32MX795F512L-80I/PF |
| Width | 14mm |
| Mount Type | Surface |
| Series | PIC32MX |
| Maximum Operating Temperature | +85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 128kB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.3V |
| Device Core | MIPS32 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 80MHz |
| Number of Programmable I/Os | 83 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | MIPS32 |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
Key Features
- Features a 32-bit MIPS32 M4K core running at 80 MHz for efficient processing.
- Equipped with 512kB FLASH program memory and 128kB RAM for large code and data storage.
- Supports multiple interfaces including USB 2.0 OTG, 10/100 Ethernet, CAN 2.0B, UART, SPI, and I2C for versatile connectivity.
- Provides 16-channel 10-bit ADCs, 2 analogue comparators, and multiple timers for precise control and measurements.
- Packaged in a 100-pin TQFP surface mount with compact dimensions of 14mm x 14mm x 1mm.
- Operates within a wide voltage range from 2.3V minimum to 3.6V maximum supply voltage.
- Designed for operating temperatures from -40°C to +85°C, suitable for demanding environments.
- Includes low-power features such as fail-safe clock monitor and independent watchdog timer for reliability.
Product Description
Microchip PIC32MX795F512L-80I/PF is a high-performance 32-bit microcontroller based on the powerful MIPS32 M4K core, running at up to 80 MHz. It features 512kB of FLASH program memory and 128kB of RAM, enabling complex and demanding embedded applications. This device is designed for reliability and efficiency with multiple low-power modes, a fail-safe clock monitor, programmable PLLs, and fast wake-up capabilities.
The microcontroller offers a rich set of integrated peripherals including a USB 2.0 full-speed OTG controller, 10/100 Ethernet MAC with MII/RMII interfaces, CAN 2.0B module, and 6 UARTs supporting data rates up to 20 Mbps. Additional communication interfaces such as SPI and I2C with SMBus support enhance connectivity options. The external graphics interface with 34 parallel master port pins allows direct LCD driving for advanced user interfaces.
Sensor measurement and control precision is enhanced by 16 channels of 10-bit ADCs, 2 analogue comparators, and multiple timers including 5 general purpose timers, input and output compare modules. The operational voltage range from 2.3V to 3.6V and wide operating temperature range from -40°C to +85°C make this microcontroller suitable for industrial, automotive, and commercial environments.
High-performance 32-bit MIPS32 M4K core operating at 80 MHz. 512kB FLASH memory and 128kB RAM for demanding applications. Comprehensive suite of peripherals supporting USB, Ethernet, CAN, UART, SPI, and I2C communications.
Advanced ADC and comparator features for precise analog signal processing. Compact 100-pin TQFP surface-mount package with 14mm x 14mm x 1mm dimensions. Wide operating voltage and temperature ranges for versatility across applications.
This microcontroller is ideal for embedded systems requiring high performance, multitasking capabilities, and rich connectivity options such as user interfaces, networking devices, industrial automation, and audio systems. The MPLAB Harmony Integrated Software Framework supports this MCU family, enabling rapid development with integrated drivers and libraries. Explore EnvMart’s electronics components category for more Microchip products and Microcontroller solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC32MX795F512L-80I/PF operates at a maximum clock frequency of 80 MHz.
It features a program memory size of 512kB FLASH.
This microcontroller is equipped with 128kB of RAM.
It operates within a temperature range of -40°C to +85°C.
The device supports multiple interfaces including USB 2.0 OTG, 10/100 Ethernet, CAN 2.0B, UART, SPI, and I2C.
It comes in a 100-pin TQFP package with dimensions of 14mm x 14mm x 1mm.
The minimum supply voltage is 2.3V, while the maximum is 3.6V.
It provides 16 channels of 10-bit ADCs for analog signal processing.
It includes low-power features such as a fail-safe clock monitor and an independent watchdog timer.
This model has 83 programmable I/Os available for various applications.
It is designed for high-impact graphics/user interfaces, Ethernet/USB/CAN connectivity, multitasking embedded control, and high-performance audio applications.
It is based on the MIPS32 M4K core architecture.
