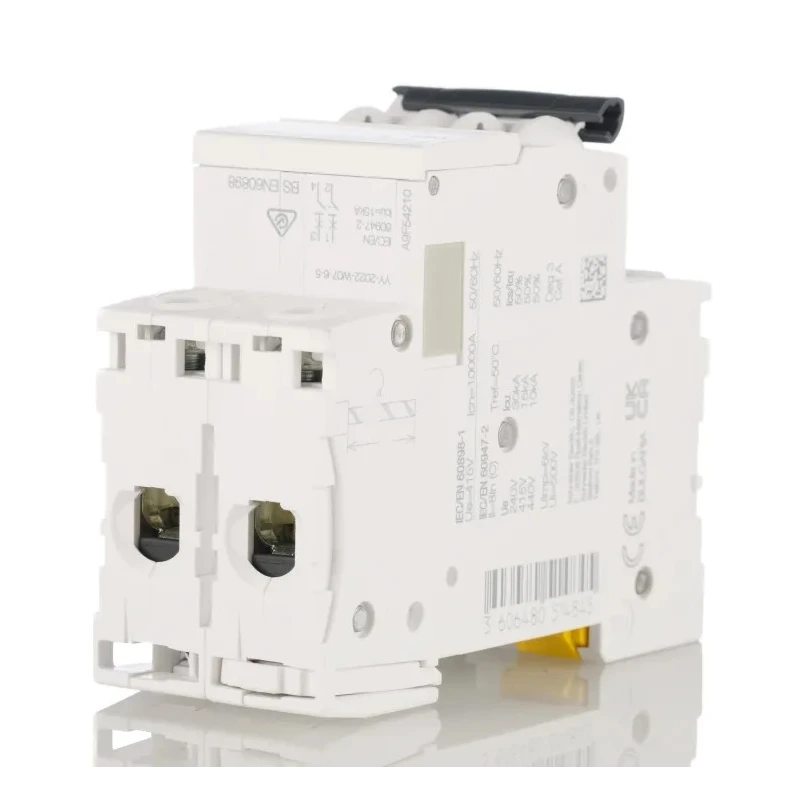

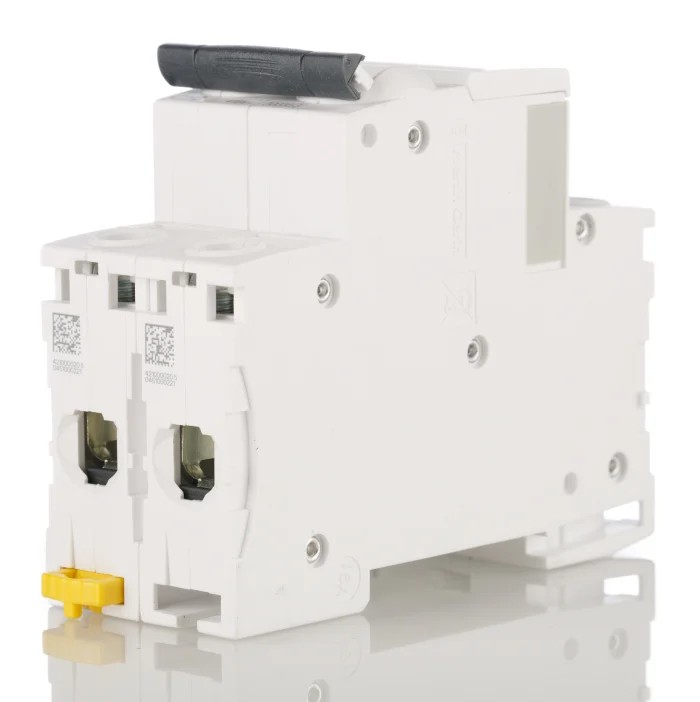

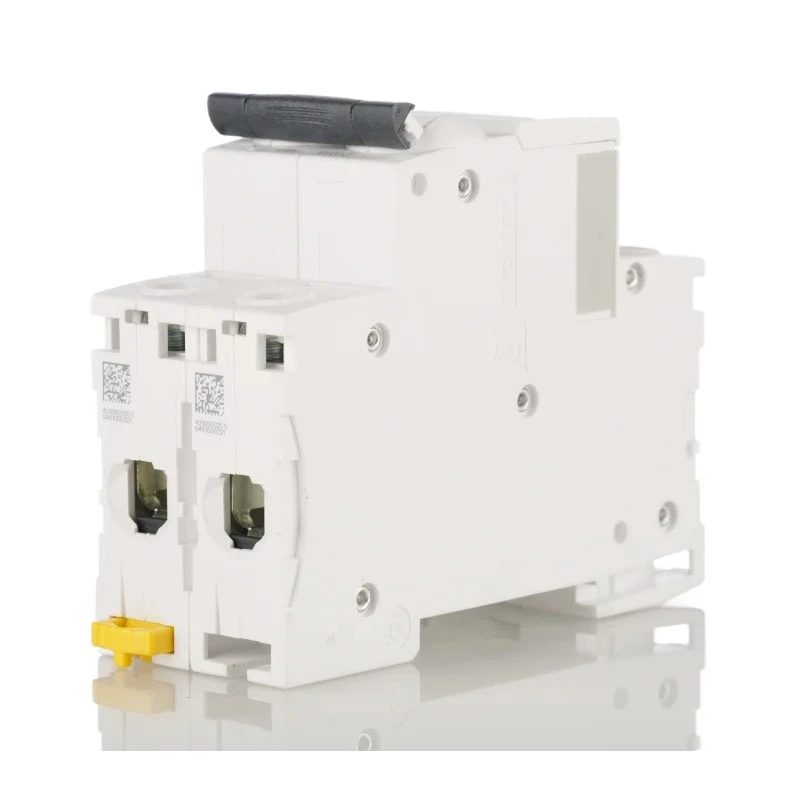

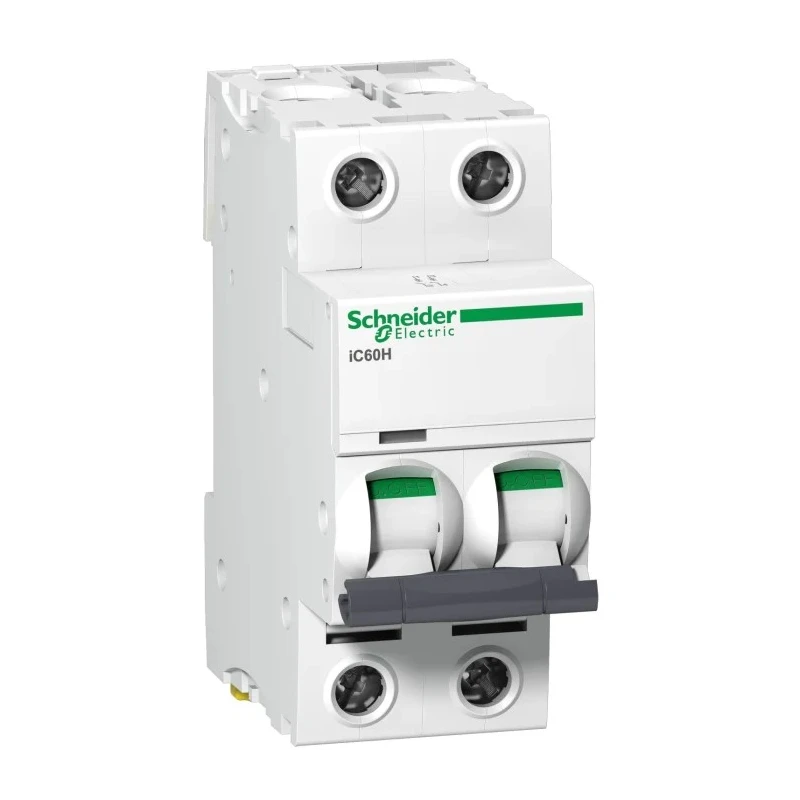

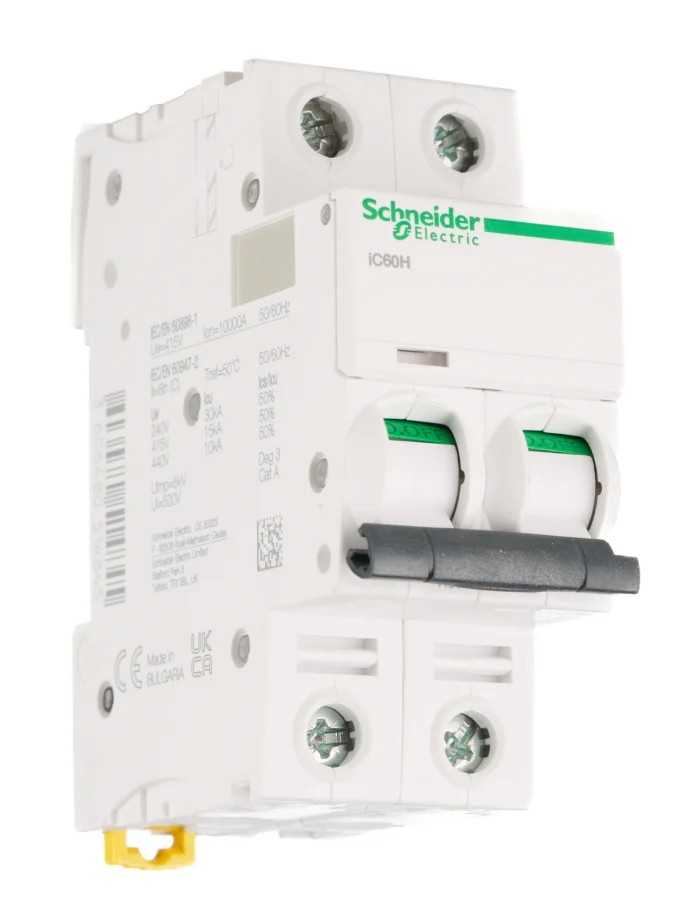

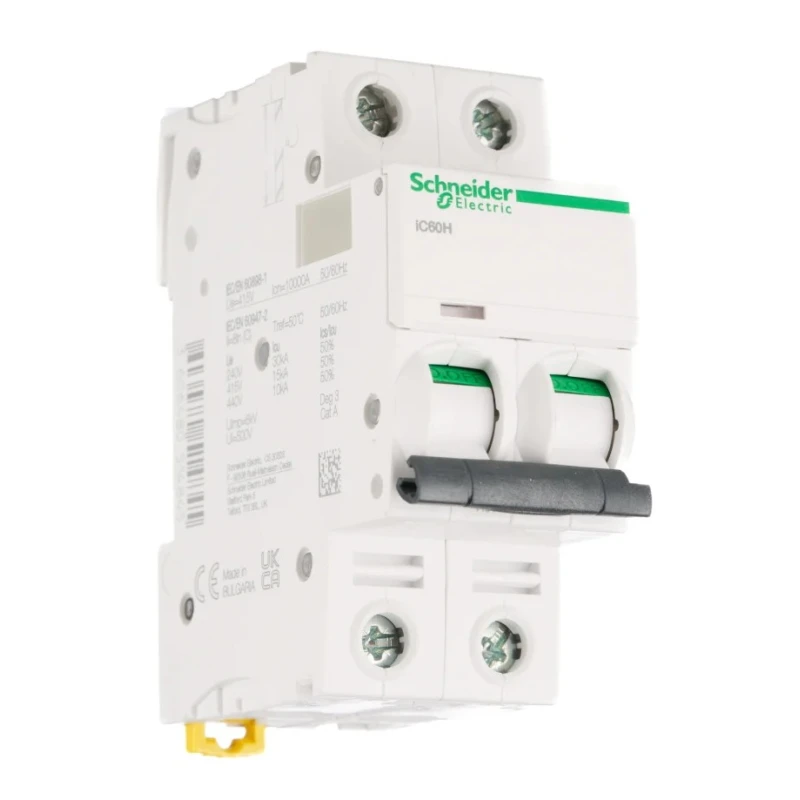

Schneider Electric Acti9 iC60H Miniature Circuit Breaker, 2-Pole, 6A, Type C, 12V-440V AC, 100V DC, Thermal A9F54206

Schneider Electric A9F54206 is a robust Acti9 iC60H series miniature circuit breaker designed for versatile circuit protection in industrial, commercial, and residential electrical installations. It offers a 2-pole configuration with a rated current of 6 amps and Type C thermal magnetic tripping characteristics.

The device supports a wide range of AC voltages from 12V through 133V, 220V, 240V, 380V, 415V, up to 440V, with a DC voltage rating of 100V, making it compatible with various electrical systems. It has a breaking capacity of 10 kiloamperes, ensuring reliable safety against overloads and fault currents.

Its form factor is compact with measurements of 85mm height, 78.5mm depth, and 36mm width, ideal for DIN rail mounting in electrical distribution panels. The circuit breaker features screw terminals for secure wiring connections and an IP20 rating for protection against accidental contact.

The thermal magnetic tripping mechanism offers dual protection by detecting both thermal overload and instantaneous short-circuit conditions, enabling quick disconnection and safeguarding electrical equipment. The rocker reset actuator provides convenient manual reset functionality, with an instantaneous break time for safety.

This circuit breaker is compliant with REACH and RoHS directives, ensuring environmental and safety standards are met. With a durable design, it offers electrical durability up to 10,000 cycles and operates reliably in a broad ambient temperature range, suitable for various operating environments.

Applications include protecting lighting circuits in residential buildings, controlling industrial machinery circuits, and integration within automation control systems requiring reliable circuit protection and management.

Supports rated AC voltages from 12V up to 440V and DC voltage rating of 100V. Design includes a 10 kA breaking capacity for overload and short-circuit safety. Screw terminal connections with IP20 protection against accidental contact.

Thermal magnetic trip mechanism for dual overload and short circuit protection. Compact DIN rail mount design with dimensions 85 x 36 x 78.5 mm. Complies with REACH and RoHS standards ensuring environmental safety. Electrical durability rated for up to 10,000 operation cycles.

Rocker reset actuator and instantaneous break time for efficient operation.
