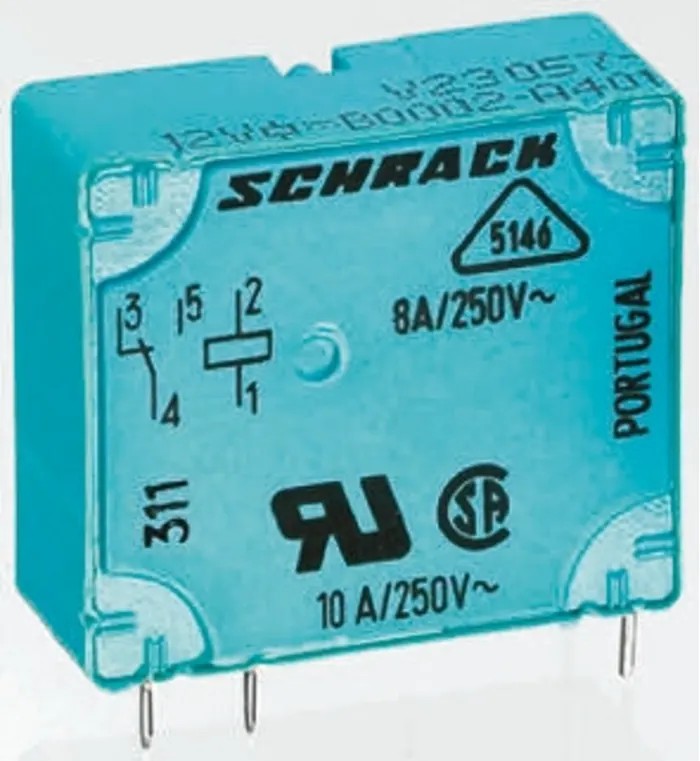

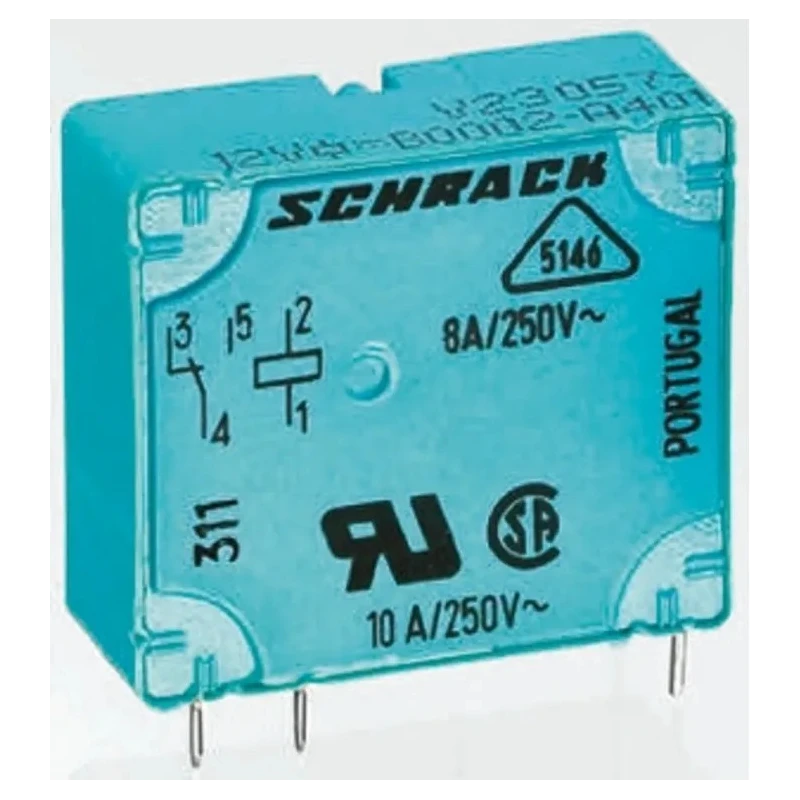

TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current SPDT V23057B2A101
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.1mm |
| Length | 28mm |
| Model | V23057B2A101 |
| Width | 10.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | Card E |
| Maximum Operating Temperature | 70°C |

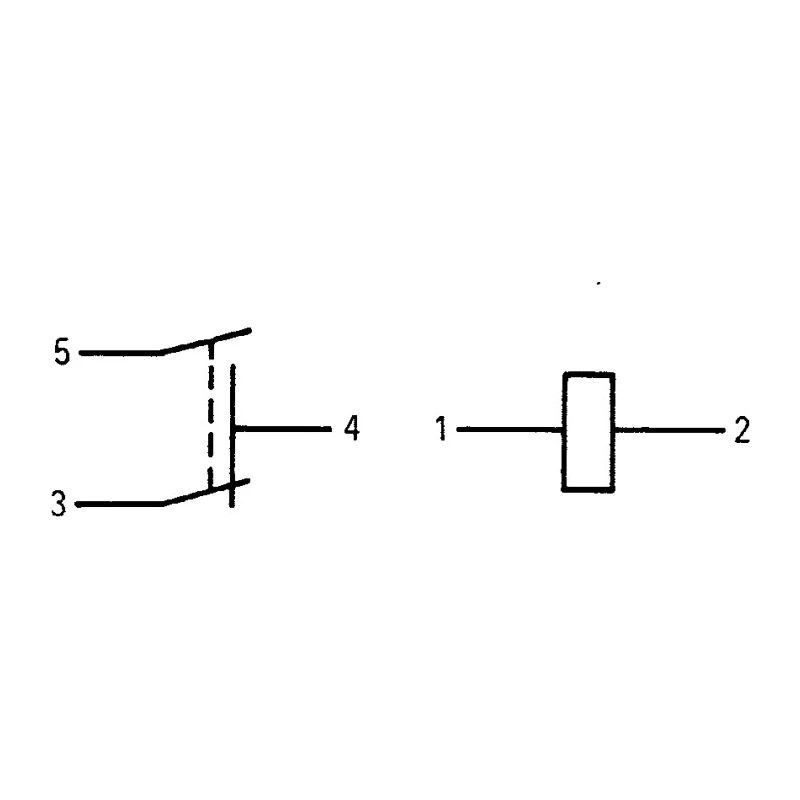

| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, UL E214025, VDE Cert. No. 5146 |
| Coil Resistance | 330Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 517mW |
Key Features
- Features a compact Card E series design suitable for PCB mounting.
- Contact configuration is Single Pole Double Throw (SPDT) ensuring versatile switching.
- Coil resistance of 330 ohms and coil power rating of 517 mW ensure efficient operation.
- Operates within temperature range of -40°C to +70°C for industrial use.
- Supports switching voltage up to 250 VAC and switching power of 2kVA.
- Terminals are designed for solder mounting on PCBs for stable electrical connections.
- Constructed with silver alloy contacts for durability and reliable conductivity.
- Certified to IEC 61810, UL E214025, and VDE Cert. No. 5146 standards, ensuring compliance and quality.
Product Description
TE Connectivity V23057B2A101 PCB Power Relay is engineered for precision and reliability in electrical switching applications requiring a 12V DC coil and 5A switching current. This relay features an SPDT contact configuration housed within a compact Card E series package designed specifically for PCB mounting.
With coil resistance of 330 ohms and coil power rated at 517 mW, it offers efficient coil operation with a robust performance span from -40°C to +70°C, making it suitable for demanding industrial, automation, and electrical systems.
The relay supports switching power up to 2kVA and switching AC voltage up to 400V AC, meeting rigorous operational demands. The solder terminal type ensures consistent and reliable PCB assembly.

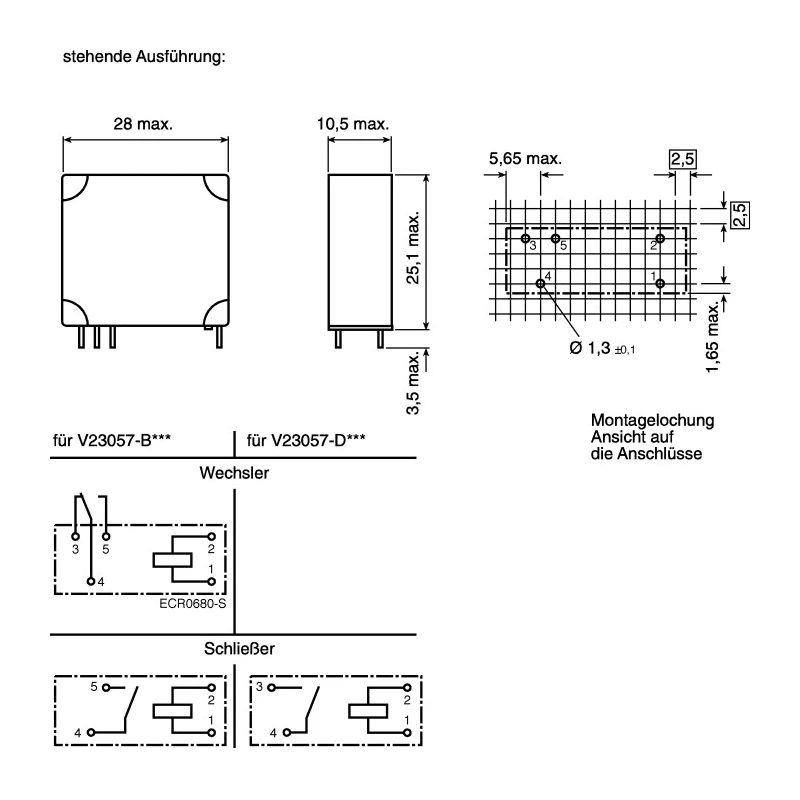

Manufactured with silver alloy contacts, this relay assures excellent conductivity and long service life. Its compact dimensions (28mm x 10.4mm x 25.1mm) facilitate easy incorporation into varied electronic assemblies.
Certified under IEC 61810, UL E214025, and VDE standards, it guarantees compliance with international quality and safety norms. The product is manufactured in the Czech Republic, representing high-quality European engineering.
Features a compact Card E series design suitable for PCB mounting. Contact configuration is Single Pole Double Throw (SPDT) ensuring versatile switching. Coil resistance of 330 ohms and coil power rating of 517 mW ensure efficient operation.
Operates within temperature range of -40°C to +70°C for industrial use. Supports switching voltage up to 250 VAC and switching power of 2kVA. Terminals are designed for solder mounting on PCBs for stable electrical connections.
Constructed with silver alloy contacts for durability and reliable conductivity. Dimensions: 28mm length, 10.4mm width, and 25.1mm height, allowing easy integration in compact devices. Certified to IEC 61810, UL E214025, and VDE Cert. No. 5146 standards, ensuring compliance and quality.
Originates from Czech Republic, reflecting high manufacturing standards.
This power relay is ideal for use in industrial automation systems, electrical control panels, HVAC systems, manufacturing equipment, and other applications requiring reliable switching at moderate current and voltage ratings.
Explore the extensive range of industrial relays at EnvMart for robust and certified components suitable for your electrical and automation needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 5A, making it suitable for moderate current applications.
This model operates with a 12V DC coil voltage, ensuring compatibility with various low-voltage systems.
It supports a maximum switching voltage of 400V AC, allowing it to be used in various AC applications.
The relay measures 28mm in length, 10.4mm in width, and 25.1mm in height, facilitating easy integration into compact devices.
The relay features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching options.
The coil resistance is 330 ohms, which contributes to its efficient operation.
The coil power rating is 517 mW, ensuring effective performance during operation.
It operates within a temperature range of -40°C to +70°C, making it suitable for industrial environments.
The relay is equipped with solder terminals, designed for stable electrical connections on PCBs.
The contacts are constructed from silver alloy, which ensures reliable conductivity and durability.
It is certified to IEC 61810, UL E214025, and VDE Cert. No. 5146 standards, ensuring compliance with international quality and safety norms.
This power relay is manufactured in the Czech Republic, reflecting high manufacturing standards.
