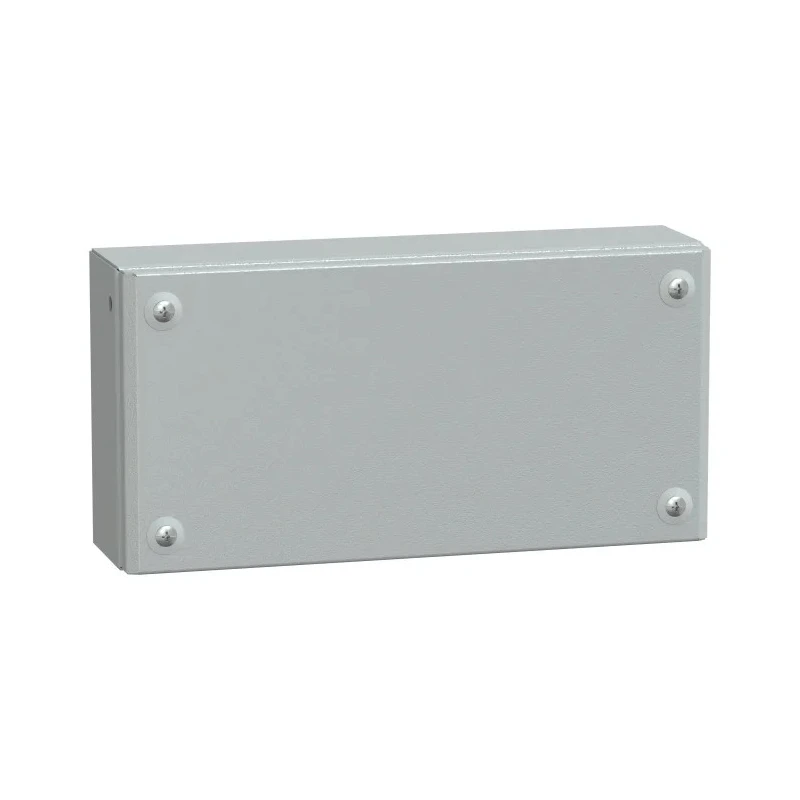

Schneider Electric PanelSeT SBM Series Steel Wall Box, IP66, 150 mm x 300 mm x 80 mm NSYSBM15308
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYSBM15308 |
| IP Rating | IP66 |
| Series | PanelSeT SBM |
| External Width | 300mm |
| External Depth | 80mm |
| External Height | 150mm |
| Standards/Approvals | RoHS, DNV, UL, REACH, BV, IEC 62208, LR |
| Door Lock Type | Screw |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| The enclosure has an outside sealed area | PZ2 screwdriver captive screw |
| Rittal KL Series Steel Wall Box, IP66, 150 mm x 300 mm x 80mmBrand | Rittal |
| Legrand Atlantic Series Steel Wall Box, IP66, 150 mm x 300 mm x 120 mmBrand | Legrand |
Key Features
- Constructed with durable steel body for robust protection.
- Equipped with IP66 rating for dust tight and water jet protection.
- Grey polyester painted finish for corrosion resistance and aesthetics.
- Includes 1 cover with half-turn metal screw and 4 cover screws for secure closure.
- Features a PZ2 screwdriver captive screw lock mechanism for reliable sealing.
- Suitable for mounting sensitive electronics in industrial machines and building applications.
- Offers external mechanical impact resistance of IK10 against 5 kg object dropped from 40 cm.
- Designed with folded gutters and drilled profiles for mounting plates and DIN rails installation.
Product Description
Schneider Electric NSYSBM15308 PanelSeT SBM Series Steel Wall Box is a premium steel enclosure designed for industrial machine and building applications where robust protection and longevity are critical. With external dimensions of 150 mm height, 300 mm width, and 80 mm depth, this wall-mount enclosure meets IP66 standards, providing excellent protection against dust ingress and powerful water jets, making it suitable for both indoor and outdoor installations.
The enclosure is constructed from high-quality steel with a grey polyester RAL 7035 paint finish that combines corrosion resistance with an attractive, tough appearance to safeguard sensitive electronics. The cover features a polyurethane sealing gasket and is secured using a half-turn metal screw plus four cover screws, ensuring a sealed and locked environment with a PZ2 screwdriver captive screw mechanism for reliable locking.
Designed for ease of mounting, the unit includes folded gutters in the front and either two or three drilled profiles at the back for installing mounting plates and DIN rails with fixing centers of 12.5 mm. A welded M6 x 16 earth stud in the cover provides equipotential bonding, enhancing safety compliance.
The PanelSeT SBM enclosures deliver external mechanical impact resistance rated to IK10, equivalent to protection against a 5 kg object dropped from 40 cm height, guaranteeing durability in demanding environments.
Durable steel construction offers robust mechanical protection. IP66 rated for excellent ingress protection against dust and water jets. Grey polyester paint finish ensures corrosion resistance and attractive aesthetics.
Secure locking with PZ2 screwdriver captive screws and multiple cover screws. Facilitates installation of mounting plates and DIN rails with drilled rear profiles. Incorporates welded earth stud for equipotential connection and safety compliance.
Meets multiple standards including RoHS, DNV, UL, REACH, BV, IEC 62208, and LR. Suitable for use in industrial, construction, underground parking, road, and railway tunnel applications.
Designed for easy installation and lasting performance, this Schneider Electric PanelSeT SBM steel wall box is ideal for protecting sensitive electrical components in harsh environments. It is part of Schneider Electric's sustainable RS Better World product range, emphasizing energy efficiency and responsible material use.
Explore more Schneider Electric enclosures and accessories at EnvMart for reliable industrial electrical solutions.
Explore more products in our Wall Boxes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of the Schneider Electric PanelSeT SBM Series Steel Wall Box are 150 mm in height, 300 mm in width, and 80 mm in depth.
This model has an IP66 rating, providing excellent protection against dust ingress and powerful water jets.
It is constructed from high-quality steel, ensuring robust mechanical protection.
The enclosure has an IK10 rating, which indicates it can withstand external mechanical impacts from a 5 kg object dropped from a height of 40 cm.
The cover is secured using a half-turn metal screw and four cover screws, along with a PZ2 screwdriver captive screw for reliable sealing.
It meets multiple standards including RoHS, DNV, UL, REACH, BV, IEC 62208, and LR.
This unit supports internal mounting with panel installation and includes drilled profiles for mounting plates and DIN rails.
The enclosure features a grey polyester paint finish, which provides corrosion resistance and an attractive appearance.
Yes, due to its IP66 rating, it is suitable for both indoor and outdoor installations.
The welded M6 x 16 earth stud is designed for equipotential bonding, enhancing safety compliance in electrical installations.
It is suitable for use in industrial, construction, underground parking, road, and railway tunnel applications.
The Schneider Electric PanelSeT SBM Series Steel Wall Box is manufactured in India.
