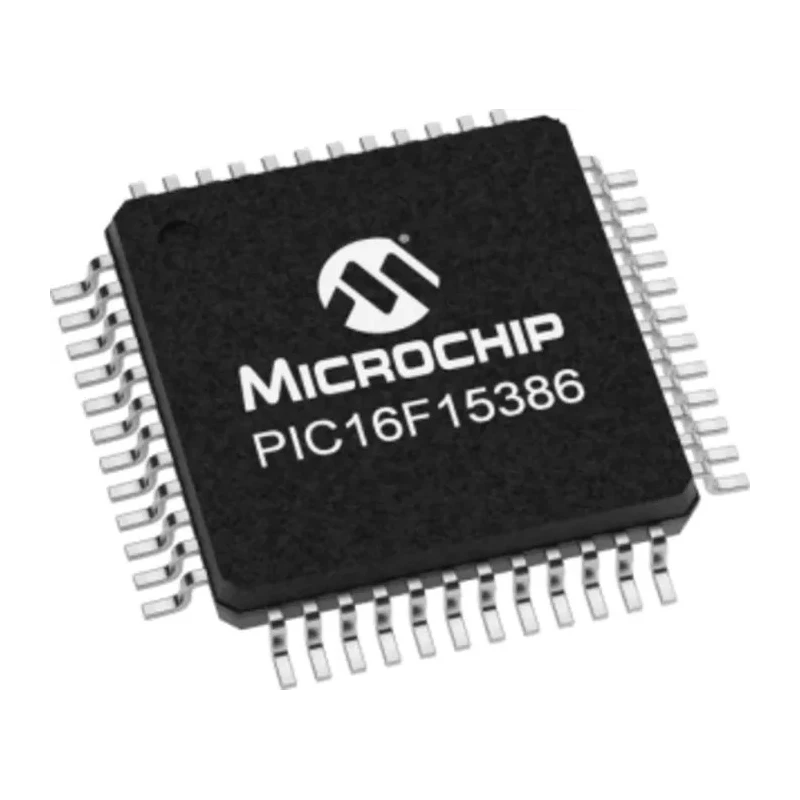

Microchip 8 bit PIC Microcontroller PIC16F15386-I/PT, 32 MHz, 28kB FLASH, 48-Pin TQFP

Microchip PIC16F15386-I/PT 8 bit PIC Microcontroller provides a versatile and robust MCU solution designed for embedded systems requiring reliable performance and rich peripheral integration. The microcontroller uses a PIC core architecture and is housed in a 48-pin TQFP surface mount package measuring 7mm by 7mm by 1.05mm, supporting a maximum clock frequency of 32 MHz and 28kB of FLASH memory.

Operating at a voltage between 1.8V and 5.5V, this microcontroller incorporates 2kB of SRAM to facilitate temporary data storage for dynamic operations. It supports multiple communication interfaces including SPI, I2C, and EUSART for flexible connectivity in diverse system designs.

This model features advanced analogue and digital peripherals, including a 5-bit Digital-to-Analogue Converter (DAC), two analogue comparators for high-accuracy signal assessment, and a 43-channel 10-bit Analog-to-Digital Converter (ADC) with an integrated voltage reference for precise measurements.

Additional features include configurable logic controllers (CLC), a complementary waveform generator (CWG), and a numerically controlled oscillator (NCO). It offers enhanced core capabilities with 49 instructions and 16 levels of stack, enabling efficient program execution. The device also supports low power consumptions modes (IDLE and DOZE), low-power Brown-Out Reset (LPBOR), and programmable Brown-Out Reset, extending operational reliability in power-sensitive environments.

Timers and watchdog functions are well supported with two 16-bit timers, one 8-bit timer, and a window watchdog timer, suitable for timing-critical industrial and household appliance applications. The microcontroller operates reliably across a temperature range from -40°C to 85°C making it suitable for industrial and embedded applications needing robust performance under varying thermal conditions.

Operates at 32 MHz clock speed with 28kB FLASH and 2kB RAM. Supports SPI, I2C, and EUSART communication protocols. Includes 44 programmable I/Os and multiple configurable peripherals. Designed with low power consumption modes and programmable resets for power efficiency and protection.

Compliant with RoHS standards ensuring environmentally responsible manufacturing. Ideal for embedded designs, industrial control, and household appliances. 48-pin TQFP surface mount package with compact 7x7x1.05mm dimensions.

Wide operating voltage range from 1.8V to 5.5V. Maximum power dissipation is 800mW ensuring safe operation within thermal limits. Enhanced MCU core architecture with RISC instructions supporting complex applications.
