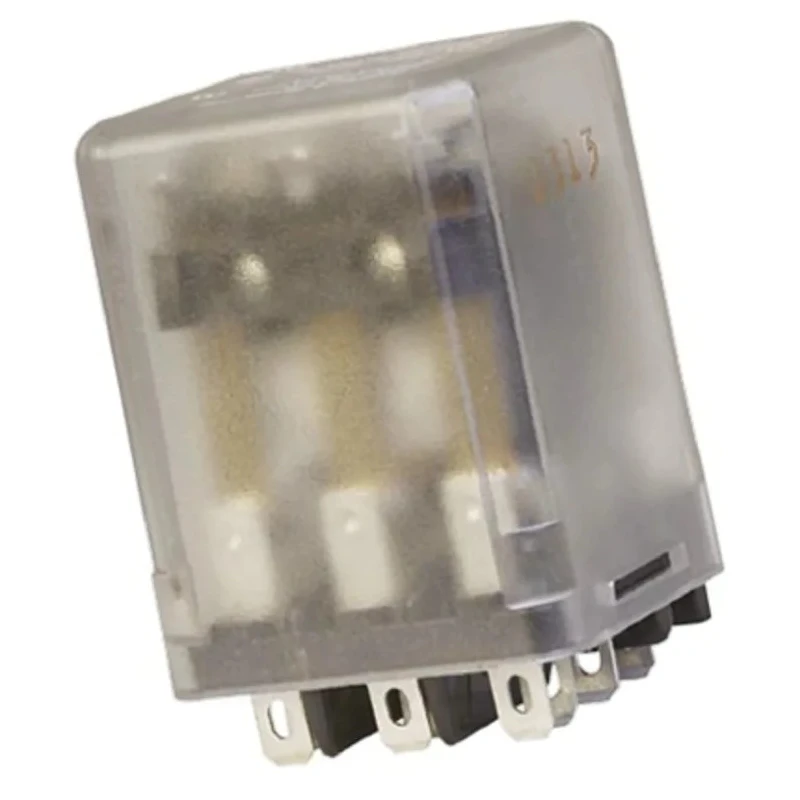

TE Connectivity Power Relay 120V ac Coil, 10A Switching Current, 3PDT Contact Configuration KUP-14A15-120
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 48.4mm |
| Length | 38.9mm |
| Model | KUP-14A15-120 |
| Width | 35.7mm |
| Contact Material | Silver Alloy |
| Series | KUP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | UR, UL, CSA |
| Coil Resistance | 1.7kΩ |
| Coil Voltage | 120V ac |
| Switching AC Voltage | 240V ac |
Key Features
- Offers a 120V AC coil voltage suitable for industrial applications.
- Provides a switching current capacity of 10 amperes.
- Designed with a 3PDT contact configuration for versatile switching needs.
- Constructed with silver alloy contact material for enhanced durability.
- Compact dimensions measuring 38.9mm length, 48.4mm height, and 35.7mm width.
- Coil resistance is specified at 1.7 kilo-ohms ensuring efficient coil performance.
- Operating temperature range spans from -45°C to 70°C suitable for varied environments.
- Equipped with quick connect/solder terminals for easy installation.
Product Description
TE Connectivity KUP-14A15-120 Power Relay is a robust enclosed relay designed for electrical control applications with a coil voltage of 120 volts AC and a switching current rated at 10 amperes. It features a 3PDT (Triple Pole Double Throw) contact configuration, making it suitable for complex switching tasks in industrial and commercial environments.
The relay has a compact form factor with dimensions of 38.9 mm length, 48.4 mm height, and 35.7 mm width, facilitating integration into panel assemblies. Silver alloy contacts ensure long-lasting conductivity and reliability, while a coil resistance of 1.7 kilo-ohms provides consistent coil operation.
Designed for reliability, it operates effectively across a temperature range from -45°C to 70°C, meeting demanding industrial conditions. Installation is simplified by the use of 4.75 mm quick connect and solder terminals. The device is enclosed in a bracket-mounted casing, providing mechanical protection and ease of mounting.
The relay meets recognised safety standards UR, UL, and CSA, ensuring compliance with global safety and quality requirements. Offers a 120V AC coil voltage suitable for industrial applications. Provides a switching current capacity of 10 amperes.
Designed with a 3PDT contact configuration for versatile switching needs. Constructed with silver alloy contact material for enhanced durability. Compact dimensions measuring 38.9mm length, 48.4mm height, and 35.7mm width.
Coil resistance is specified at 1.7 kilo-ohms ensuring efficient coil performance. Operating temperature range spans from -45°C to 70°C suitable for varied environments. Equipped with quick connect/solder terminals for easy installation.
Enclosed relay with bracket mounting housing for secure setup. Complies with UR, UL, and CSA safety and quality standards.
This power relay is ideal for use in industrial automation, electrical distribution, control panels, manufacturing, and HVAC systems where reliable power switching and safety standards compliance are critical.
Explore EnvMart’s extensive range of TE Connectivity products and other Power Relays to find solutions tailored to your electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 120V AC, making it suitable for various industrial applications.
It has a maximum switching current capacity of 10 amperes.
This relay features a 3PDT (Triple Pole Double Throw) contact configuration, allowing for versatile switching capabilities.
The coil resistance is specified at 1.7 kilo-ohms, ensuring efficient coil performance.
The dimensions of this unit are 38.9 mm in length, 48.4 mm in height, and 35.7 mm in width.
It operates effectively within a temperature range of -45°C to 70°C, suitable for various environments.
It is equipped with quick connect and solder terminals for easy installation.
The contacts are constructed from silver alloy, which enhances conductivity and reliability.
This model complies with UR, UL, and CSA safety and quality standards, ensuring reliable operation.
It is suitable for use in industrial automation, electrical distribution, control panels, manufacturing, and HVAC systems.
The maximum switching AC voltage for this relay is 240V AC.
This power relay is manufactured in India.
