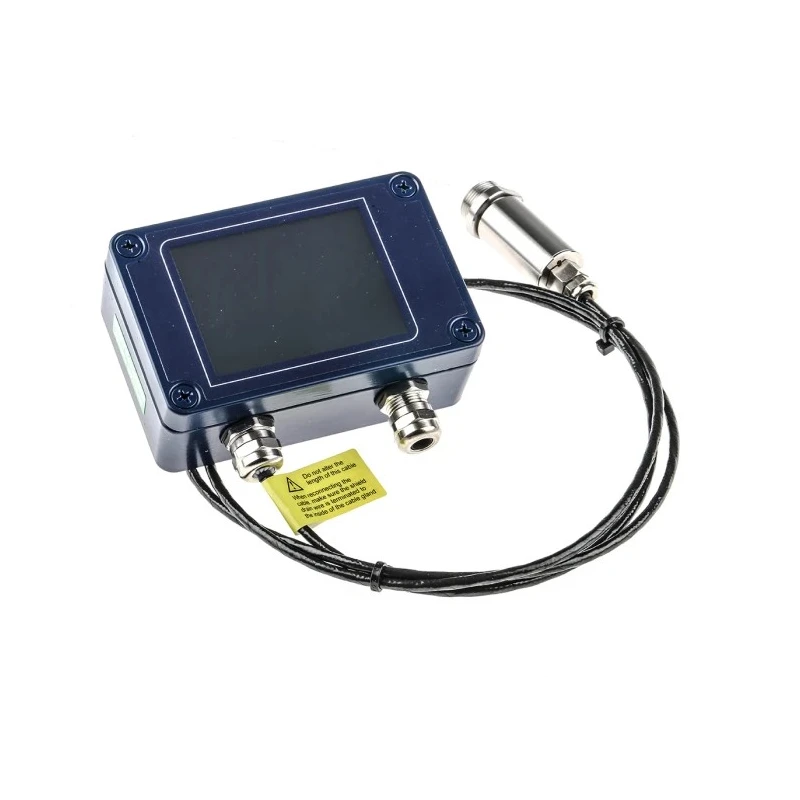

Calex Infrared Temperature Sensor 1 m, -20 °C to 1000 °C, Accuracy 1%FS, 24V dc CIRSPMHA201CTCRTMSD

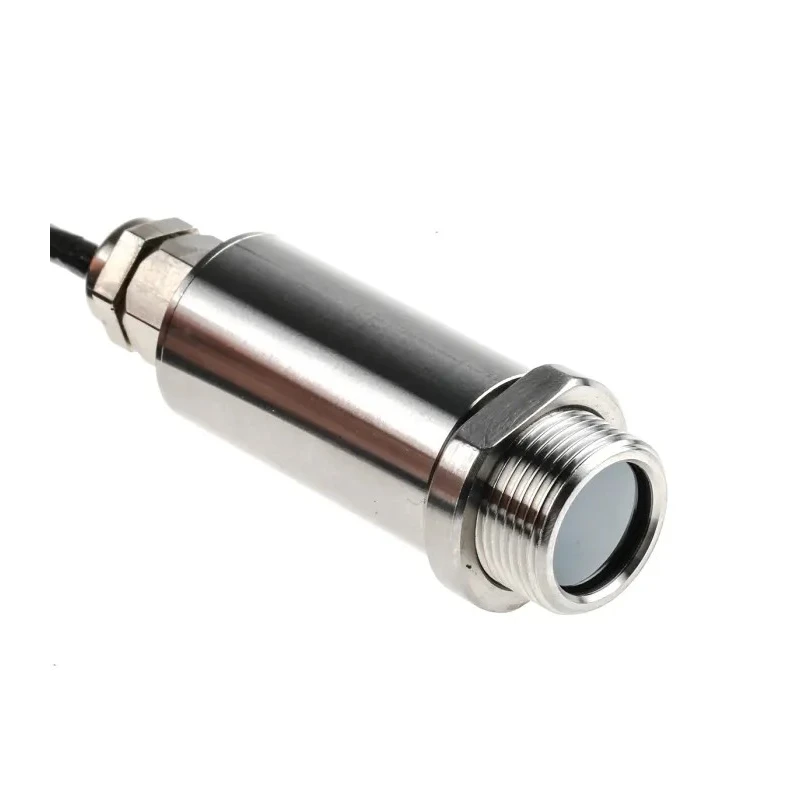

Calex CIRSPMHA201CTCRTMSD Infrared Temperature Sensor is engineered for accurate temperature sensing across a broad range, from -20 °C up to 1000 °C, with an accuracy of 1% full scale. The 18 mm diameter sensing head is constructed from durable 316 stainless steel and aluminium, providing robust industrial-grade protection with an IP65 rating, suitable for challenging environments.

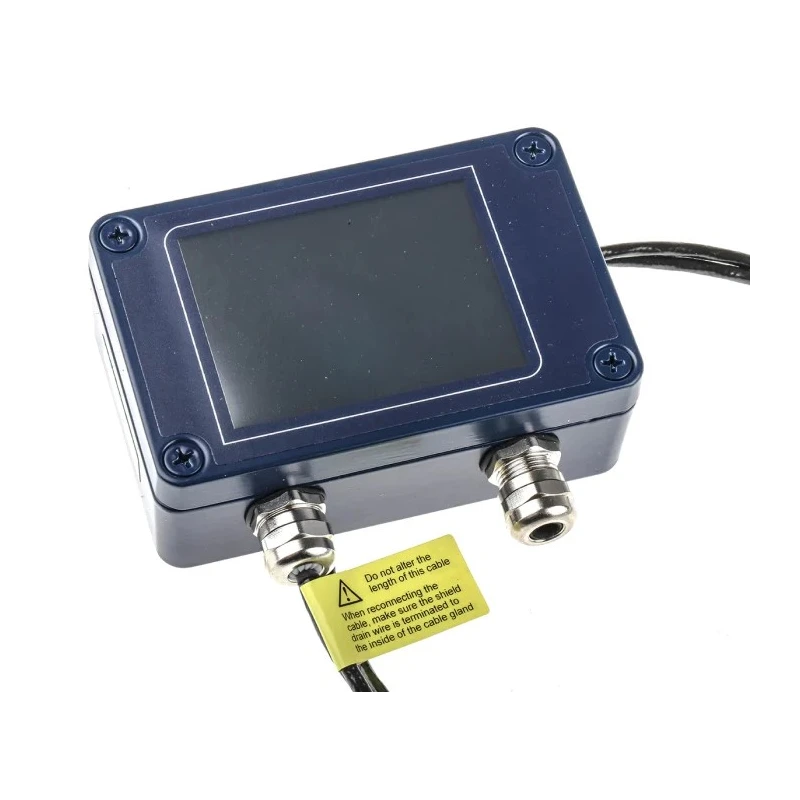

The sensor integrates a configurable electronics module with an optional touch screen display, enhancing ease of use with intuitive temperature indication and configuration options. Its quick 240 ms response time and adjustable emissivity settings ranging from 0.2 to 1 allow for precise temperature measurements tailored to various surfaces and materials.

This model supports analogue alarm outputs rated at 24 V DC, eliminating the need for separate trip amplifiers, and offers data logging capabilities to a MicroSD card on touchscreen models. The sensor features infrared spectral range sensitivity from 8 to 14 micrometers and supports wall mounting with secure screw terminal connections.

Designed to operate at a maximum ambient temperature of 60 °C with a maximum supply voltage of 24V dc, the sensor is compliant with CE, RoHS, EN61326-1:2006, and IEC industrial standards ensuring electromagnetic compatibility and operational stability.

With cable lengths of 1 meter each for sensing head and output, installation flexibility is ensured across diverse industrial, automation, HVAC, manufacturing, and laboratory settings. The product is manufactured in the United Kingdom, guaranteeing stringent quality assurance.

Measures infrared temperature in the range of -20 °C to 1000 °C with 1%FS accuracy. Equipped with an 18 mm diameter sensing head made of 316 stainless steel and aluminium. Provides an analogue alarm output with a response time of 240 ms.

Features configurable emissivity settings from 0.2 to 1 for accuracy adjustments. Includes a touch screen digital interface for easy configuration and display. Designed for wall mounting with screw terminals and an IP65 rated sensing head.

Operates on a maximum supply voltage of 24V dc, suitable for various industrial applications. Complies with CE, RoHS, EN61326-1:2006, and several IEC standards ensuring reliable operation. Cable lengths of 1 m for both sensing head and output ensure flexible installation.

Manufactured in the United Kingdom, supporting high-quality industrial standards. Explore more infrared temperature sensing devices and automation control gear in our Electronics & Electricals category at EnvMart for all your industrial measurement needs.
