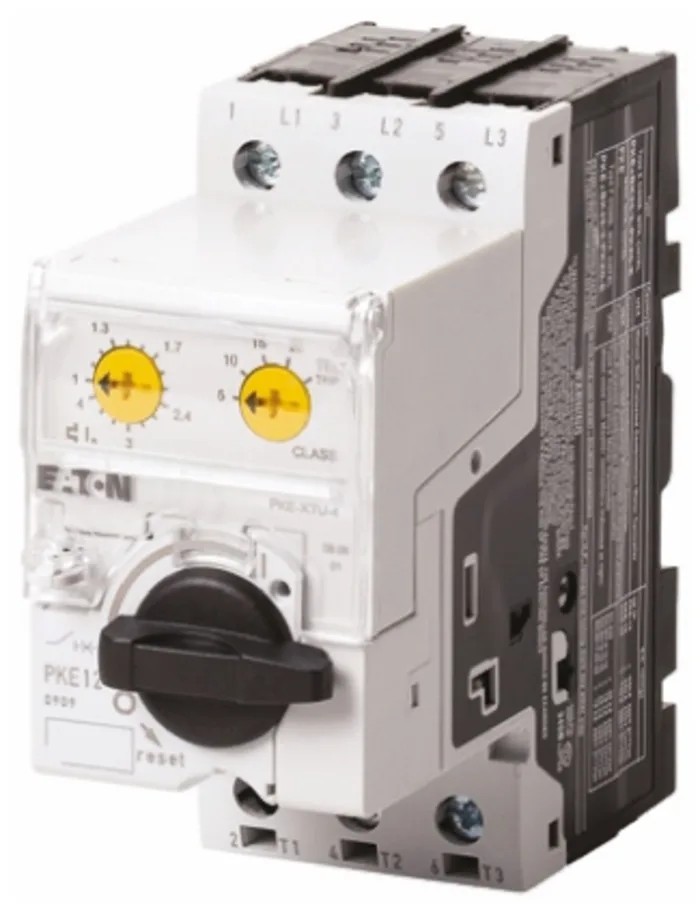

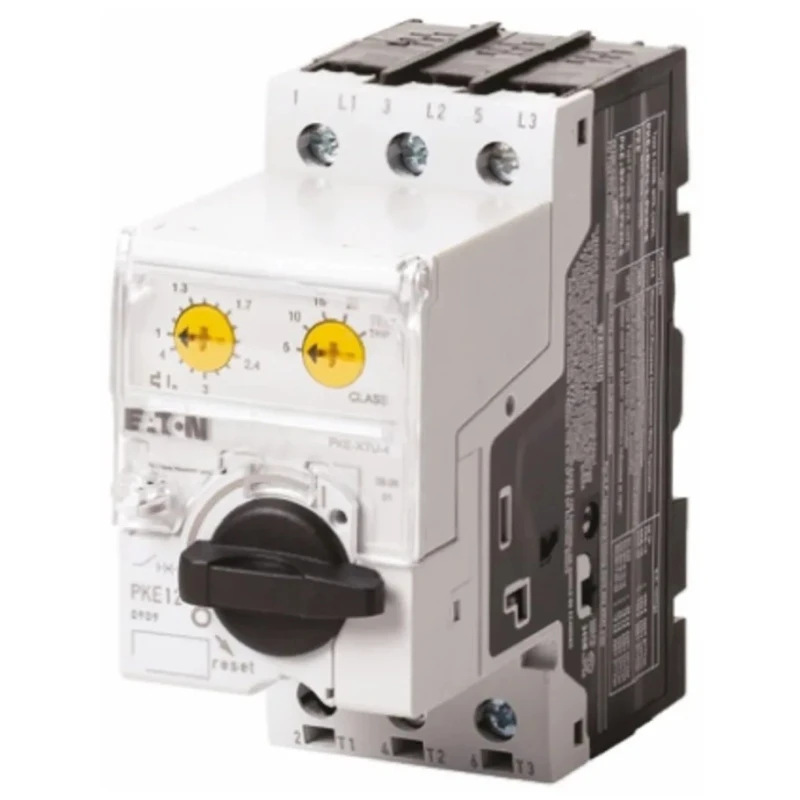

Eaton Motor Protection Circuit Breaker 12A, 3 A, 690V AC, IP20, -25 to 55 °C, 3 Poles 121733 PKE12/XTU-12
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 121733 PKE12/XTU-12 |
| IP Rating | IP20, IP00 |
| Overall Length | 101mm |
| Current Rating | 12, 3A |
| Series | PKE |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Sensing type | Current |
| Supply Voltage | 690V ac |
| Number of Poles | 3 |
| Overall Depth | 102.5mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Standard trip block 1 - 4 A for PKE12 & PKE 32 | 774-0174 |
| Standard trip block 3 - 12 A for PKE12 & PKE 32 | 774-0162 |
| Standard trip block 8 - 32 A for PKE32 | 774-0171 |
| Advanced trip block 0.3 - 1.2 A for PKE12 with connection to SmartWire-DT | 774-0178 |
| Advanced trip block 8 - 32 A for PKE32 with connection to SmartWire-DT | 774-0180 |
Key Features
- Suitable for motor protection with current ratings of 12A and 3A.
- Operates within a temperature range of -25°C to 55°C for versatile applications.
- Features 3 poles and IP20, IP00 ratings ensuring appropriate ingress protection.
- Complies with IEC/EN 60947-4-1, UL, VDE, CSA, and CE standards for safety and quality.
- Screw-in terminals for secure electrical connections and easy wiring.
- Includes magnetic protection for short-circuit safety without requiring an external relay.
- Compact dimensions with 101mm length, 45mm width, and 102.5mm depth optimize panel space.
- Modular design compatible with other motor starter components for efficient panel assembly.
Product Description
Eaton 121733 PKE12/XTU-12 Motor Protection Circuit Breaker is designed to protect electric motors from unbalanced phases and current overloads up to 12A at 690V AC with a robust operating temperature range from -25°C to 55°C.
This circuit breaker offers precise and extremely stable tripping characteristics, enhancing motor safety in various industrial and automation environments. It features a manual rotary switch for easy operation and screw-in terminals for straightforward wiring, making installation efficient and reliable.
The breaker is constructed with a modular design that enables compatibility with other control panel components, facilitating streamlined assembly processes. It includes magnetic protection against short circuits, eliminating the need for external relays and simplifying system integration.
Complying with international standards such as IEC/EN 60947-4-1, UL 60947-4-1, VDE 0660, CSA, and CE certifications, this breaker assures high safety and reliability standards in demanding motor protection scenarios.
Its compact dimensions (101mm x 45mm x 102.5mm) and 3-pole configuration suit various industrial, construction, HVAC, and manufacturing applications, including pumps, fans, and crushers. The IP20 and IP00 ingress protection ratings ensure operational reliability in indoor environments.
Current ratings of 12A and 3A accommodate diverse motor protection requirements. Wide operating temperature range from -25°C to 55°C supports varied environmental conditions. Magnetic short-circuit protection enhances system safety without additional relays.
Compact footprint and modular design enable efficient control panel integration. Comprehensive compliance with IEC, UL, VDE, CSA, and CE standards. Screw-in terminals ensure secure and easy electrical connections.
Protect your motors efficiently with Eaton’s PKE12/XTU-12 Motor Protection Circuit Breaker, a reliable choice for industrial, laboratory, HVAC, and commercial motor safety needs. Explore more in the Motor Protection Circuit Breaker category at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 12A.
It supports a supply voltage of 690V AC.
The operating temperature range is from -25°C to 55°C.
This model features a 3-pole configuration.
The dimensions are 101mm in length, 45mm in width, and 102.5mm in depth.
It has an IP20 and IP00 ingress protection rating.
It complies with IEC/EN 60947-4-1, UL, VDE, CSA, and CE standards.
Yes, it includes magnetic protection for short-circuit safety without needing an external relay.
It features screw-in terminals for secure electrical connections and easy wiring.
This circuit breaker is suitable for various applications including industrial, construction, HVAC, and manufacturing, such as pumps and fans.
The sensing type for this model is current.
Yes, it has a modular design that allows compatibility with other motor starter components for efficient panel assembly.
