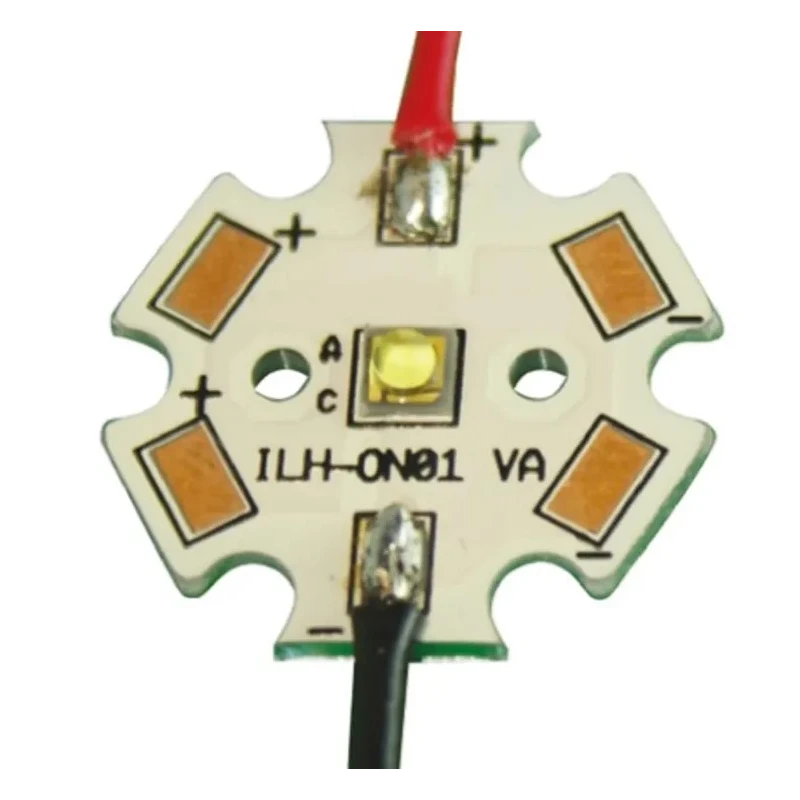

Intelligent LED Solutions OSLON 80 1+ PowerStar LED Array 1-LEDs Orange, Red LED ILH-ON01-RDOR-SC211-WIR200.

Intelligent LED Solutions ILH-ON01-RDOR-SC211-WIR200. LED Array utilizes advanced OSLON 80 1+ PowerStar LED technology featuring 1 Orange, Red LED. It combines Osram’s latest power chip technology for superior efficiency and thermal management, making it ideal for various industrial lighting purposes.

The LED array has a compact aluminum substrate dimension of 20mm x 20mm x 3.85mm, facilitating excellent heat dissipation with a low thermal resistance of 7 K/W. Operating at a current of 1A and a voltage range of 2 to 2.6V, it produces a typical luminous flux of 80 lumens while consuming 1.54 watts of power.

Its design includes a silicone resin lens with an 80° beam angle for focused light output, and pre-wired 200mm connection wires enhance installation convenience. The onboard driver supports constant voltage operation and simplifies circuit integration through soldered connections. Fixing holes compatible with M3 screws provide easy and secure mounting.

Built to comply with RoHS regulations, this LED array ensures environmentally-friendly performance. Secondary optics are included to further optimize lighting applications. The product is suitable for industrial, commercial, retail, and entertainment lighting scenarios including decorative, task lighting, downlighters, and spotlights.

PowerStar LED Arrays can be linked to form longer chains for scalable lighting solutions. The robust design supports up to 100,000 hours of operation maintaining 70% of initial brightness, ensuring long service life and reliability.

Incorporates a single Oslon SSL 80 LED with 80° silicone resin lens providing focused illumination. Operates at a typical current of 1A with LED voltage ranging from 2 to 2.6V. Compact size of 20mm diameter and 3.85mm height suitable for versatile mounting.

Onboard driver enables constant voltage output and easy soldered connection installation. Designed to deliver typical luminous flux of 80 lumens with a power dissipation of 1.54W. Includes fixing holes compatible with M3 screws for secure attachment.

Secondary optics supplied to optimize light direction and intensity. Compliant with RoHS standard ensuring environmentally safe usage. Pre-wired with 200mm connecting wires for convenient integration. Suitable for general lighting, decorative, task, retail, and entertainment lighting applications.

Please ensure to install the LED array with a suitable heat sink to prevent overheating, which may cause damage or failure. Avoid using power supplies without current limiting as this may result in excessive current draw and damage the array.
