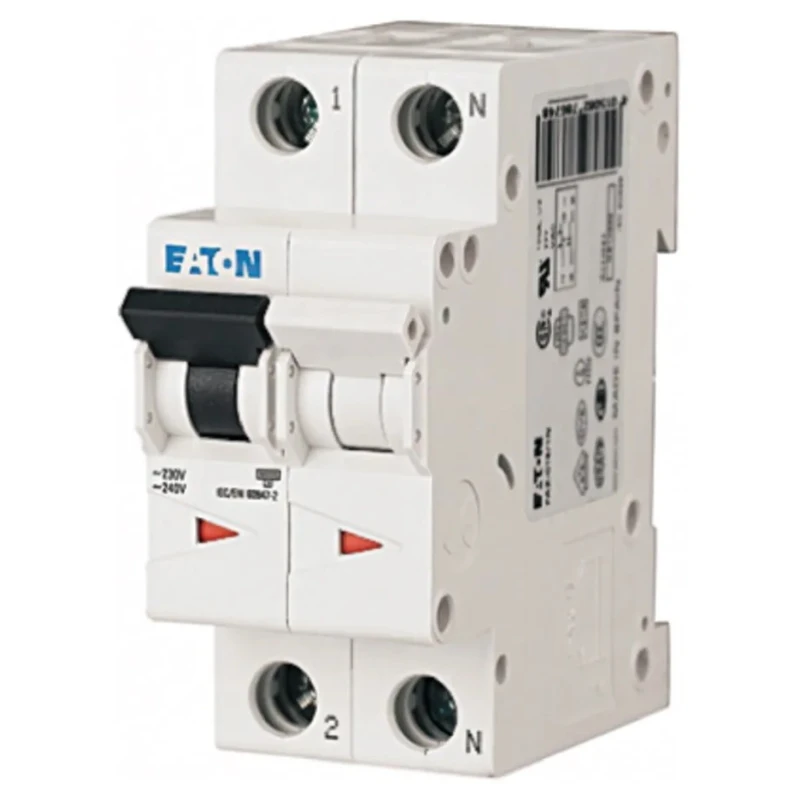

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 20A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Thermal-magnetic overcurrent protection for reliable circuit safety.
- Compact 17.5mm width fits DIN rail mount installations efficiently.
- 6 kA breaking capacity ensures resilient short circuit interruption.
- Trip-free mechanism prevents override of breaker trip function.
- Easy toggle switch operation with clear on/off indication.
- Finger-proof design enhances operator safety during handling.
- Compatible with Eaton xEffect series accessories for enhanced functionality.
- Suitable for electrical distribution boards and control circuits.
Product Description
Eaton FAZ6 miniature circuit breaker (model FAZ6) is a 1-pole device with a 20A current rating and Type C tripping characteristics, designed to operate efficiently at 400V AC with a breaking capacity of 6 kA. It provides fast short-circuit interruption reducing let-through electrical energy and protecting electrical circuits from overload damage.
This circuit breaker features thermal and electromagnetic release mechanisms and includes a trip-free actuator, which prevents the breaker from being held in the ON position when a fault occurs. Its compact 17.5 mm modular width and DIN rail mounting facilitate easy installation in distribution boards and control panels.
The FAZ6 series is finger-proof (IP20 rated) assuring safety during operation and maintenance. It features a toggle switch for simple manual reset and clear indication of contact position.
This device is perfectly suited for industrial, commercial, and residential electrical protection applications, including motor protection and control circuits. Eaton's xEffect series offers a wide range of MCBs with diverse protection characteristics.
Thermal-magnetic overcurrent protection for reliable circuit safety. Compact 17.5mm width fits DIN rail mount installations efficiently. 6 kA breaking capacity ensures resilient short circuit interruption. Trip-free mechanism prevents override of breaker trip function.
Easy toggle switch operation with clear on/off indication. Finger-proof design enhances operator safety during handling. Compatible with Eaton xEffect series accessories for enhanced functionality. Suitable for electrical distribution boards and control circuits.
The product complies with multiple relevant standards including IEC 898 and IEC 60947-2, ensuring dependable performance in diverse industrial and commercial settings. Its robust thermal magnetic tripping mechanism offers superior protection against both overloads and short circuits, making it an ideal choice for safe and effective electrical installations.
Explore more Miniature Circuit Breakers and other Eaton electrical protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton FAZ6 miniature circuit breaker has a current rating of 20A.
It has a breaking capacity of 6 kA, ensuring effective short circuit interruption.
The rated AC voltage for the FAZ6 is 400V AC.
The FAZ6 features Type C tripping characteristics, which trip instantaneously when the current is 5 to 10 times the rated current.
This model has a compact width of 17.5 mm, making it suitable for DIN rail mounting.
The Eaton FAZ6 is designed for DIN rail mounting, facilitating easy installation.
The depth of this circuit breaker is 62 mm.
It features a trip-free mechanism that prevents the breaker from being held in the ON position during a fault, and has a finger-proof design for operator safety.
This circuit breaker is suitable for electrical distribution boards and control circuits, including motor protection.
The IP rating for this model is IP20, indicating it is finger-proof and safe for handling during operation.
It uses a toggle switch as the reset actuator, allowing for simple manual resetting.
This miniature circuit breaker complies with IEC 898 and IEC 60947-2 standards, ensuring reliable performance.
