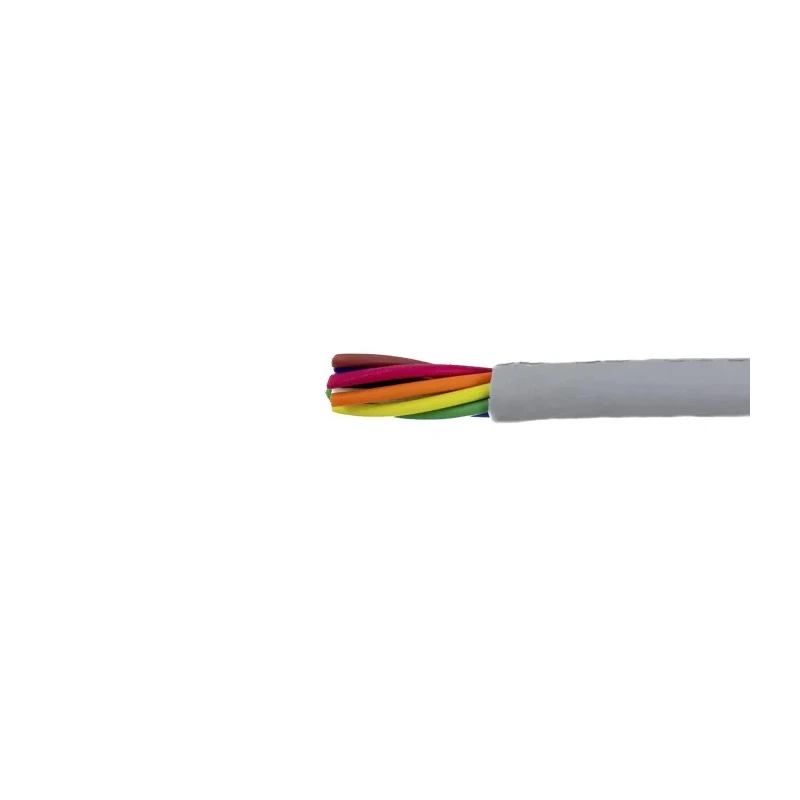

Alpha Wire Pro-Tekt Series Data Cable 8 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B953081 GE321

Alpha Wire B953081 GE321 Pro-Tekt Series Data Cable is a high-quality 8-core cable with 0.23 mm² cross-sectional area and a 50 meter length, featuring a grey polyvinyl chloride sheath for robust protection. This cable is constructed with stranded tin copper conductors for enhanced flexibility and mechanical strength, suitable for demanding industrial, automation, and electrical applications.

The cable operates over a wide temperature range from -30°C to +105°C, making it suitable for harsh environments. The flame retardant PVC jacket is resistant to UV light and oils, ensuring durability and safety in industrial settings. With a nominal outside diameter of 5.44 mm and jacket thickness of 0.81 mm, the cable fits well in confined spaces.

The Pro-Tekt series includes unshielded cables that are ideal for controlled environments requiring low-noise data transmission. Core colors include black, brown, red, orange, yellow, green, blue, and violet, easing installation and maintenance.

Certifications such as CE, CSA Certified, and UL approvals validate the cable's adherence to recognized safety and quality standards. It supports a maximum operating voltage of 300 V, suitable for power equipment integration in diverse industries including industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.

The Alpha Wire Pro-Tekt cable’s stranded tinned copper wiring also enables straightforward connection to switches, plugs, sockets, and connectors. Its flame retardant properties, abrasion resistance, and robust stranded conductor structure make it a reliable choice for demanding applications requiring both power and data transmission in a single cable.

The cable has stranded tin copper conductors offering flexibility and corrosion resistance. Operates reliably between -30°C and 105°C temperature range. The jacket is made of oil and UV resistant PVC material ensuring long life in harsh environments.

Nominal outside diameter is 5.44 mm with a jacket thickness of 0.81 mm. Meets multiple certifications including CE, CSA, and UL standards for safety and performance. This unshielded Data Cable is suitable for demanding industrial automation and electronics applications.

Color-coded cores facilitate easy installation and identification. The cable’s design supports operating voltage up to 300 V with excellent abrasion resistance. Explore wider industrial and electrical cable solutions at EnvMart for reliable power and data transmission products.
