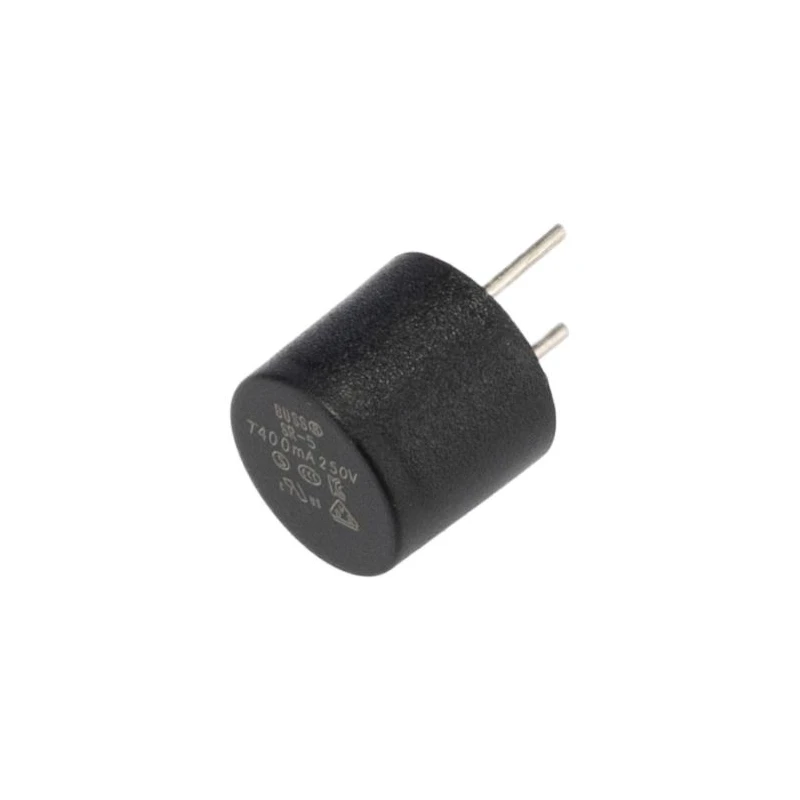

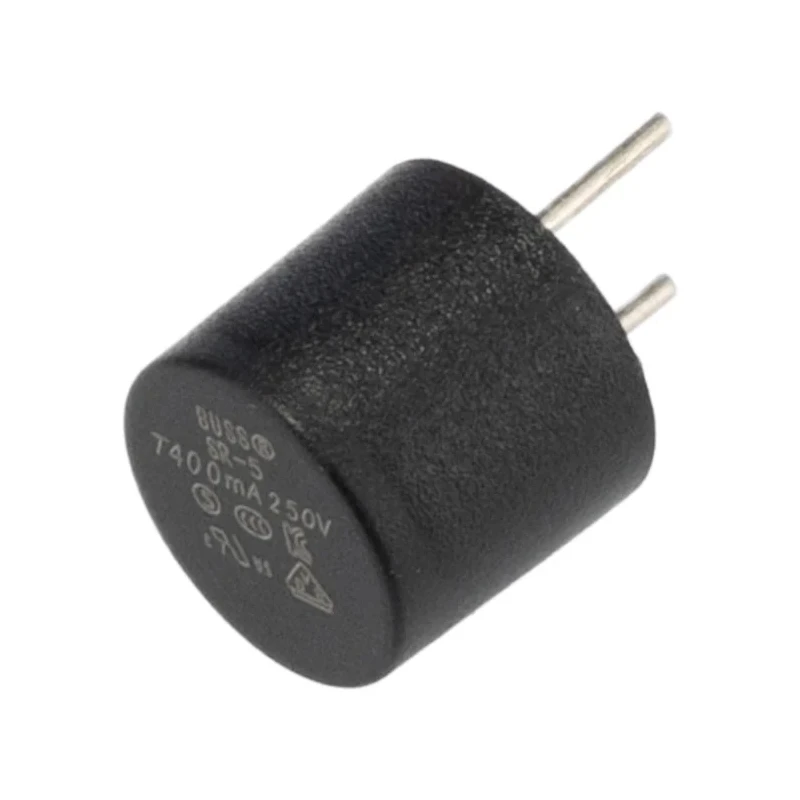

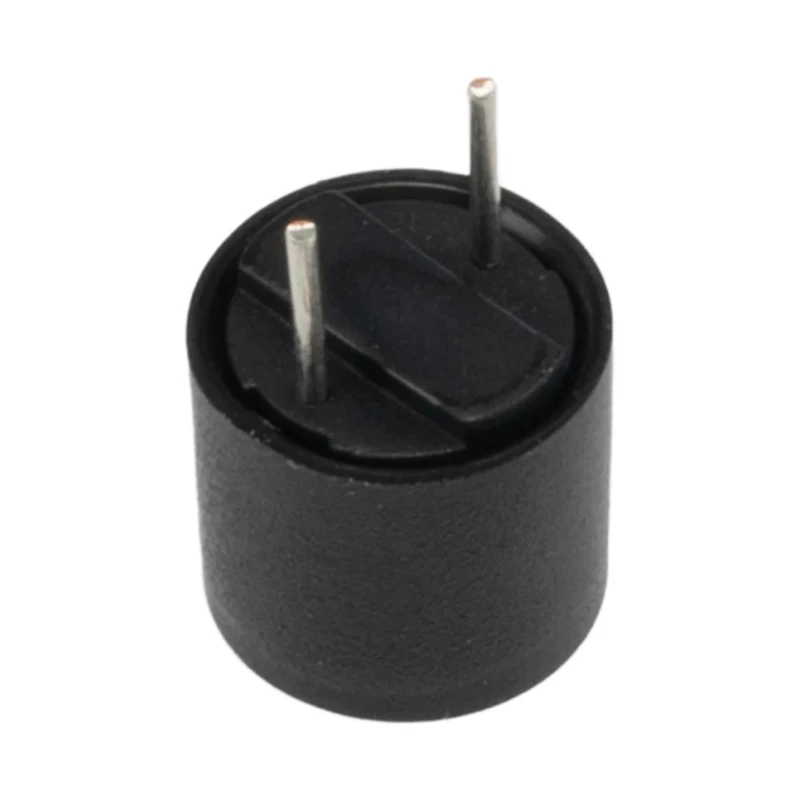

Eaton Radial Fuse, Time Delay T Characteristics, 400mA, 250V AC, 35A Breaking Capacity SR-5-400MA-BK
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 7.6mm |
| Length | 7.37mm |
| Model | SR-5-400MA-BK |
| Width | 8.5mm |
| Current Rating | 400mA |
| Series | SR5 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Lead Length | 4.3mm |
| Breaking Capacity | 35A |
| Lead Diameter | 1mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- The 400mA current rating protects sensitive electronic circuits effectively.
- Time-delay T characteristic allows tolerance to brief inrush currents.
- Rated for 250V AC voltage, suitable for mains electrical applications.
- High breaking capacity of 35A ensures safety against substantial fault currents.
- Compact cylindrical design with dimensions 7.37mm length and 8.5mm diameter optimizes space on PCB layouts.
- Radial through-hole leads with 1mm diameter enable easy PCB mounting and soldering.
- Operates reliably between -40°C to +125°C, suitable for demanding environments.
- Compliant with international standards including VDE, IEC 60127-3, PSE, and RoHS.
Product Description
The Eaton SR-5-400MA-BK is a precision-engineered radial fuse designed for time-delay protection in low-current electrical and electronic circuits. Featuring a 400mA current rating and a 250V AC voltage capacity, this fuse is ideal for safeguarding sensitive equipment and providing steady current protection without nuisance trips caused by inrush currents.
Constructed with a compact cylindrical body measuring 7.37mm in length and 8.5mm in diameter, the fuse optimizes space on printed circuit boards, making it suitable for applications requiring low-profile components. Its radial leads with a 1mm diameter facilitate through-hole mounting and straightforward soldering.
This Fuse operates effectively across a wide temperature range from -40°C to +125°C, ensuring reliable performance in harsh industrial, commercial, and laboratory environments. The 35A breaking capacity supports interruption of substantial fault currents, enhancing system safety.
Eaton SR-5-400MA-BK complies with recognized standards such as VDE, IEC 60127-3, PSE, and RoHS, confirming both quality and environmental responsibility.
Common applications include use in mains-powered control modules subject to inrush currents, power supplies in automation and instrumentation, consumer appliance circuits requiring delayed protection actions, and PCB-mounted protection in electrical panels.
The 400mA current rating protects sensitive electronic circuits effectively. Time-delay T characteristic allows tolerance to brief inrush currents. Rated for 250V AC voltage, suitable for mains electrical applications. High breaking capacity of 35A ensures safety against substantial fault currents.
Compact cylindrical design with dimensions 7.37mm length and 8.5mm diameter optimizes space on PCB layouts. Radial through-hole leads with 1mm diameter enable easy PCB mounting and soldering. Operates reliably between -40°C to +125°C, suitable for demanding environments.
Compliant with international standards including VDE, IEC 60127-3, PSE, and RoHS.
This product is an essential component for industrial, automation, electrical, laboratory, and manufacturing applications where precision circuit protection is critical. Explore the Eaton portfolio and find compatible protective devices at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton SR-5-400MA-BK fuse has a current rating of 400mA, which effectively protects sensitive electronic circuits.
This model is rated for 250V AC, making it suitable for mains electrical applications.
The breaking capacity of the Eaton SR-5-400MA-BK is 35A, ensuring safety against substantial fault currents.
This fuse has a compact cylindrical design with a length of 7.37mm and a diameter of 8.5mm, optimizing space on PCB layouts.
It operates reliably between -40°C to +125°C, suitable for demanding environments.
This unit features radial through-hole leads with a diameter of 1mm, which facilitate easy PCB mounting and soldering.
It features a time-delay T characteristic, allowing tolerance to brief inrush currents without nuisance trips.
The Eaton SR-5-400MA-BK complies with VDE, IEC 60127-3, PSE, and RoHS standards, confirming its quality and environmental responsibility.
Common applications include mains-powered control modules, power supplies in automation, and consumer appliance circuits requiring delayed protection actions.
The lead length is 4.3mm, providing adequate length for effective soldering on PCBs.
This fuse belongs to the SR5 series, which is designed for precision circuit protection in low-current applications.
The country of origin for this fuse is China.
