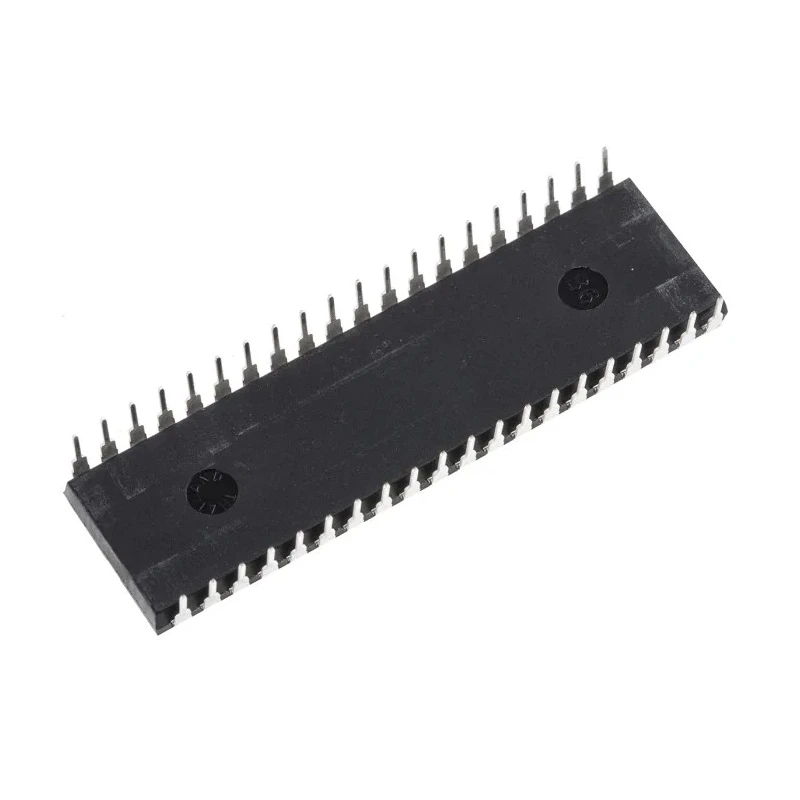

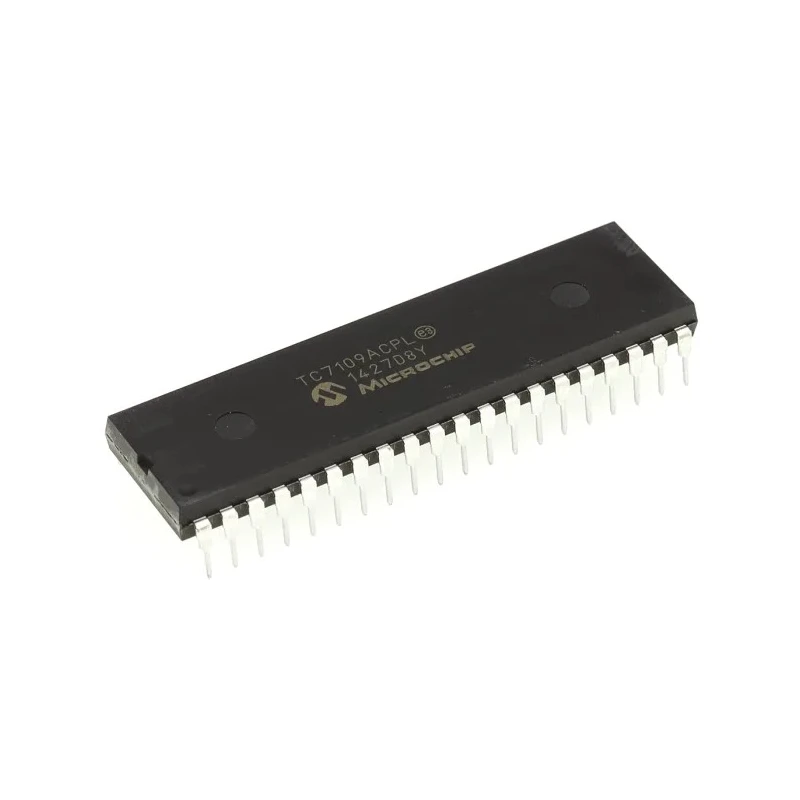

Microchip 12-bit + Sign Dual Slope Analogue to Digital Converter ADC 0.01 ksps 40-Pin PDIP TC7109ACPL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12-bit + Sign |
| Brand | Microchip |
| Height | 6.25mm |
| Length | 52.38mm |
| Model | TC7109ACPL |
| Mount Type | Through Hole |
| Sampling rate | 0.01ksps |
| Series | TC7109A |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Interface Type | Parallel |
| Architecture | Dual Slope |
| Pin Count | 40 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -5V |
| Number of ADCs | 1 |
Key Features
- Features a dual slope architecture for high accuracy conversion.
- Supports a single ADC channel with voltage input type.
- Operates in a temperature range of 0°C to 70°C.
- Through-hole mounting style with a parallel interface for easy integration.
- Operates with supply voltage ranging from -5V to 5V.
- Compact dimensions with length 52.38mm and height 6.25mm.
- Compatible with various electronic and industrial applications requiring precise analogue to digital conversion.
- Package designed as a 40-pin PDIP suitable for PCB mounting.
Product Description
Microchip TC7109ACPL is a high-precision 12-bit + Sign Dual Slope Analogue to Digital Converter (ADC) designed for efficient and accurate voltage signal digitization. The device operates at a sample rate of 0.01 ksps, making it ideal for applications that require high resolution and stable measurements.
This ADC features a dual slope architecture, which enhances noise rejection and conversion accuracy, making it suitable for measurement and instrumentation in industrial, laboratory, and embedded system environments.
Designed for through-hole mounting, the TC7109ACPL utilizes a 40-pin PDIP package, facilitating easy installation on a variety of printed circuit boards. The device supports a parallel interface, allowing direct communication with microcontrollers and other digital systems.
Operating within a temperature range of 0°C to 70°C and a supply voltage ranging from -5V to 5V, the ADC accommodates typical operating conditions found in industrial and electronic component applications.
The compact dimensions of length 52.38mm and height 6.25mm ensure a moderate footprint suitable for multiple integration environments. This device is not automotive-standard certified and does not have specific approvals, emphasizing general-purpose industrial use.
Dual slope architecture facilitates accurate and noise-resistant analogue to digital conversion. Single ADC channel with voltage input type supports diverse signal measurement needs. Through-hole PDIP package simplifies mounting and replacement in PCB designs.
Parallel interface offers straightforward communication with embedded systems. Robust operating temperature and supply voltage ranges ensure device reliability in common industrial environments. Compact form factor and pin count suited for a wide range of electronic component assemblies.
Ideal for use in instrumentation, data acquisition, and measurement systems across laboratory and industrial domains. Microchip brand ensures quality and support for embedded and electronic design innovations. Explore more Microchip semiconductors and Analogue to Digital Converters in the Electronics & Electricals category at EnvMart to enhance your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC7109ACPL features a resolution of 12-bit + Sign, allowing for high precision in voltage signal digitization.
This model operates within a temperature range of 0°C to 70°C, making it suitable for various industrial applications.
The sampling rate of the TC7109ACPL is 0.01 ksps, which is suitable for applications requiring stable measurements.
The TC7109ACPL supports a voltage input type, accommodating diverse signal measurement needs.
The dual slope architecture enhances noise rejection and conversion accuracy, making it ideal for measurement and instrumentation applications.
This ADC comes in a 40-pin PDIP package and features a through-hole mounting style for easy installation on PCBs.
The device operates with a supply voltage ranging from -5V to 5V, ensuring compatibility with typical industrial environments.
The TC7109ACPL utilizes a parallel interface, allowing direct communication with microcontrollers and other digital systems.
The dimensions of this model are 52.38mm in length and 6.25mm in height, providing a compact footprint for integration.
This ADC supports a single ADC channel, making it suitable for applications that require precise analogue to digital conversion.
This model is ideal for use in instrumentation, data acquisition, and measurement systems across laboratory and industrial domains.
The TC7109ACPL is manufactured in India, reflecting its origin in the semiconductor industry.
