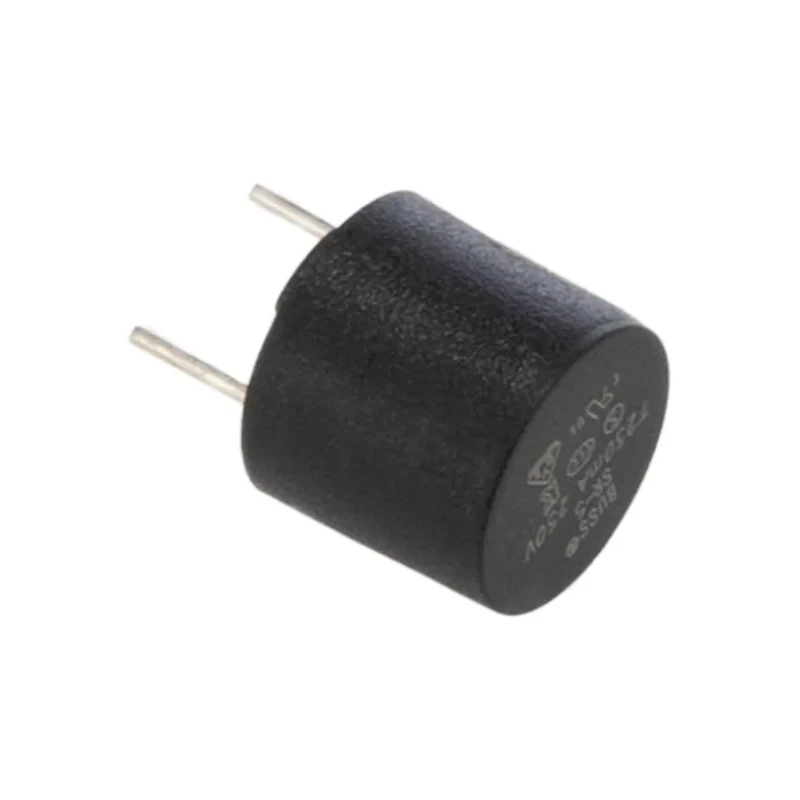

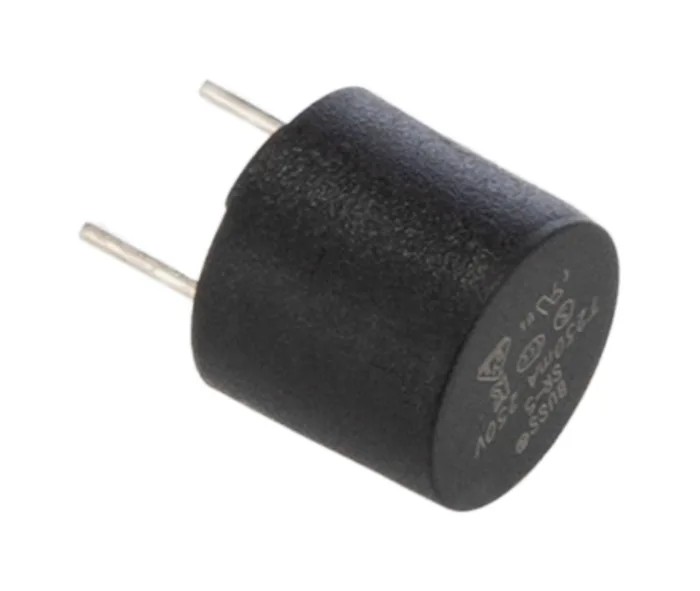

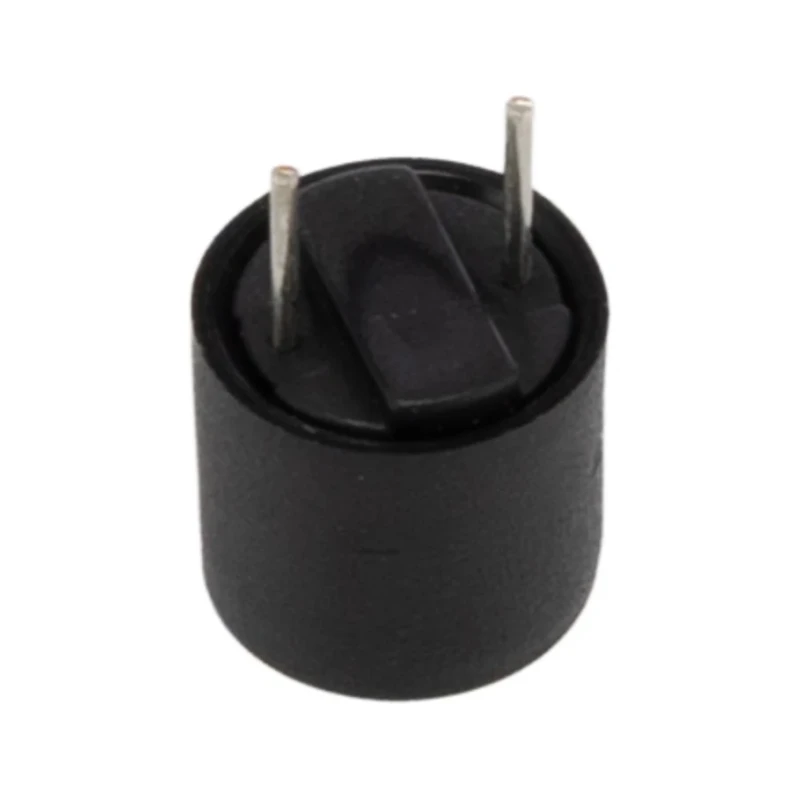

Eaton Non-Resettable Time Delay Radial Fuse 250mA 250V AC SR-5-250MA-BK
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 7.6mm |
| Length | 7.37mm |
| Model | SR-5-250MA-BK |
| Width | 8.5mm |
| Current Rating | 250mA |
| Series | SR5 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Lead Length | 4.3mm |
| Breaking Capacity | 35A |
| Lead Diameter | 1mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
| RS PRO Non-Resettable Fuse, Radial 250mA, 250V acBrand | RS PRO |
| RS PRO Non-Resettable Fuse, Radial 250mA, 250V acRS Stock No. | 611-0361Brand: RS PRO |
Key Features
- Time delay fuse with high breaking capacity of 35A at 250VAC.
- Radial lead orientation suitable for PCB mounting.
- Thermoplastic polyamide body with high soldering heat resistance of 260°C.
- Operating temperature range from -40°C to 85°C for reliable performance.
- High inrush withstand capability ensuring protection against transient surges.
- Complies with international standards including IEC 60068-2-20 and IEC 60127-3.
- Compatible with leaded and lead-free reflow and wave soldering processes.
- Ideal for electronic and PCB overcurrent protection applications.
Product Description
Eaton SR-5-250MA-BK Non-Resettable Time Delay Radial Fuse rated at 250mA current and 250V AC voltage is designed for effective overcurrent protection in electronic circuits and PCB applications.
This fuse features a time delay characteristic, which allows it to tolerate temporary inrush currents without nuisance blowing, making it ideal for sensitive electronic equipment protection. The radial lead orientation facilitates easy PCB mounting and wiring.
Constructed with a thermoplastic polyamide body, it offers robustness and high soldering heat resistance up to 260°C for 10 seconds maximum, compatible with leaded and lead-free soldering processes. The fuse operates reliably within a temperature range of -40°C to 85°C, accommodating a wide variety of industrial and electronic environments.
Its compact size with dimensions approximately 7.37mm in length, 8.5mm in width and diameter, and 7.6mm in height makes it suitable for dense PCB layouts. Moreover, it boasts a high breaking capacity of 35A at 250VAC, providing strong protection against fault currents and transient surges.
Certified to international standards including IEC 60068-2-20, IEC 60127-3, VDE, RoHS, and PSE, this fuse assures quality and reliability for industrial, laboratory, manufacturing, and commercial electronic applications.
Time delay fuse with 35A breaking capacity at 250VAC. Radial leads for PCB mounting with 1mm lead diameter and 4.3mm lead length. Operating temperature range from -40°C to 85°C. Thermoplastic polyamide body construction.
High soldering heat resistance at 260°C, 10 seconds maximum. Complies with IEC 60068-2-20, IEC 60127-3, VDE, RoHS, and PSE standards. Ideal for electronic circuit protection and PCB applications. Formerly known as Bussmann SR-5 series fuse.
Explore Eaton fuses and other quality circuit protection products in EnvMart's Electronics & Electricals category for reliable industrial and commercial solutions.
Explore more products in our Non-Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton SR-5-250MA-BK fuse has a current rating of 250mA.
This fuse is rated for a maximum voltage of 250V AC.
The fuse has a breaking capacity of 35A at 250VAC.
The dimensions of the fuse are approximately 7.37mm in length, 8.5mm in width, and 7.6mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
The fuse features a radial lead orientation suitable for PCB mounting.
The fuse is constructed with a thermoplastic polyamide body, which offers high soldering heat resistance.
Yes, it is compatible with both leaded and lead-free reflow and wave soldering processes.
It complies with international standards including IEC 60068-2-20, IEC 60127-3, VDE, RoHS, and PSE.
This model is ideal for electronic circuit protection and PCB applications.
The lead diameter is 1mm, and the lead length is 4.3mm.
The fuse has a time delay characteristic, allowing it to tolerate temporary inrush currents without nuisance blowing.
